OnCrawl: The Most Prestigious Advanced Technical SEO Crawler

OnCrawl is the world’s most prestigious Technical SEO Crawler that scans a website with a single click, reports technical SEO errors and needs in a data-driven manner, visualizes and provides insights needed by SEO Projects, and provides live tracking with Data Studio. Read the most detailed Technical SEO Crawler Review as it has ever been written.

OnCrawl's Report View
OnCrawl’s SEO Crawl Analysis Report Quick View. A General “Header” View from OnCrawl’s Craw Insights for a Website.

During this review, we also will focus on Technical SEO Elements along with On-Page SEO Elements and their definitions, importance, and functions through OnCrawl’s visualizations and data extracting systems. We will perform our review over one of the biggest Insurance Aggregators of Turkey, which lost the 6 May Core Algorithm update 6 months ago in 2020. Focusing on a website that has lost a core algorithm update can be more useful for our review’s educational side in terms of Technical SEO, since the core algorithm updates and Technical SEO are connected to each other on so many levels.

Thus, if you are not familiar with Technical SEO Terms and Google’s Algorithmic Decision-trees, examining OnCrawl’s site crawling and understanding methodology can be a good start point for every level of SEO enthusiasts.

Let’s begin our first crawl with an example and OnCrawl’s detailed Crawl Configuration that gives a chance for adjusting crawl style and purpose according to the unique SEO Cases.

Contents of the Article show

How to Configure a Crawl in OnCrawl’s Crawl Configuration Settings and Options

To configure crawl settings in OnCrawl, there are multiple options from the crawl speed to the integrating log files along with custom extractions.

Some of the OnCrawl Crawl Settings and Options are below.

  • Start URL
  • Crawl Limits
  • Crawl Bot
  • Max Crawl Speed
  • Crawler Behavior
  • URL With Parameters
  • Subdomains
  • Sitemaps
  • Crawler IP Address
  • Virtual Robots.txt
  • Crawl JS
  • HTTP Headers
  • DNS Override
  • Authentication
  • SEO Impact Report
  • Ranking Report
  • Backlink Report
  • Crawl over crawl
  • Scraping
  • Data Ingestion
  • Export to

Before proceeding more, we can give some details about crawl configuration options to make them more clear.

OnCrawl Crawl Configuration Options: Start URL

Start URL is determining the starting URL of the crawl. In the Start URL Section, you may choose to crawl only a listed URL from a domain or you may choose to explore, extract, and crawl every URL on a domain.

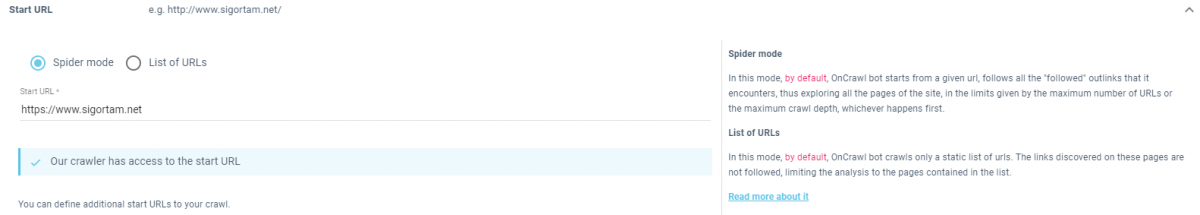

Start URL for the SEO Crawl
You can choose “Start URL” for the SEO Crawl.

Why is “Start URL” important?

Choosing which URLs to be crawled and where to begin crawling can give the opportunity to crawl for a specific purpose and it can save time. You can crawl only for “product pages” or only for “blog” pages with a specific string within it.

OnCrawl Crawl Configuration Options: Crawl Limits

Crawl Limits is for determining the limit of URL amount along with their distance from the homepage to be crawled. It might vary from package to package that you have, but all packages of OnCrawl have enough URL Limit for managing an SEO Project.

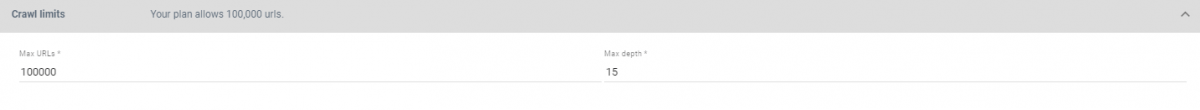

SEO Crawl Limits
SEO Crawl Limits View from OnCrawl’s Crawl Configuration Section.

Why is “Crawl Limits” important?

Choosing URL Depth and URL Amount as a limit can save time and also give the possibility to make target-oriented crawls. To see a quick summary of a category and its general problems, a certain amount of URL from a certain depth can be enough.

SEO Crawl Max Depth
You also can determine the “Max Depth” to be crawled from the same section.

OnCrawl Crawl Configuration Options: Crawl Bots

Crawl Bots is the configuration for determining the crawler’s character according to the device type. Since, next year in March 2021, Google will start to use “mobile-only indexing” instead of “mobile-first” indexing, the option for “Crawl as Mobile Bot” here is more important for technical SEO.

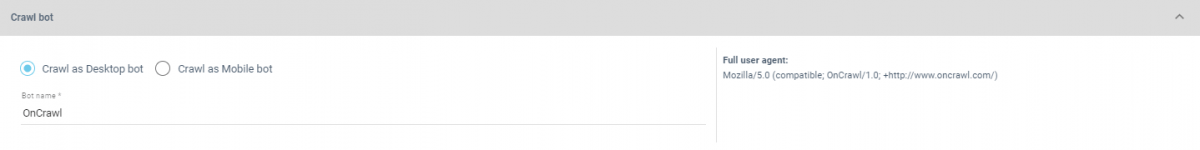

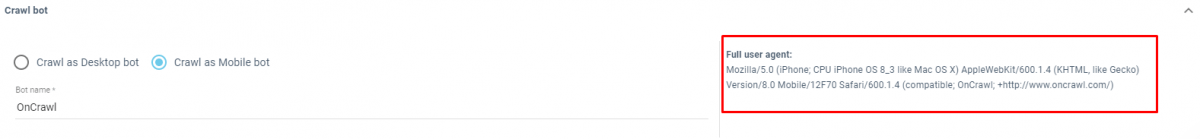

SEO Crawler User Agent
Crawler’s User Agents can be determined.

On the right side of the image, you may see the user-agent that will be used by OnCrawl during the crawling of the URL List or Domain that you have chosen.

Why is “Crawl Bots” important?

According to the device type, the viewport of the screen will change. Having both desktop and mobile bot options is important because internal links, page speed, status codes, the content amount can vary according to the device types. Being able to see and compare device-based differences is an advantage for SEO.

SEO Crawler User Agent
You can choose between desktop or mobile bot according to your need.

Also to make log analysis easier, you may change the bot’s name in the user agent.

OnCrawl Crawl Configuration Options: Max Crawl Speed

Max Crawl Speed is actually a rare configuration option for a Technical SEO crawler. Most of the SEO Crawlers do not care so much about the website’s server capacity, but OnCrawl tries to crawl one URL per second. It also has a calculator that says that crawling X amount of URL would take X amount of time.

To make OnCrawl’s crawl speed faster, you should validate that you are the owner of the domain so that the server’s situation can be your own responsibility during the crawl.

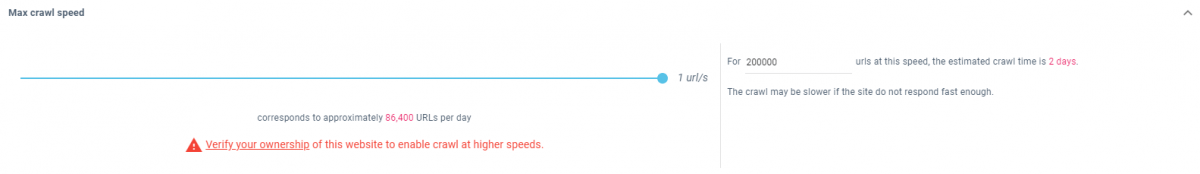

Crawl Speed
Crawl Speed can be adjusted with OnCrawl’s Crawl Configuration.

You also can make OnCrawl crawl one URL per 5 seconds. Having a fast crawler is an important trait, but having a responsible crawler is too.

Why is “Max Crawl Speed” important?

Max Crawl Speed is a metric that helps to protect the server’s health to respond to the actual users. Googlebot also has a similar configuration on the Google Search Console and Bingbot has another type of configuration for the timelines in the day.

OnCrawl Crawl Configuration Options: Crawler Behavior

Crawler Behavior Configuration Options are for determining the crawl launch’s personality, purpose, and style. Different crawler behaviors can be used for different types of technical SEO Analysis.

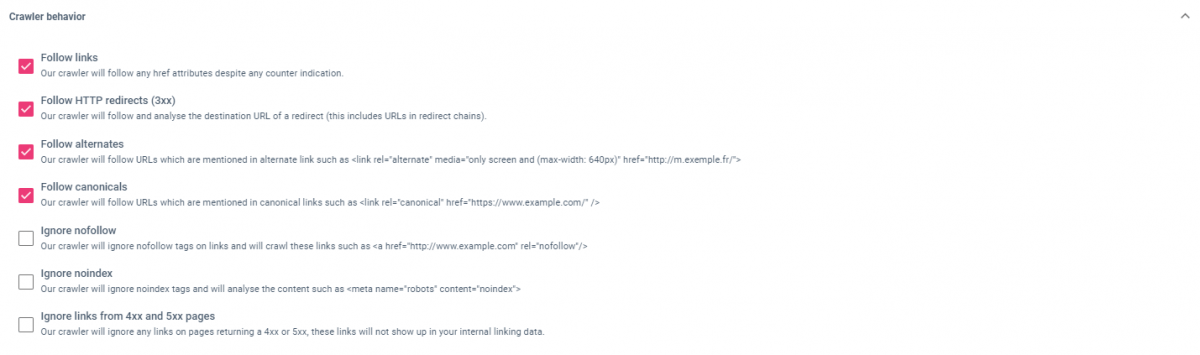

Crawler's Behavior
You can determine the crawler’s behavior.

The crawl behavior configuration options in OnCrawl are below.

  • Follow links
  • Follow HTTP redirects (3xx)
  • Follow Alternates
  • Follow Canonicals
  • Ignore Nofollow
  • Follow Canonicals
  • Ignore Nofollow
  • Ignore Noindex
  • Ignore Links from 4xx and 5xx pages

These crawler behavior options are easy to guess but we can explain them simply.

  • Follow Links: This option is for extracting and following any link in the after-DOM of the web page.

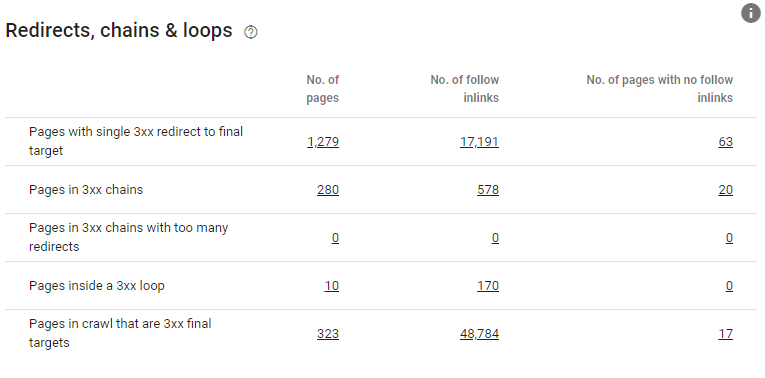

  • Follow HTTP Redirects (3xx): Googlebot stops after the 6th 301 redirects to follow the redirect chain. I am not sure what is the limit for OnCrawl’s crawler but according to the documentation, OnCrawl continues every redirection on the web page by including every 3xx variation of HTTP Status Codes.

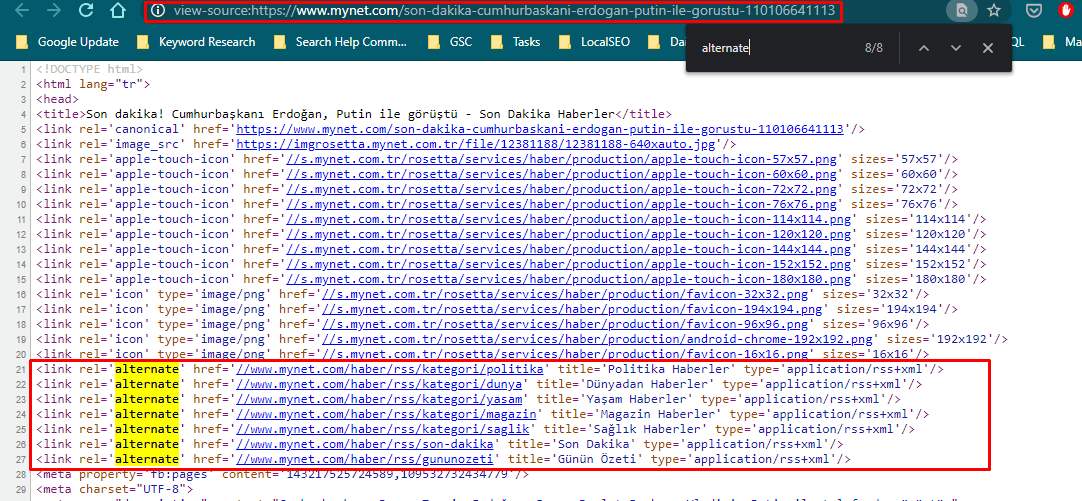

  • Follow Alternates: Every link with the “rel=’alternate’” attribute will also be followed. Especially in the old news and e-commerce sites, an SEO can come across these types of old link attributes such as “rel=’alternate’ media=’handheld’”. In such cases, OnCrawl can cover SEO’s inexperiences that causes time differences.
  • Follow Canonicals: Every URL in the canonical tag will be followed by the OnCrawl’s crawler.
  • Ignore Nofollow: It means that the OnCrawl’s crawler will crawl every URL with the “nofollow” attribute. Googlebot doesn’t listen to the “nofollow” attribute if the nofollowed link belongs to the same domain and some websites still use the “nofollow” attribute for internal links, for extracting those links and pages that include them, this can be a useful feature.
  • Ignore Noindex: this option will make the OnCrawl’s crawler follow and crawl every noindexed page with their own label. This is important because noindexed pages are not important for Googlebot, it even doesn’t render javascript on those pages. Thus, if there are important internal links that point to noindexed pages, you can explore these.
  • Ignore Links from 4xx and 5xx Pages: It means that OnCrawl’s crawler will ignore those links for the output of the crawl process. It is important because 4xx Pages and some 5xx pages can defy the output data, and most of the 4xx pages can be created because of a CMS error or site migration, etc… Keeping the valid situation’s data clean, it is a necessary option.

OnCrawl Crawl Configuration Options: URL With Parameters

URL Parameters are the addons in the URLs for special tasks such as searching, filtering, and grouping the data including “?s=term” or “?size=L”. URL Parameters can be used for grouping products, services, blog posts, and URL Parameters help users to find the information they seek easier thanks to the search bar or faceted navigation.

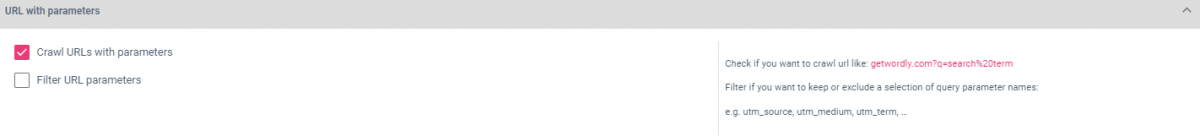

URL Parameters Configuration
Specifying URL Parameters Configuration for SEO Crawl.

Why are URL Parameters important for SEO based Web Site Crawling?

Extracting these URL Parameters and grouping them or filtering them can help an SEO to understand the web pages’ characters and functions. Imagine you can compare two web site’s parameters, which one has more parameters for the “shoe sizes” or “shoe prices” along with “shoe brands”?

Also, unnecessary URL Parameters can dirty the output data of the crawl process. And, you may want to learn how to categorize and interpret URL Parameters with Python.

OnCrawl Crawl Configuration Options: Subdomains

The subdomain crawling configuration option lets the crawler for crawling the subdomains of the targeted domain. A website can have multiple subdomains that may not be explored and encountered with a glimpse, OnCrawl’s crawler can extract these and integrate their general performance to the output data.

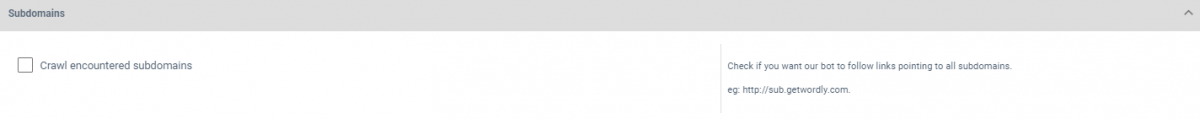

Subdomain Configuration for SEO Crawl
Subdomain Configuration for SEO Crawl.

Why are “Subdomains” important?

During my 5 years of SEO Experience, I have seen customers that they forget about their subdomains. I also know that some “shady” persons can create a subdomain for linking other websites from a domain without the permission of the website owner. Also, a subdomain can affect the main domain’s crawl budget, crawl quota, or general organic search performance. Exploring and grouping them according to their purposes for a Technical SEO is important.

OnCrawl Crawl Configuration Options: Sitemaps

A sitemap is one of the most important elements of Technical SEO. Sitemaps are being used for storing the URLs that are meant to be indexed by the Search Engine. A Sitemap should only contain the “canonical” URLs with 200 HTTP Status Code.

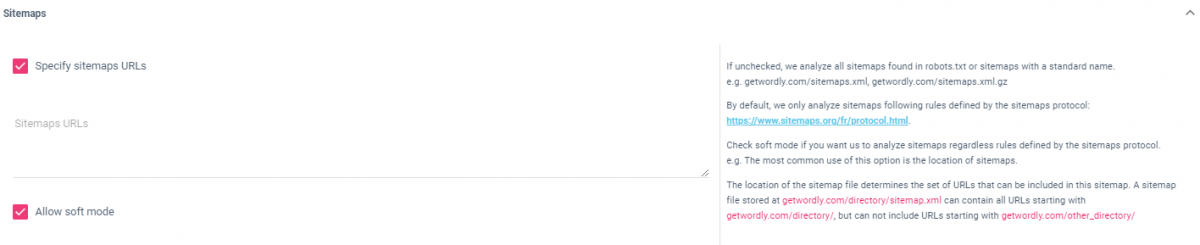

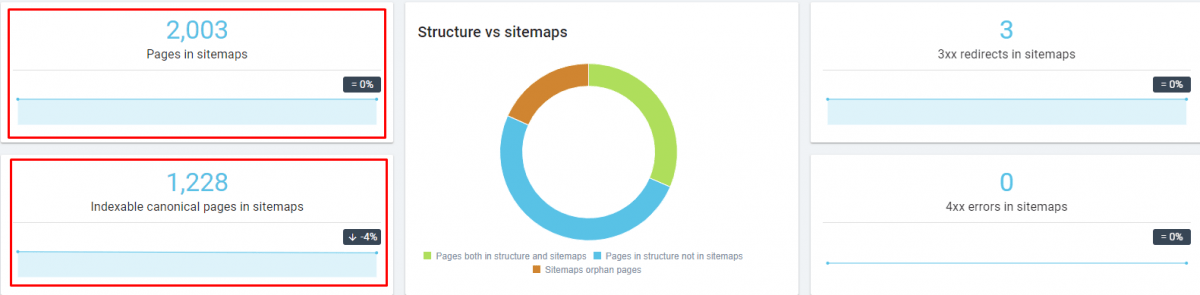

SEO Crawl
Specify Sitemap URLs for SEO Crawl.

Why is “Sitemaps” important?

Canonical Tags are also hints, not commands for Googlebot. So, using canonical tags in a correct way will prevent the Mixed Signals for crawling, indexing, and ranking algorithms of the Search Engine, every Technical SEO should check whether URLs in a sitemap have 200 Status Code, canonicalized and it is being indexed or not.

OnCrawl Crawl Configuration Options: Crawler IP Address

Crawler IP Address means the IP Address that OnCrawl’s crawler will be using during the crawling process of the targeted site. These IP Addresses are as below:


Why is “Crawler IP Address” important?

It will help to identify the OnCrawler’s crawlers’ hit during the crawl process in the log analysis. Also, some servers may block these IP Addresses during the crawling process as a security measurement. Thus, whitelisting these IP Addresses will secure the crawling process’s accurate output.

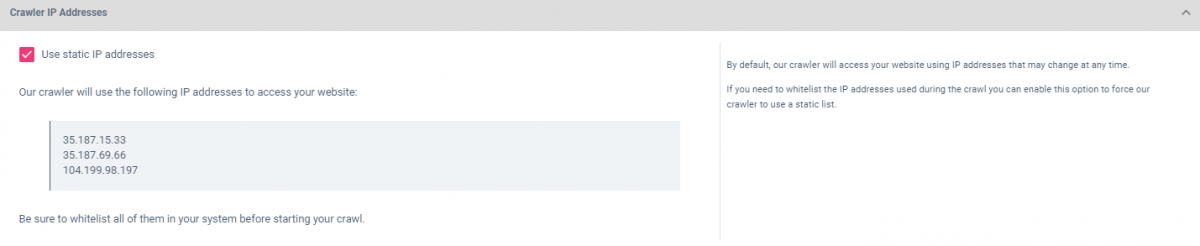

SEO Crawler IP Address.
You can specify the SEO Crawler’s IP Address.

OnCrawl Crawl Configuration Options: Virtual Robots.txt

Every SEO Crawler is also a kind of “scraper” and scraping a website without its consent can be “unethical”. Because of this important point, OnCrawl has some Extra Settings and Virtual Robots.txt is the first of these special features. Virtual Robots.txt is for crawling the web pages that are being disallowed by the actual robots.txt. To use it the website ownership should be verified like in the “Max Crawl Speed” section.

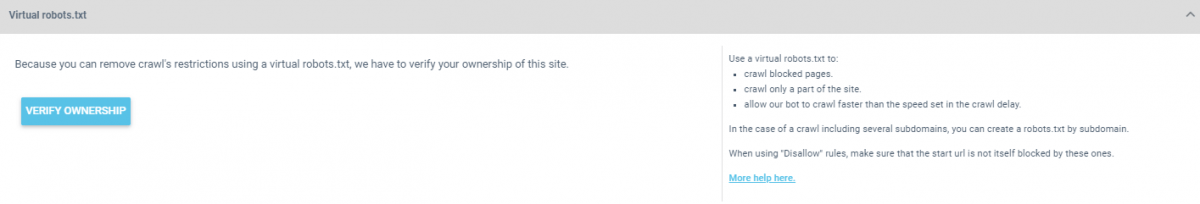

Virtual Robots.txt
Virtual Robots.txt for a better-focused SEO Crawl.

Why is Virtual Robots.txt is Important

In my experience, the “virtual robots.txt” crawler configuration is a unique feature for OnCrawl. It is important because any Technical SEO may want to see the character, potential, and situation of the disallowed URLs. Also, in Robots.txt files, “crawl rate” and “crawl delay” can be specified. These configurations can be changed for the OnCrawl by virtual Robots.txt

And, Virtual Robots.txt can be used also for limiting the OnCrawl’s crawlers for a specified site section so that the crawling time can be shortened while the crawl report can be focused on a specified target. This is especially useful for international sites such as “root-domain/tr/” and “root-domain/en/”.

As a related guideline, you may want to read the “How to verify test Robots.txt file with Python” guideline.

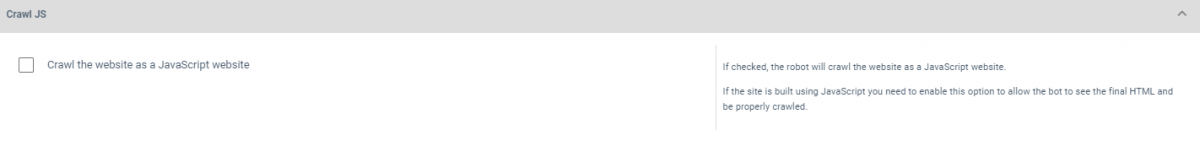

OnCrawl Crawl Configuration Options: Crawl Javascript

Until two years ago, Googlebot couldn’t render Javascript, which led Google SERP to become only non-Javascript oriented. Content including links and images that were being drawn by the Javascript couldn’t be seen by Googlebot in case you don’t use “dynamic rendering”. Today, Googlebot is evergreen and can render Javascript with the updated version of Chromium. This setting is for determining the Javascript should or shouldn’t render during the crawl process.

Enable Javascript for SEO Crawl.

Why is “Crawl Javascript” Important?

If you want to understand Googlebot’s vision, you will need an SEO Crawler that can render Javascript and measure its effect on the site. You can crawl a website first with Javascript enabled then with Javascript disabled versions so that you may see the effect of Javascript on the page’s content, navigation, links, and crawl time.

Thus, you may calculate your “Crawl Budget” and “Rendering-dependency” for SEO Performance.

OnCrawl Crawl Configuration Options: HTTP Headers

HTTP Headers are one of the other important aspects of Search Engine Optimization. HTTP Headers can determine a web page’s content’s variation to be fetched and also it can affect the security along with the web page loading time.

Why is “HTTP Headers” Important?

Determining different Request Headers for a Crawler is an advantage and this is also a rare special. By using Request Headers, you may try to see different behavior patterns of a website. You may use “cache-control”, “vary” or “accept-encoding” to see and measure the total crawl time of a website.

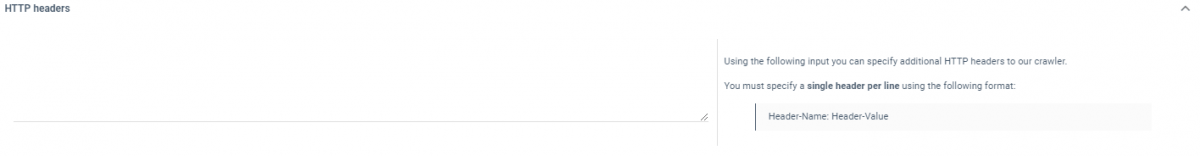

HTTP Headers for SEO Crawl
Determine HTTP Headers for SEO Crawl.

OnCrawl Crawl Configuration Options: DNS Override

By writing a DNS Override, crawling different servers of the same website can be possible.

Why is “DNS Override” Important?

It is important because a website’s content can change from server to server. Imagine you have five different robots.txt files for every server or imagine you don’t have some products and categories for some of the servers. This also helps to crawl different servers for the same website sections for the different locations.

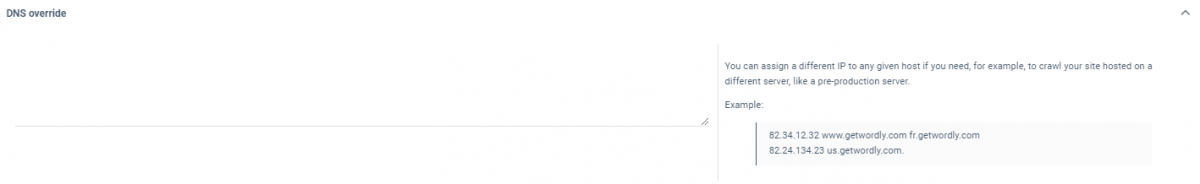

DNS Override SEO Crawl
DNS Override for SEO Crawl.

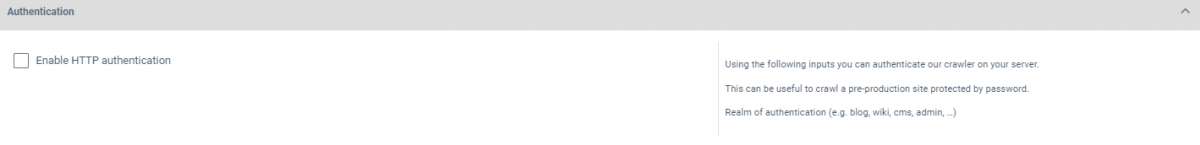

OnCrawl Crawl Configuration Options: HTTP Authentication

HTTP Authentication configuration option is for enabling the OnCrawl’s crawler to crawl a pre-production version of the website such as a test website or re-design version of a website.

Why is HTTP Authentication important?

Sometimes crawling a website for logged-in users to scrape “stock information”, “prices”, “page speed” and “recommended products” can be useful. Also, crawling a test site and a face-lift version of a website can be useful for SEO.

SEO Crawl
HTTP Authentication SEO Crawl

OnCrawl Crawl Configuration Options: SEO Impact Report

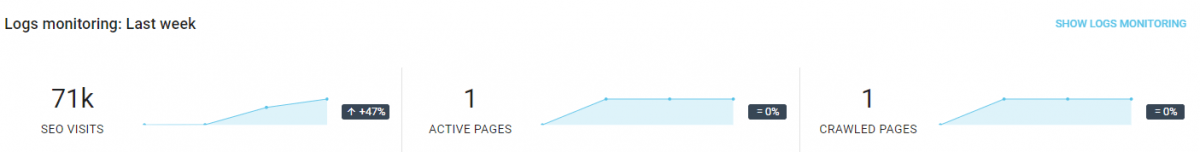

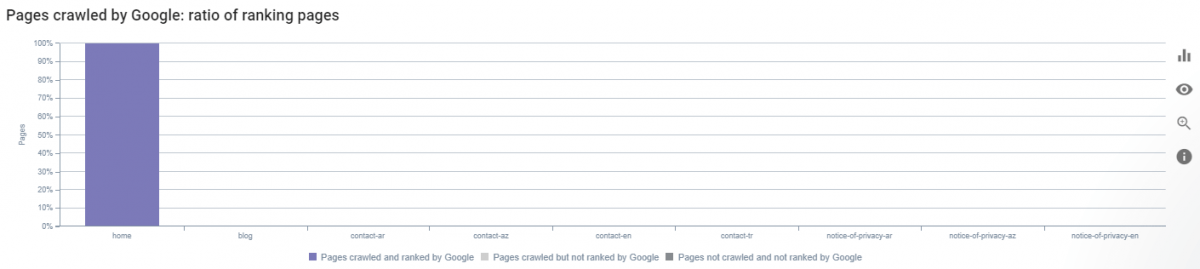

SEO Impact Report is another rare and important feature for OnCrawl’s crawling technology and SEO Analysis. Crawling a website is important but also combining Google Analytics, Googlebot Hit Log Information, AT Internet Analytics and Adobe Analytics.

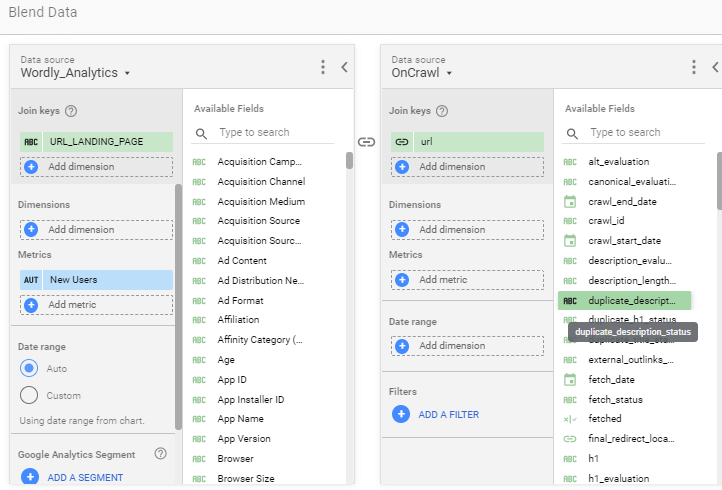

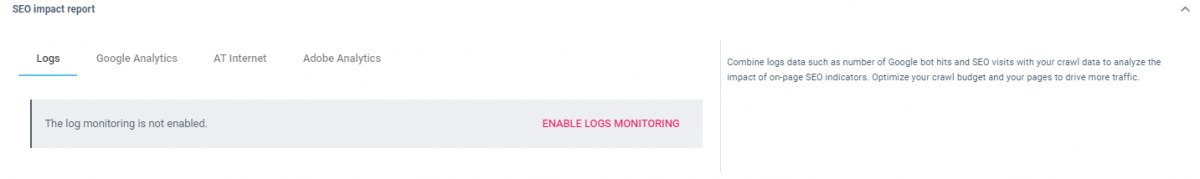

SEO Crawl Data Blending
Logs, Analytics, and more can be integrated into SEO Crawl.

Why is SEO Impact Report Important?

This is an important task for a Crawler. The pages with zero click for a month, pages with zero Googlebot hit, pages with most internal links with less organic traffic potential or pages with high bounce rate and slow page speed, etc. Every kind of data combination and correlation related to the SEO and UX can be extracted via the “SEO Impact Report” on OnCrawl.

And, a “crawl-based” audit only can see a website via its own elements, in other words, site-related elements. SEO Impact Report lets us use every possible data point for SEO to understand a website’s situation in terms of SEO.

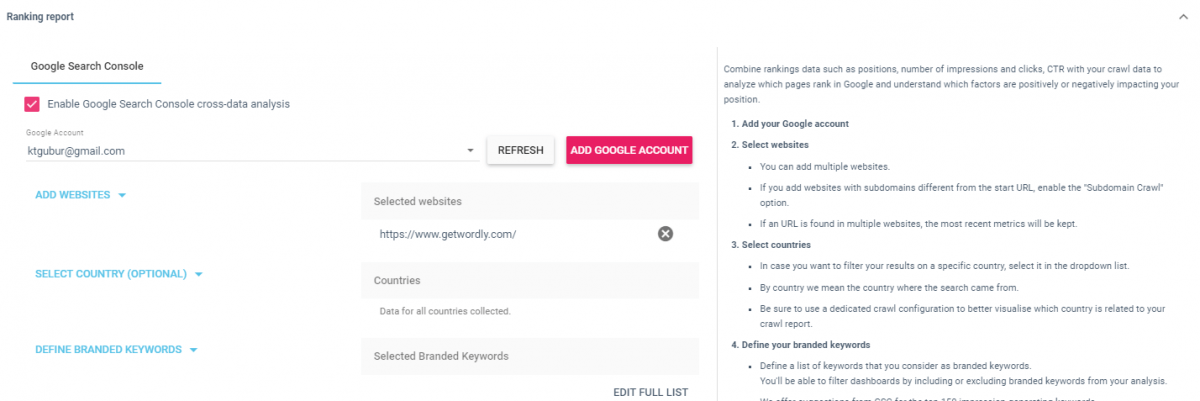

OnCrawl Crawl Configuration Options: Ranking Report

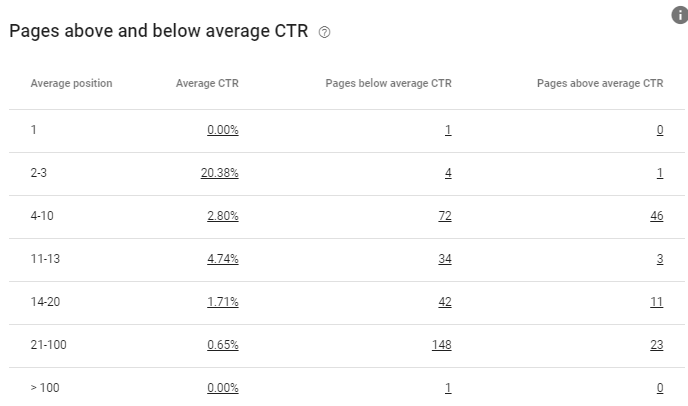

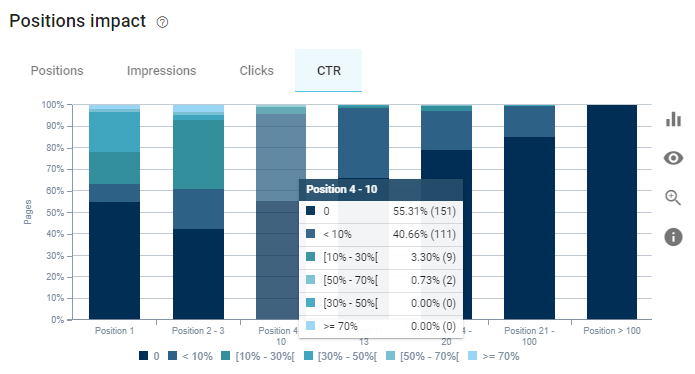

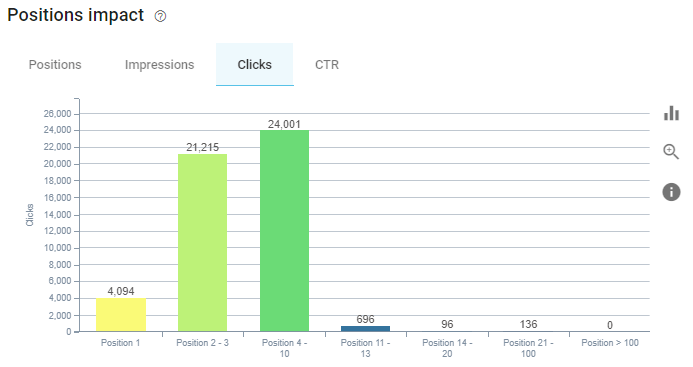

Similar to SEO Impact Report, Ranking Report is for combining the Google Search Console Data with the crawl process. It gives the possibility for filtering websites, web site categories, determining branded queries, and also filtering the countries.

Why is the “Ranking Report” Important?

Combining crawl data, log file analysis, structured data, and its effect on CTR, Google Analytics, and Google Search Console with “branded” queries for targeted geographies and directories or subdomains is useful. To see Google’s algorithms’ decision tree and their semantic ranking behaviors, create a better user-friendly website, and compare your website with competitors’ websites can be a more efficient way thanks to the SEO Ranking configuration option. In the Ranking Report, you can observe any kind of SEO-based possible data correlation, causation, and signal related to the Organic Search Algorithms. For instance, the effect of structured data can vary according to the web page types or query types, and you might think to change them by observing their effect with a more detailed vision, via OnCrawl.

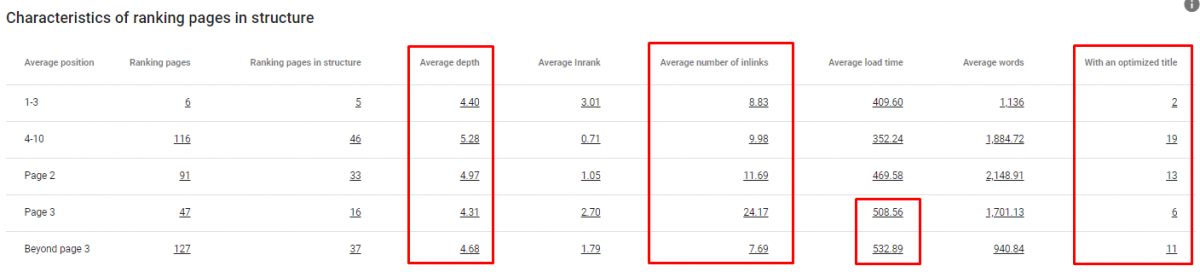

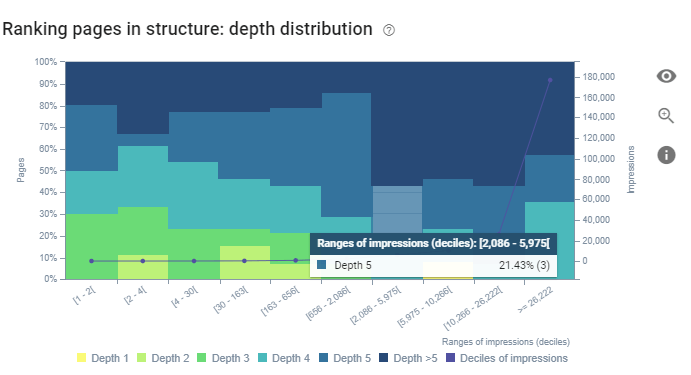

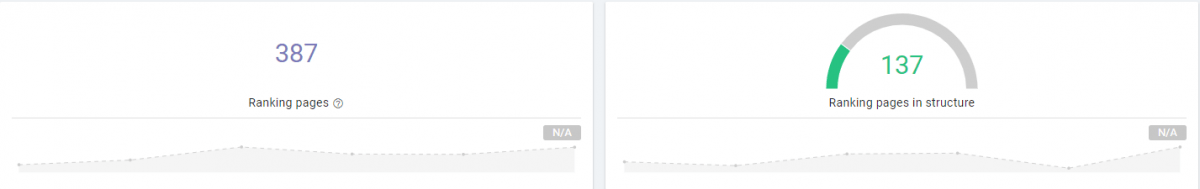

Ranking Report for SEO Crawl
Ranking Report Correlation for SEO Crawl.

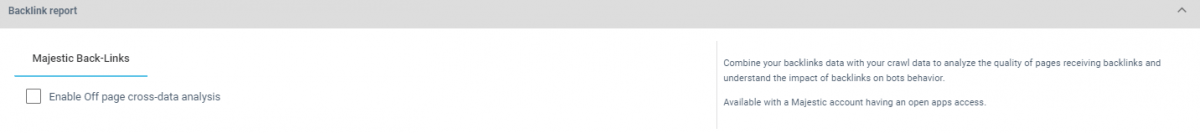

OnCrawl Crawl Configuration Options: Backlink Report

OnCrawl has the ability to combine and consolidate the off-page profile of a website with the internal technical and non-technical aspects of a website to create more SEO Insights. For now, it works with Majestic’s API. If you have a Majestic subscription, you may take advantage of this rare option.

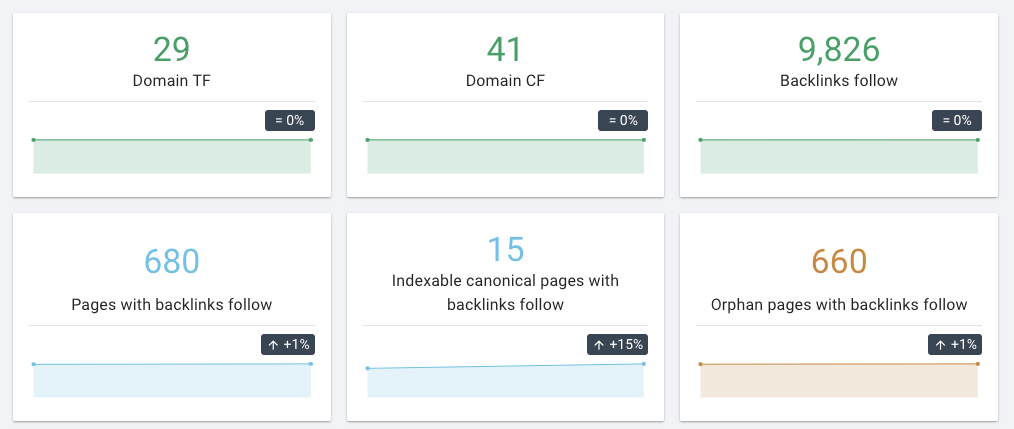

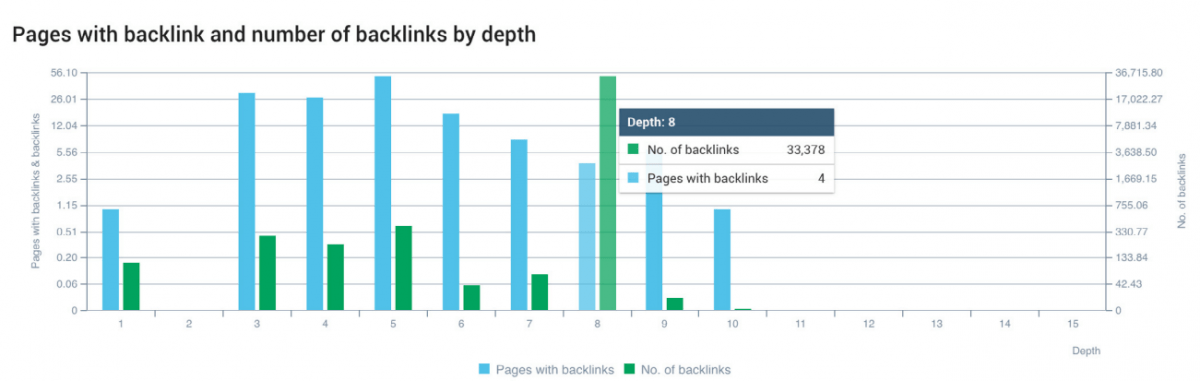

Backlink Report of OnCrawl
OnCrawl can integrate backlink data to the SEO Crawl Output

Why is the “Backlink Report” Important?

Backlink Report is for combining the Off-page and Branding profile of a website with the internal SEO elements and SEO Performance data. Thus, understanding a website’s situation holistically is more possible.

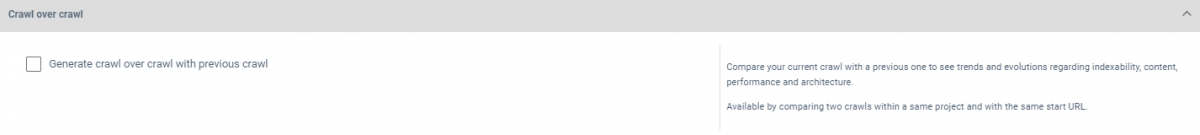

OnCrawl Crawl Configuration Options: Crawl over Crawl

The “crawl over crawl” option is for determining a past crawl as the base version of the website so that the new crawl can create more insight.

crawl over crawl
Compare different SEO Crawl Results.

Why is the “Crawl over Crawl” Important?

To see the differences, improvements, and decline in the different verticals and factors of SEO in terms of both Technical and non-Technical SEO, this option has the golden value. Seeing content is being crawled more frequently by Googlebot after taking a link from Homepage can be possible and also you may check a web page’s keyword profile difference after changing its meta title and anchor texts of links that target itself. And, it is also one of the rare features for SEO Crawlers.

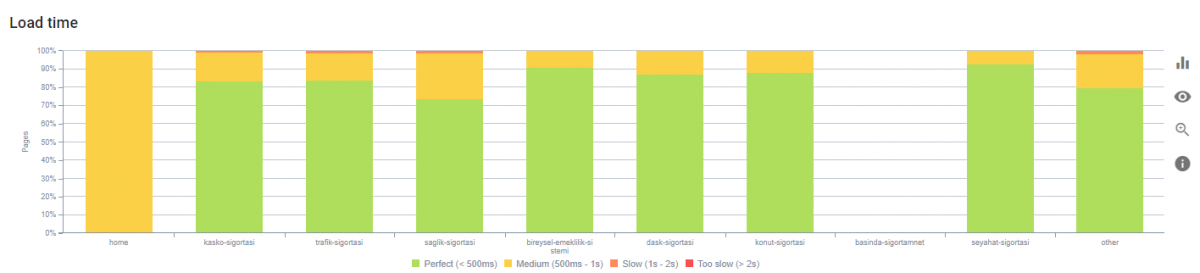

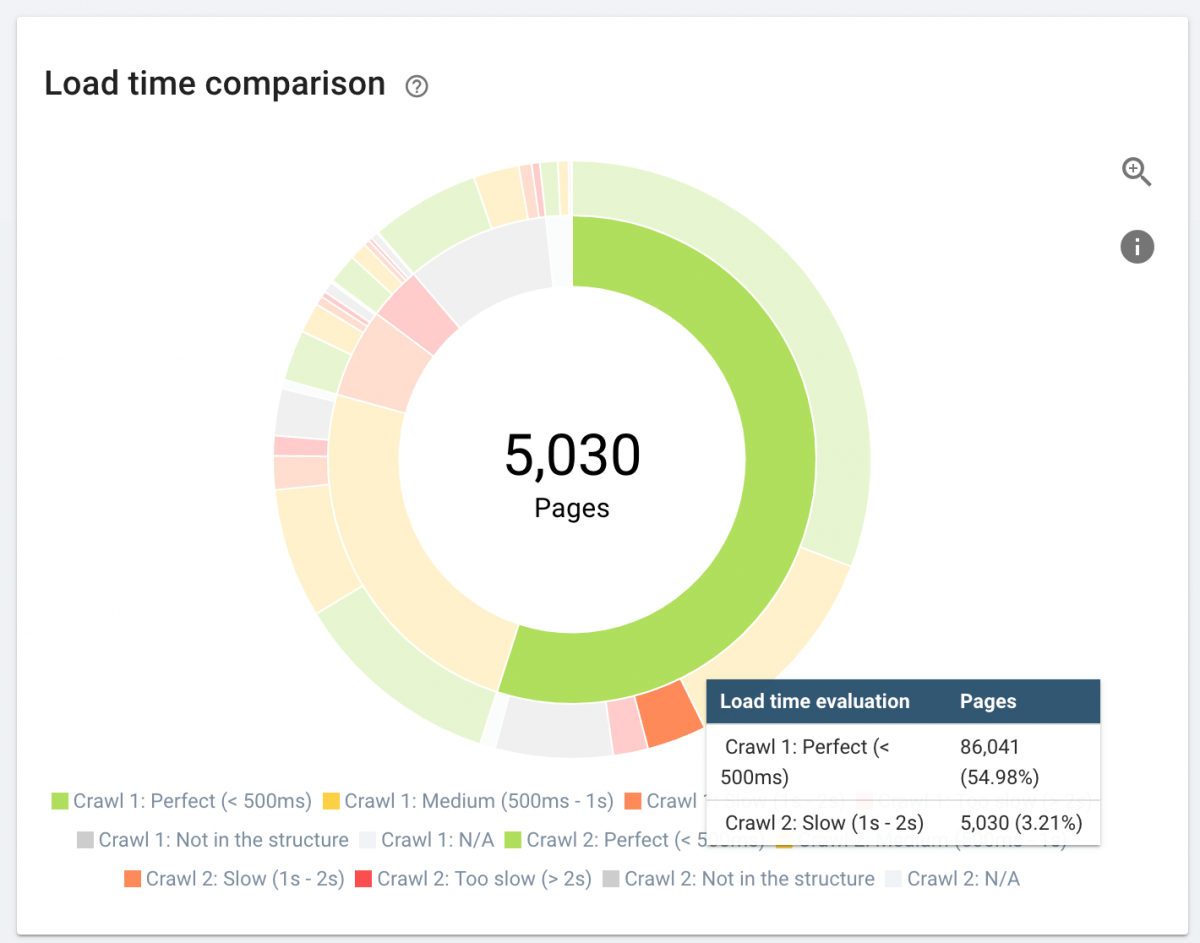

Below, you will see an example for the “Crawl over Crawl” comparison for the “load time evaluation”. You may see the difference between load time distribution for web pages and their performance change for different crawl reports.

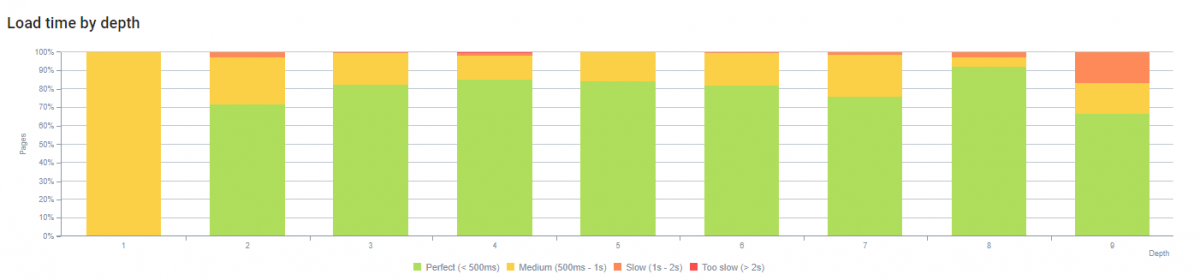

SEO Crawl Comparison
Loading Time Differences Based on Different Crawls.

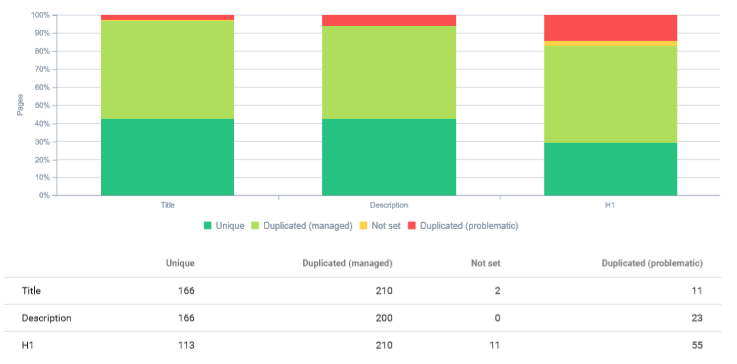

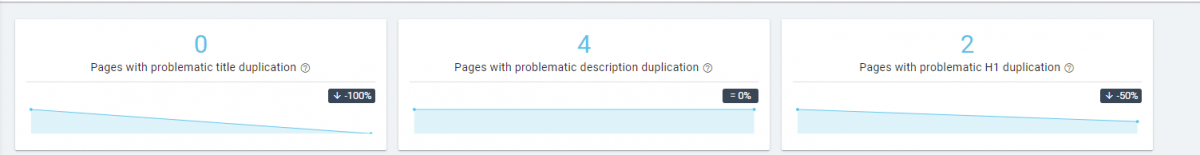

Below, you will see another and similar example, for the “Missing” and “Duplicated” H1 Tags.

SEO Report Comparison

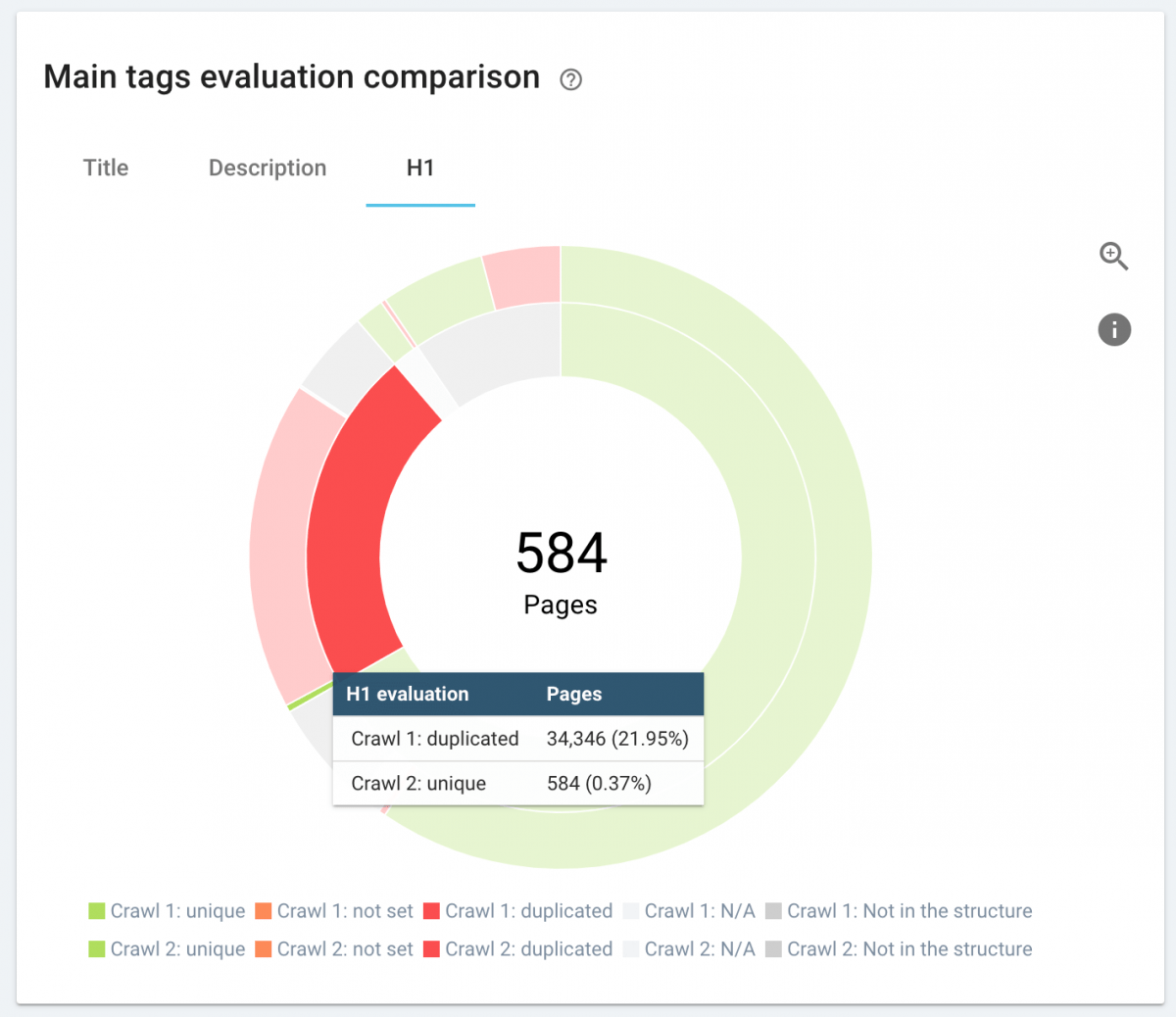

H1 Duplicate and Unique Comparison for different Crawl Outputs.

OnCrawl also tries to show the differences between different crawls in every aspect of the website so that the webmaster can understand what they did differently and why Google’s preferences can be changed.

OnCrawl Crawl Configuration Options: Scraping

Web scraping means extracting information from web pages via CSS and XPath selectors. Extracting links, texts, image source URLs, any kind of component on a web page with a special and custom metric is possible.

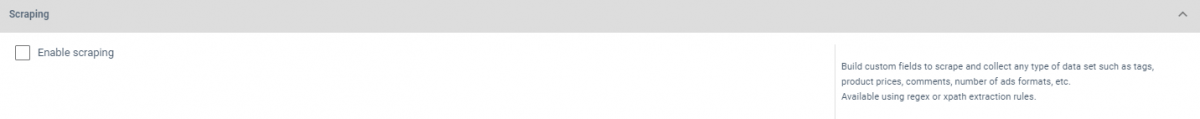

SEO Crawl and Scraping
Scraping can help for enriching an SEO Analysis during the SEO Crawl.

If you want to crawl a website with Python, I recommend you to read our related guidelines.

Why is “Scraping” Important?

Thanks to custom scraping, creating a custom metric for Ranking Performance or checking the stock information, or comparing the price differences or category and filtering differences between e-commerce sites or the “comment, review rate” differences is possible.

As I remember thanks to Rebecca Berbel, it also offers a very important opportunity to check “publish and update” dates for articles or blog posts.

OnCrawl Crawl Configuration Options: Data Ingestion

Data Ingestion gives the possibility to use JSON and CSV files for integrating the data of Google Search Console, Google Analytics, Adobe Analytics, AT Internet Analytics and also Log Files.

You can also add data from SEMRush, Ahrefs, Moz, or any other source to your SEO Scan and Analysis project so that you can create your own SEO Metrics and Analysis Template via OnCrawl’s Data Ingestion Option.

Why is “Data Ingestion” Important?

Data Ingestion can increase the privacy of websites since only the determined amount of information is shared with the toot. It also gives a chance for the “non-authorized” sites’ be able to audit without any GSC, GA, or Adobe Analytics user access via the CSV, JSON files in a ZIP archive.

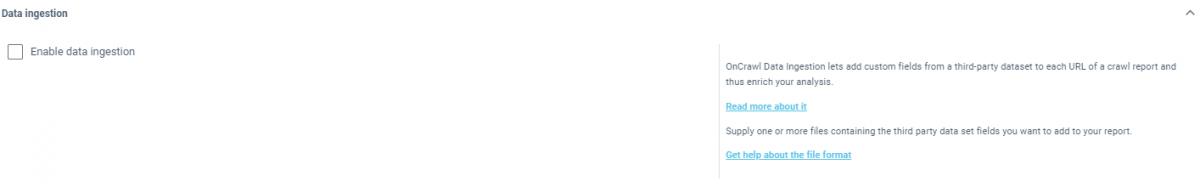

Data Ingestion for SEO
Data Ingestion for SEO Crawl.

And, since it lets you add any data from any data resource, you can create a more “creative” SEO Analysis based on your own guesses and compare them to see which one gives the more consistent results for the project.

OnCrawl Crawl Configuration Options: Export to

The “Export to” option is determining the crawl process’ output whether will flow into the Data Studio or not.

Why is “Export to” Important?

“Export to” is our latest OnCrawl Configuration option. It is useful for using OnCrawl’s Data Studio Connector for creating better-visualized charts that contain SEO Insights with the customer. Instead of just showing a PDF file, showing them a paginated Data Studio report that can be customizable and unitable with other data files is way much more effective.

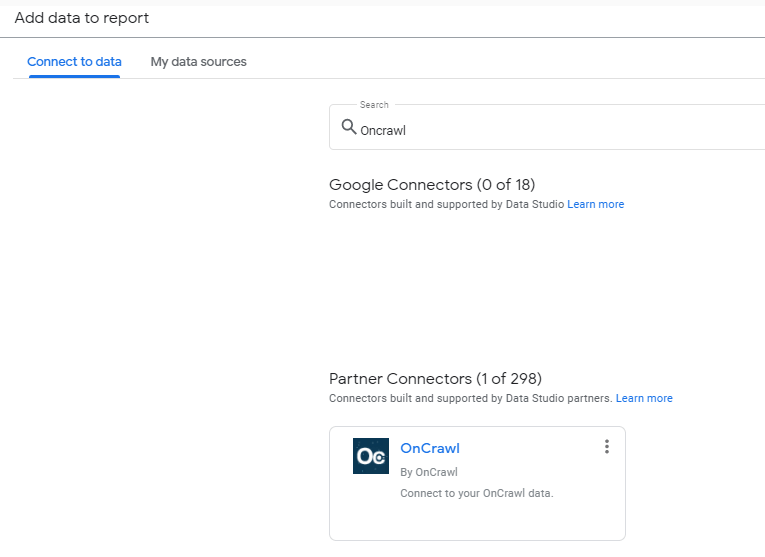

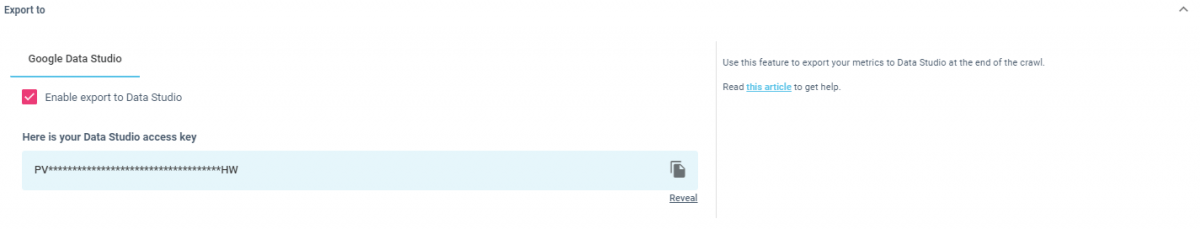

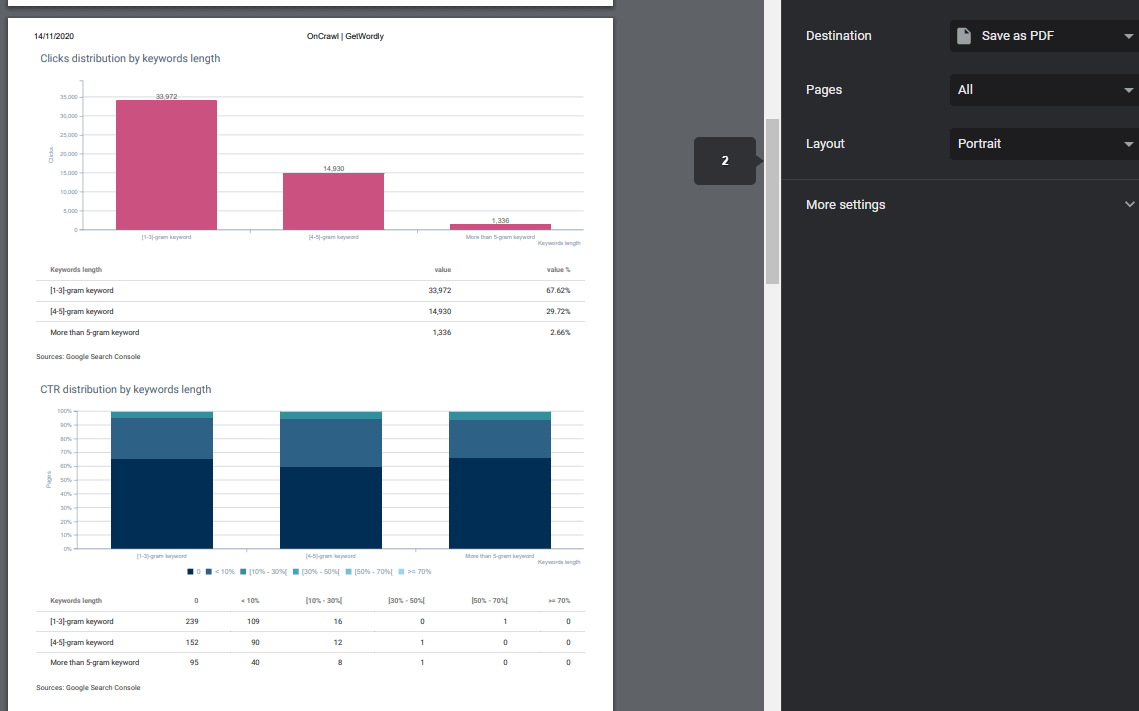

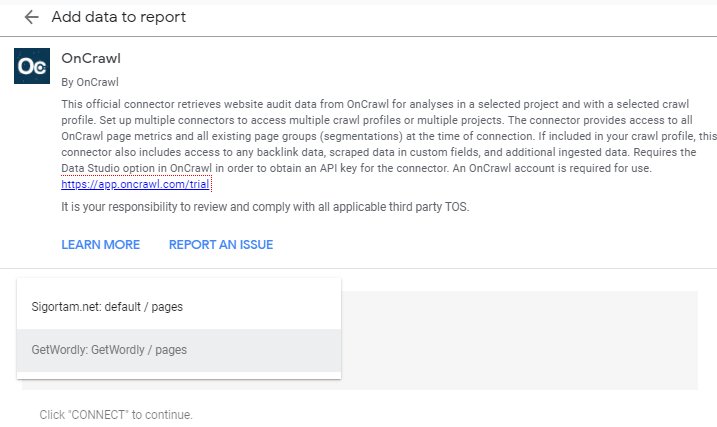

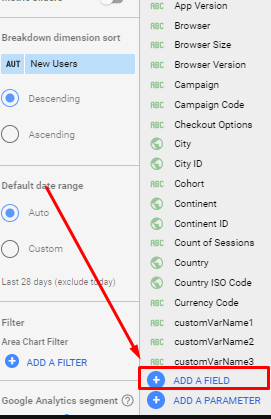

Data Studio for SEO
Via Onrawl the SEO Report Output can be connected to the Data Studio.

These were all of the OnCrawl’s crawl configurations. We have walked through every option with its advantages and benefits while giving some important notes about Googlebot and the Technical SEO Audits.

Now, let’s see how this information will be gathered and visualized by OnCrawl.

What are the Insights and Sections of an Example Crawl of OnCrawl for a Technical SEO?

SEO Report for Crawl from OnCrawl
An initial view for the OnCrawl’s SEO Crawl Report.

When our crawl has been finished, we will see an output summary on our main project screen as above. Crawl duration, amount of URLs that are crawled, whether the file is being exported to the data studio or not, and the “SHOW ANALYSIS” button will be available.

We will have three main sections of our OnCrawl crawl report as below.

  • Crawl Report
  • Ranking Report
  • Tools

We will focus on these three main sections, their sub-sections, and their micro-sections during our review, we will take their essence and try to understand why they are important and why they should be in the SEO report.

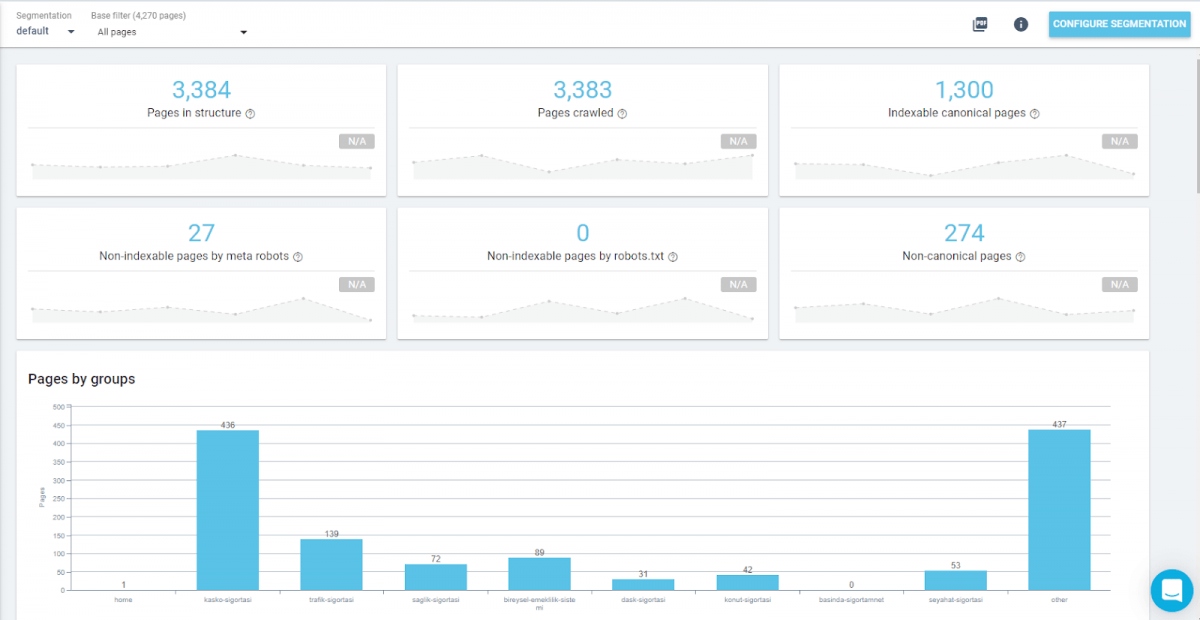

Summary of Crawl Report

The summary section of our Crawl Report is the first section of OnCrawl’s crawl output. It gives the general data we need, you will see an example below.

SEO Crawl Summary.

A quick summary of our crawl output is below.

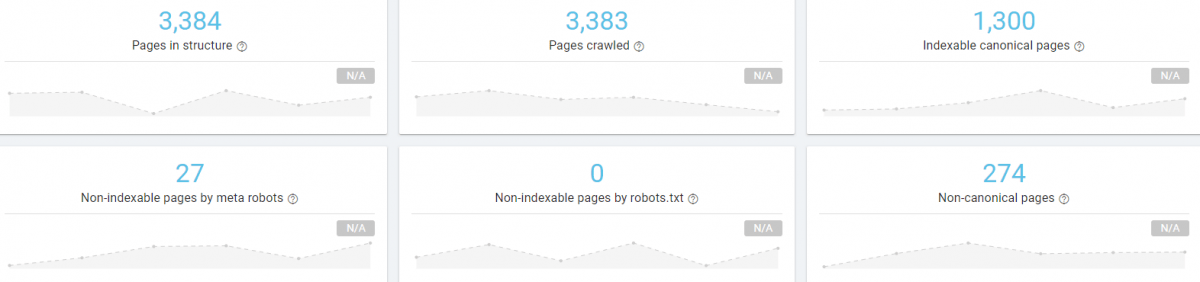

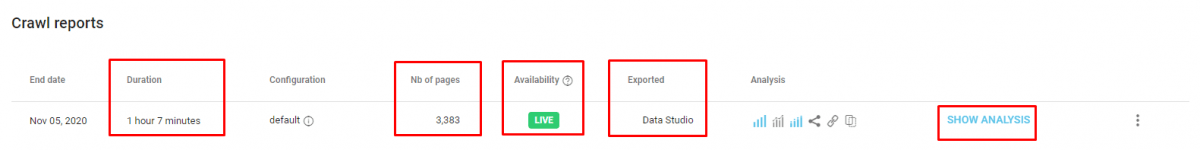

SEO Crawl Report.
SEO Crawl Report upper section.
  • During our crawling, we have crawled more than 3.000 Pages.
  • 1.300 of these URLs were the canonical URLs that means that the URLs we want to make the index.
  • We also have 27 “Non-indexable” pages with meta robots commands.
  • We have 274 “non-canonical” pages from our crawling, it might mean that we have some unnecessary pages with wrong canonicals.
  • We didn’t encounter any URLs that can’t be indexed because of robots.txt

When you hold your mouse over a section here, you will see that OnCrawl invites you for a new crawl to see if there is a change on this metric so that you can extract more insights.

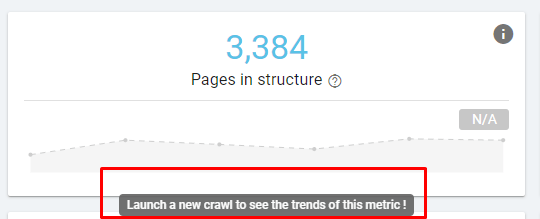

seo crawl 8

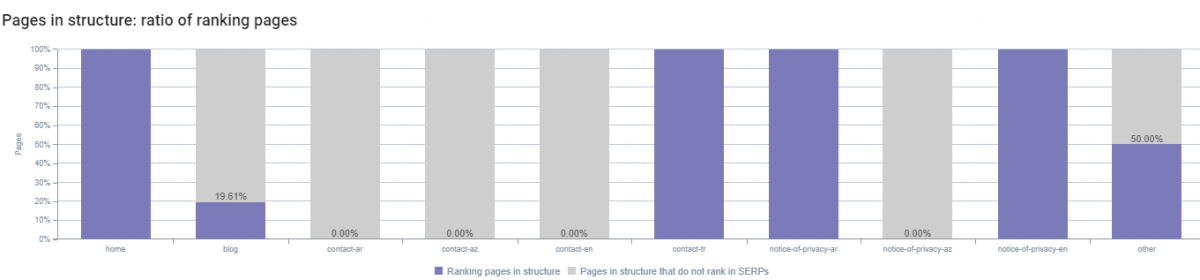

Pages In Structure.

Grouping Pages According to Their Content and Target

OnCrawl, during the crawling process, can differentiate the web pages from each other and create page groups according to their content/purpose. Thus, analyzing a website as different segments can be very effective. A section of a website can be very effective while one of the other sections can’t satisfy the user. A problem on a website section also can harm the performance of other sections. So, grouping those pages and controlling them in a semantic manner is important.

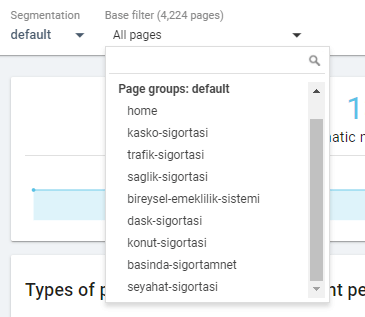

Below, you will see our segmentation for our crawl example.

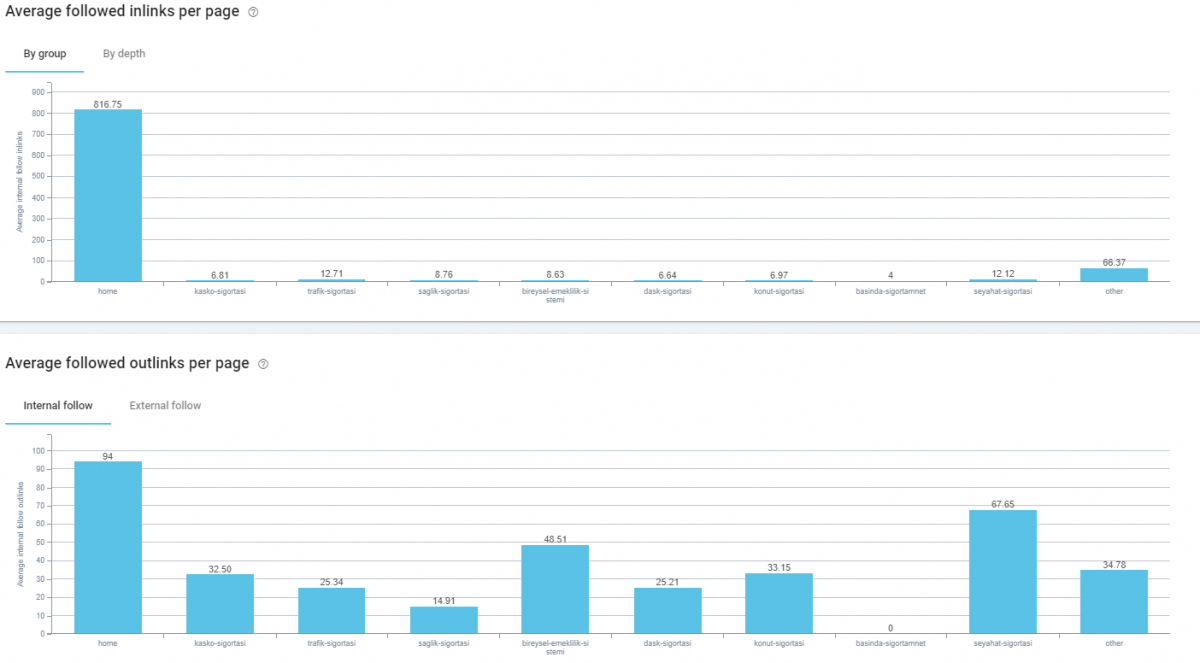

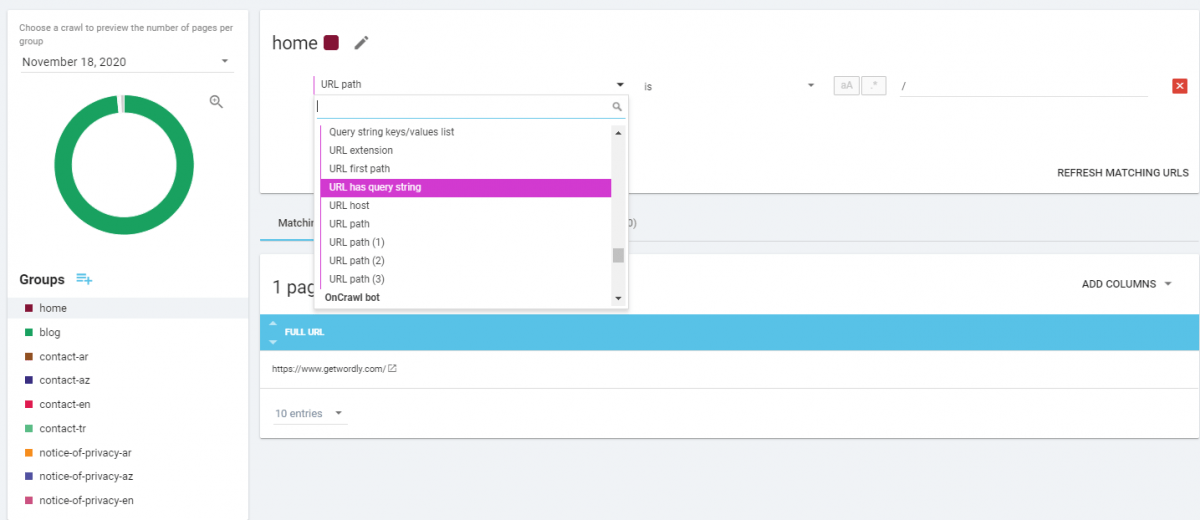

Internal Link and Web Page Segments for the Crawl Output.

We have 9 different segments here, according to their mutual points, I can see that these segments include the biggest “folders” of the website as “categories”.

And also, OnCrawl follows the URL structure for categorizing websites instead of Breadcrumbs since the Breadcrumbs usually have non-correct internal link schemes, I can say that this is a safer and consistent methodology.

According to the OnCrawl, our page segmentation is as below:

Page SegmentsPage Number
Homepage (Naturally)1
Car Accident Insurance436
Traffic Insurance139
Health Insurance72
Personal Pension89
House Insurance42
Press for the Brand0
Earthquake Insurance31
Travel Insurance53
Page Segments according to the URL Segmentations for a Technical SEO Crawl.

You also can extract all these data to a CSV or a PNG while turning this graphic into a logarithmic scale. About the Data Extraction, OnCrawl has a detailed, creative, and limitless system for your SEO Crawl Analysis and its Export. It will be told with deeper details in the following sections.

You also may want to check the OnCrawl’s API Reference’s Data Export section for more detail: http://developer.oncrawl.com/#Export-Queries

This option is also a universal feature for all of the other graphics of OnCrawl’s SEO Crawl report.

Page Groups by Depth

Pages by Group section is for grouping the page segments and analyzing their distance from the Start URL (the URL that you have started your SEO Crawl). The homepage is the most authoritative and important page of a website. Googlebot, after the Robots.txt file, starts its crawl from the Homepage. Thus the URLs that can be found easily from the home page are more important. Linking the main categories and main revenue-creator web pages from the homepage is important.

Below, you will see our Click Depth and Homepage Distance for every website segment.

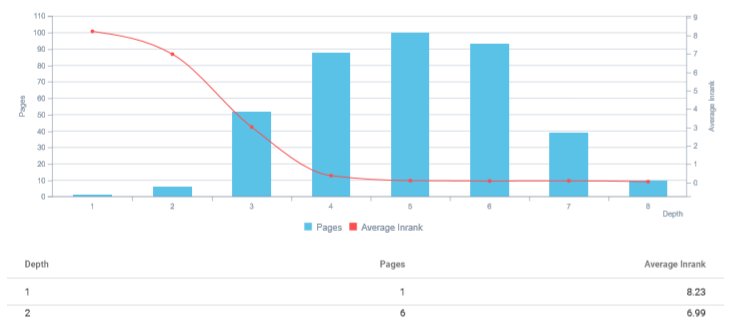

Average Inrank by Depth

Average Inrank by depth shows the different possible “PageRank” and “Link Juice” like a ranking signal that is caused by the internal link structure. The term “like PageRank or Link Juice” is a subjective term here.

Inrank is the special formula and metric of OnCrawl that has been developed by OnCrawl engineers to understand a website according to its internal link structure. Thus, its purpose is to show the importance of a URL and Page Segment for internal navigation.

When I learned that OnCrawl’s “InRank” metric is actually based on PageRank’s original formula and evolved with millions of SERP and Ranking Data by time to reflect Google’s most updated PageRank perception. Many thanks to Rebecca Berbel for her contribution here. I only remember “Inlink Rank” from SEO PowerSuite but it isn’t inspired or adjusted for PageRank. So, I can say that this is another unique feature for OnCrawl.

Below, you may see our example site’s web pages’ average Inrank by depth.

PageRank and Click Depth
You may see the InRank Distribution by Depth as a possible representation of the PageRank distribution by depth.

Status Codes

In the internal link structure, every URL should give a “200” status code. If they are not 200 Status Code URLs, they should be removed from the internal atmosphere of the website. This can change for A/B tests for a brief time period but Status Code Cleaning is actually an important thing.

Internal 301 Links and 301 Redirect Chains make a web page’s crawl time longer and the crawling process harder for Search Engine Crawlers.

404 URLs also should be removed from the internal navigation while being turned into 410 Status Code.

Seeing these types of differences in a website on a scale is useful for a Technical SEO.

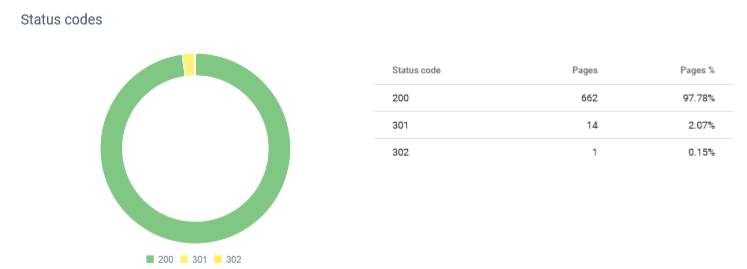

Below, you can see our status code profile for our crawl output.

Status Code Distribution for Technical SEO
Status Codes and their distribution for the website.

As a reminder of the SEOs for Education charity campaign of OnCrawl.

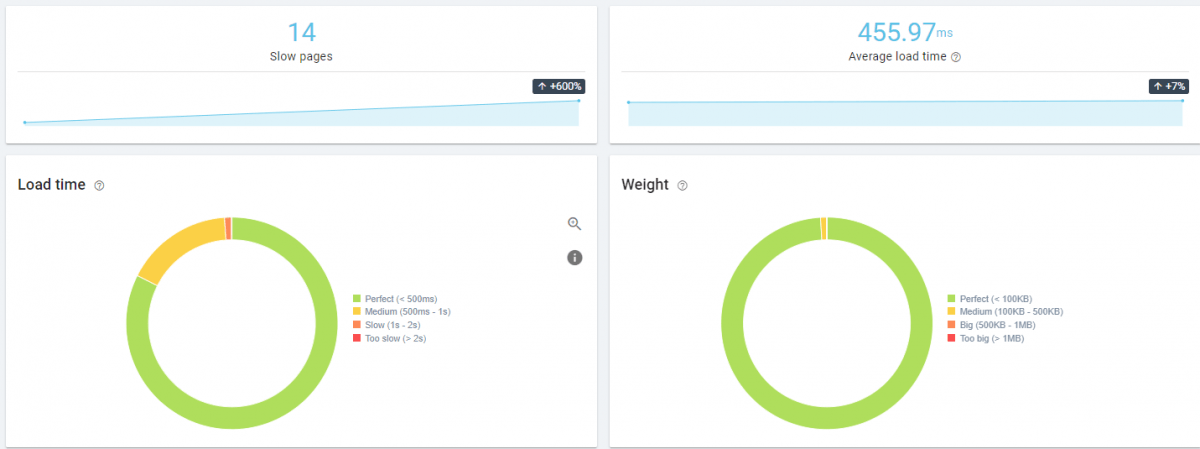

Load Time

Load Time is another important metric for SEO. Seeing the problematic URL amount in terms of loading time and its proportion to the sum of URLs is useful.

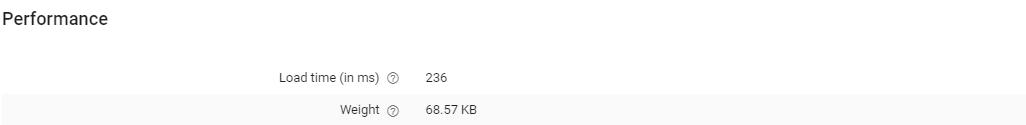

With a single click, you may see all the slow-loading pages with their internal link profile, InRank, Status Code, link attributes, and status codes that they point to these URLs.

Also, you may see our example crawl’s loading page information below.

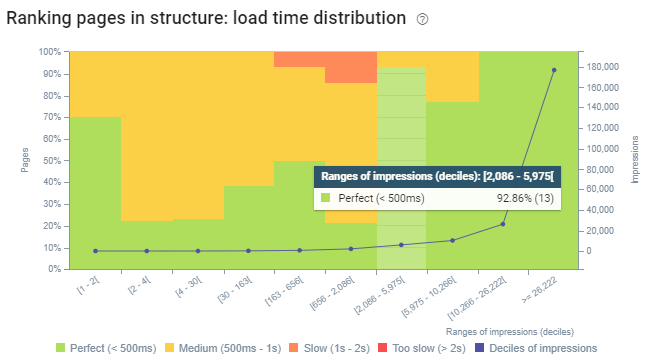

Load Time Distribution
Load Time Distribution for the example site.

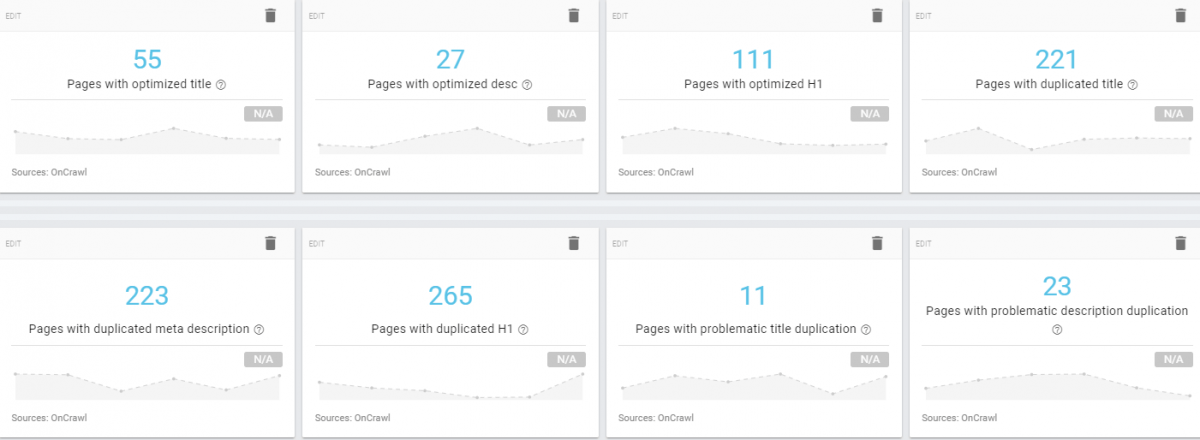

SEO Tag Duplication

In our SEO Crawl Report’s SEO Tag Duplication section we can see the duplicated SEO Meta Tags and their portions compared to the sum of the URLs.

This section includes Title Tag, Description, and H1 Tag. OnCrawl also distinguishes the “Problematic Duplication” and the “Managed Duplication” from each other. Two web pages with the same canonical URL within their canonical tag can use a duplicate title tag, this is being assumed as managed duplication. On the other hand, competing web pages with each other for the same query group with duplicated SEO Tags are the real problematic ones.

Also, missing and unique title tags can be seen.

You may see our example output for the given website.

SEO Tag Duplication
You may see the SEO Related HTML Tags and their duplication distribution.

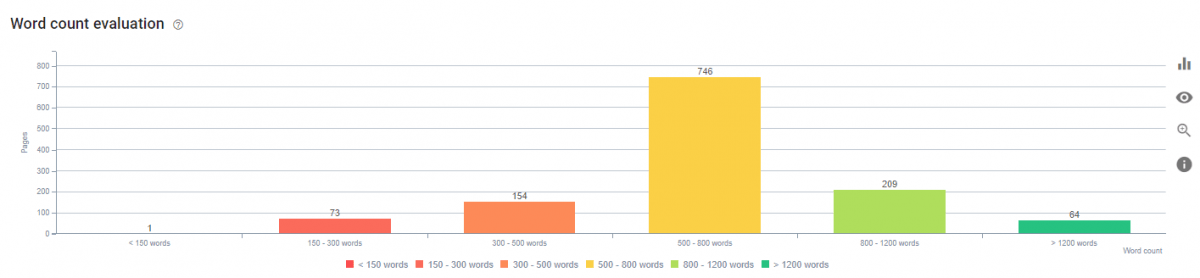

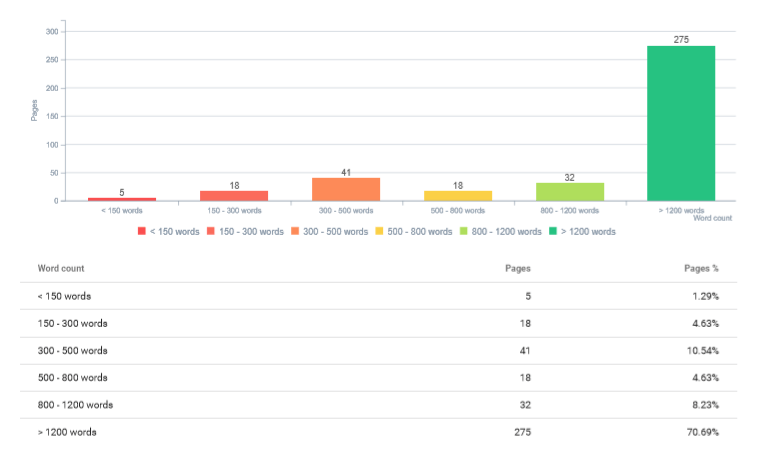

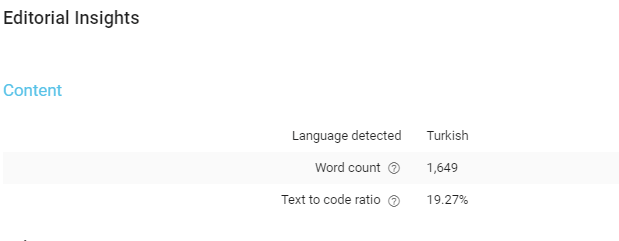

Word Count Evaluation

Word Count Evaluation evaluates the web pages according to the words that they include within it. It is useful for detecting thin content. Also, the Word Count Evaluation process works along with different page segmentations, so you may see success rate differences for different website segments along with their word counts. And, you may want to learn “absolute and weighted word frequency calculation with Python” for a better word evaluation.

Word Count for SEO
As a Ranking Signal (Not a Factor), Word Count can give insights.

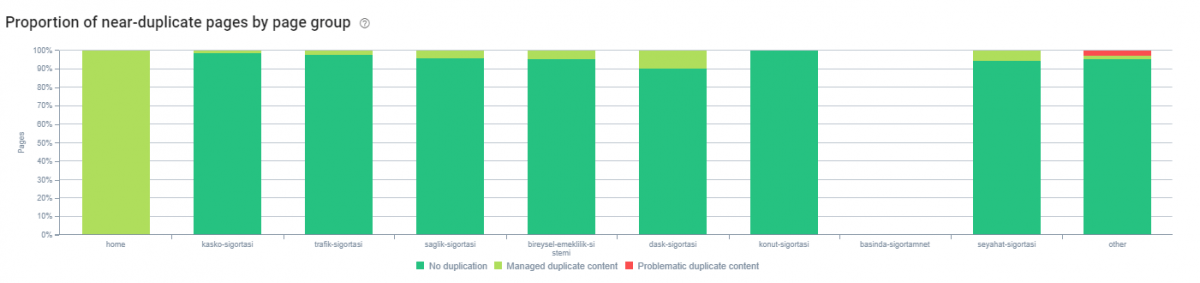

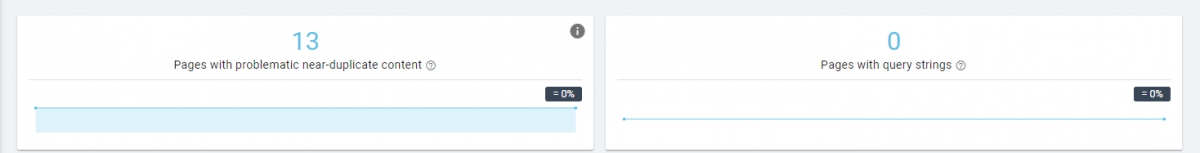

Duplicate Content Detection

Problematic Duplicate Content Per Page and Site-wide Duplicate Content Types are two different metrics for OnCrawl’s SEO Crawl reports. You simply detect the web pages that are duplicated by their content or its SEO-related HTML Tags. You also compare these pages’ percentages to the sum up of all URLs.

Duplicate Content Detection
Duplicate Content Detection for SEO.

Indexability Section of SEO Reports on OnCrawl

Indexability, Crawlability, and Render Cost… These are the main terms for Technical SEO. If it is not Googlebot friendly, it may not be rendered, if it is not crawlable, it may not be indexable, if there are wrong or mixed signals for indexing, it can get indexed while it shouldn’t be indexed.

We have five main metrics for indexability.

These are Indexable Pages, Indexable Canonical Pages, Non-indexable pages by meta robots, Non-indexable pages by robots.txt, Non-canonical pages.

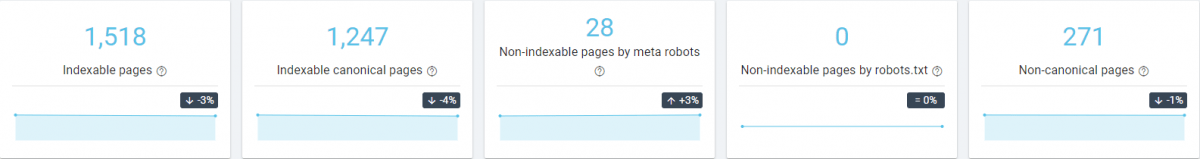

indexability section of seo reports
SEO Crawl Canonicalization and Indexability Section.

At above, you will see “-3%” or “-%4” numbers at the right corner of the information boxes. It means that the “Indexable Pages” amount or “Indexable Canonical Pages” amount changed since the last crawl. Because, at this point, I have refreshed our crawl, and OnCrawl shows the changed data since the latest crawl time for the example website.

Pages by state of Indexation

Pages by State of Indexation section shows the Indexable and Non-indexable pages’ situation and amount in an interactive graphic.

Indexation Status of SEO Crawl Report.

This graphic here shows also the 404 and 301 Status Code Pages. If you click one of these bars, it will take you to the Data Explorer section of the tool as below. As we said before, Data Explorer is a unique and general tool-wide technology that can help get more detail for any kind of vertical combination.

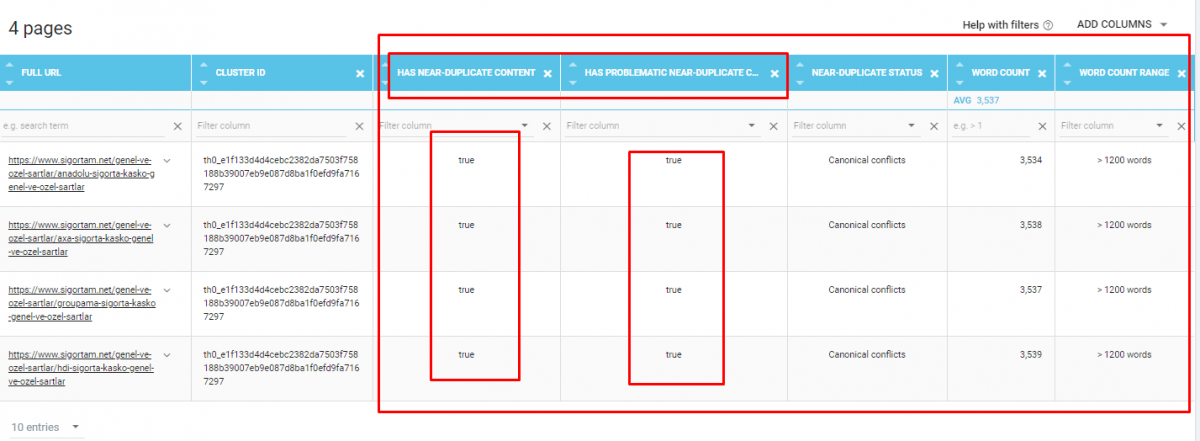

Data explorer of OnCrawl.

Indexability Breakdown of Pages

As you remember, OnCrawl has segmented all of the pages according to their categories and mutual points. Indexability Breakdown of Pages shows the web pages’ status distribution in terms of indexability. You may see an example below.

Indexability Status according to the Breakdown of Web Pages.

You may see all of the Indexability Status for different types of URL Segments and site sections. Also, the same graphic exists for “No-index” pages and “Non-canonical” pages. Thus, you may see the main indexable content group for any website, and also you may check the non-indexable pages for any website section as below.

Clicking any section of these stacked bars, you may see the URLs that OnCrawl has filtered for you. Data Explorer, filtering data with logical operands and some unique OnCrawl page segmentation will be detailly told along with its unique sides.

For instance, for this example, we see that most of these URLs have 301 Status Code but still, they can be explored via an internal crawling system.

Rel Alternate URLs in a Web Site

Rel Alternate URL extraction and comparison is another unique metric for OnCrawl, as I know. Most of the websites don’t care about their “rel” attribute as much as they should be. For instance, you may see lots of “rel alternate” attributes for a URL without any accuracy. This situation creates a “mixed signal” for the Search Engine crawlers since the “rel alternate” actually means the “alternative of this URL” in a certain perspective. You will see an example below.

Rel Alternate
Alternate URLs of a news website from Turkey with the wrong implementation.

In this example, we see that a Turkish News Site has lots of “alternate” videos for its news articles without any accuracy with “RSS” type attributes. In fact, this information on the source code is not correct.

OnCrawl can extract these “rel=’alternate’” URLs and also can segment and categorize them.

Canonical Insights section is important.

We have “matching” and “non-matching” values for our “rel=’alternate’” links. It measures whether the canonical URLs and the “rel=’alternate’” URLs are matching or not. We also see that our “rel=’alternate’” values are not changed since our last crawl.

We have metrics below for our “rel=’alternate’” section.

  • Pages with canonical: Shows the consistent canonical URLs with the “rel=’alternate’” URLs.
  • Pages linked in pagination (prev / next): shows the URLs with “link rel=’prev’” or “link rel=’next’” URLs.
  • Pages with hreflang: shows the URLs in hreflang values.
  • Non-indexable pages declared as hreflang: Since, hreflang URLs also have canonical effect, their indexing status is important.
  • Pages with missing hreflang declarations: Shows the missing or non-mutual hreflang declarations.
  • Non-canonical pages: Showing Non-canonical pages that have the “rel=’alternate’” URLs that point them.
  • Content duplicated pages with canonical issue: Showing the URLs with content duplication problem and also rel=’alternate’ URLs that point them.

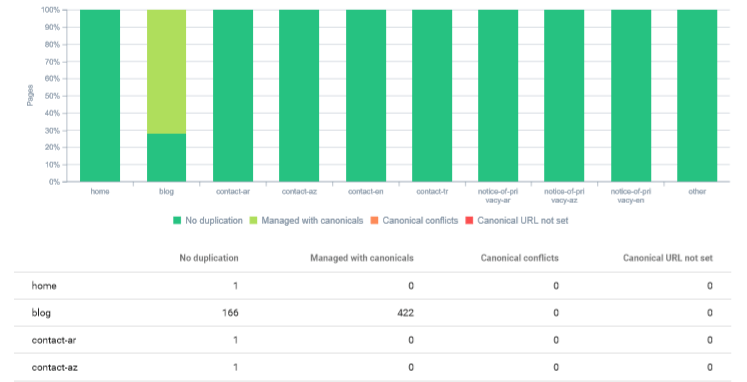

Canonical Evaluation

This section shows the URLs with Canonical and rel=’alternate’ attribute profile according to the website’s segmented sections as below.

We see that our “other” section has lots of URLs that don’t match with its own canonical URLs. You may see them below as an example.

Canonical Evaluation can be seen for another site section.

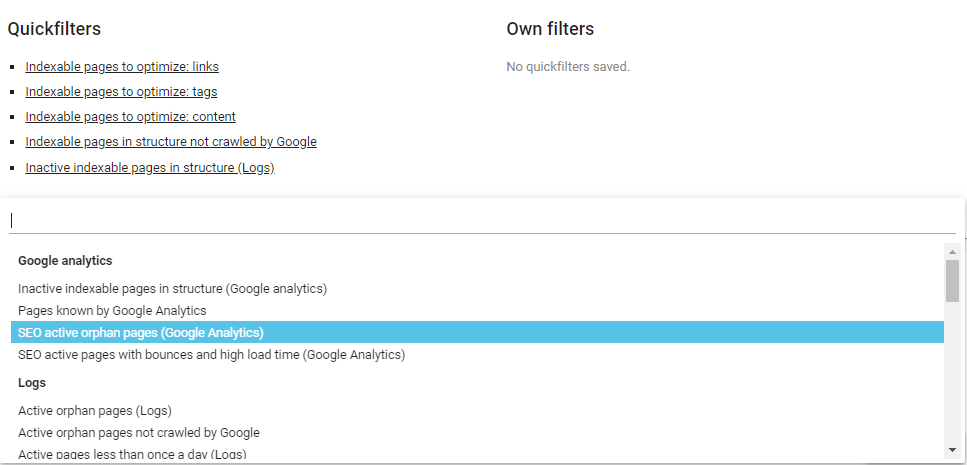

We also have special filters and dimensions thanks to OnCrawl’s highly customizable Data Explorer section.

Pages Linked in Pagination (next / prev)

This section shows the rel=’next’ and rel=’prev’ URLs in the source code of the URLs. Google doesn’t use the rel=’next’ and rel=’prev’ URLs but Bing and Yandex use them for following the paginated URLs and clustering them together. So, if you think SEO in a holistic vision, this information still matters.

Below, you may see how OnCrawl extracts and visualize this data for you.

In the example above, you can’t see an actual count since our example website doesn’t use “link rel next or prev”. Also, Google stopped using pagination URL attributes in the source code since most of the web sites implement them in a non-correct way, they figured out that they spend more resources because of this attribute.

Hreflang URLs and Their Data Visualization in OnCrawl

Hreflang tags are being used to symmetrically declare the same content’s different geographic and language versions so that Search Engine clusters and evaluate these content together. Also, it makes finding other targeted site sections easier.

OnCrawl has the metrics below for Hreflang Issues that matter for International SEO Projects.

  • Missing declarations: Missing hreflang tags for multi-language and multi-regional contents.
  • Missing self declaration: Missing hreflang tags for the content itself.
  • Duplicated hreflang declarations: Repeatedly used hreflang tags for the same URL.
  • Conflicting x-default declarations: Conflicting declarations for the default version of the same content.
  • Incorrect language code: Unsuitable Language code to the ISO 639-1 Format.
  • Pages with too many hreflang: Usually the pages’ size too much or the hreflang URLs are irrelevant.
  • Pages are part of a cluster containing pages declared as hreflang that couldn’t be found in the crawl: Non-existing or non-found URLs in the hreflang attributes.This is the case if you are using “subdomains set up for language-based differences”. If you crawl only one subdomain, OnCrawl will report that the specified hreflang attribute was not found, as other subdomains cannot be discovered during the crawl, because of the crawl configuration.

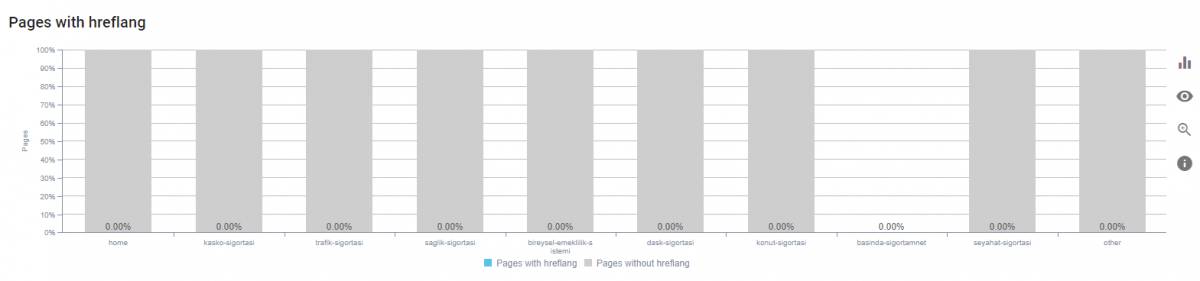

OnCrawl has shown the hreflang URLs and their errors as below.

Hreflang Visualization for SEO Crawl
Hreflang valuation.

Also, the URLs with these errors and non-indexable hreflang URLs can be found easily in the same section.

Sitemaps Section of the OnCrawl’s Crawl Output

The sitemaps are one of the basic elements of Technical SEO. Every URL in the sitemap should be the canonical URL that is consistent with the “hreflang” and other “alternate” URLs with 200 Status Code. They should be indexable and they shouldn’t be cannibalized with too much similar or duplicate content.

Sitemap SEO Crawl
Sitemap and Sitemap Evaluation for SEO Crawl

Above we see that we have 2,003 URLs in our Sitemap but only 1,228 of them are actually indexable. We also have 3 redirected URLs in our sitemaps. We also can rate the URLs and their situation in terms of canonicalization and indexability with the interactive visualization from OnCrawl’s crawl reports as below.

Sitemap URL Profile according to the SEO Crawl Output.

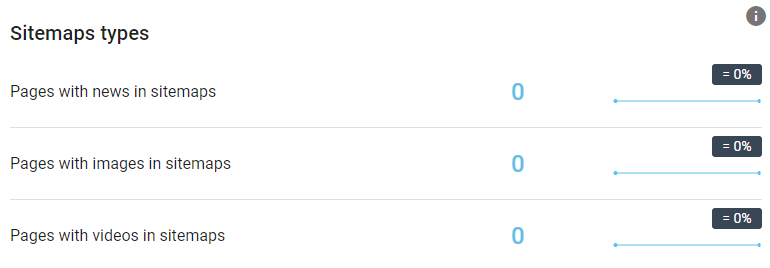

Sitemap Types

There are different sitemaps such as image sitemap, video sitemap, a news sitemap, and XML Sitemap. OnCrawl can differentiate these sitemap types from each other and show their situation as below.

SEO Crawl Sitemap Types
Sitemap Types from our SEO Crawl Example.

Since we don’t have any of these sitemap types for our current crawl, the numbers are 0. The “= 0%” sections show the change amount between different crawl reports from the same crawl profile.

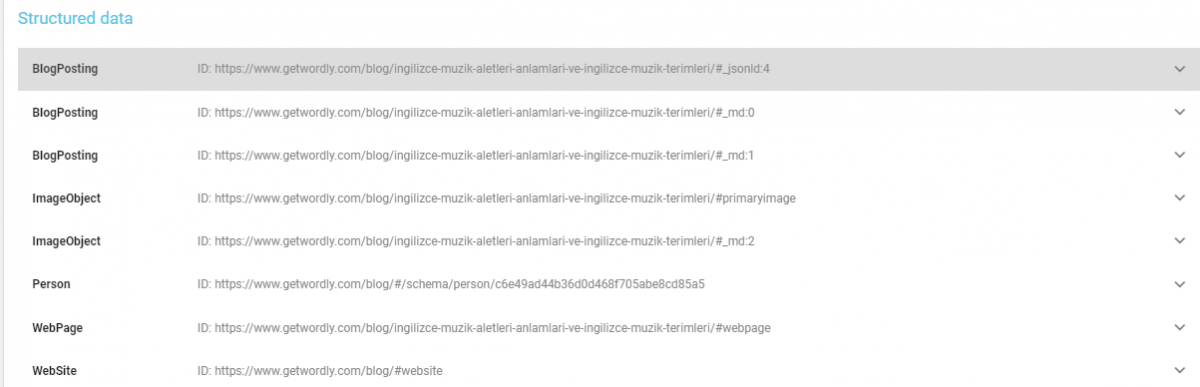

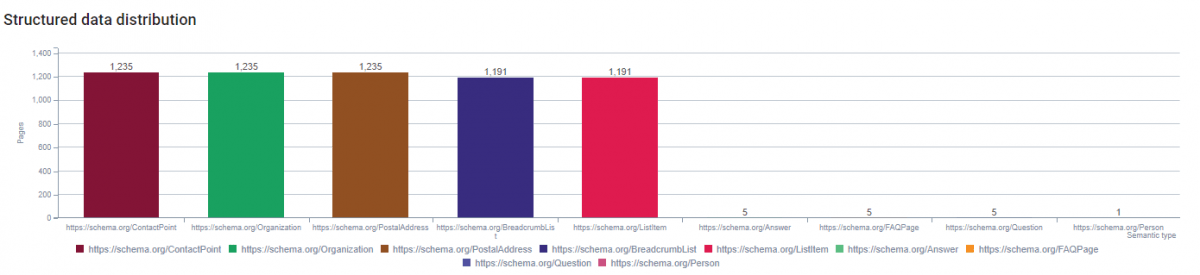

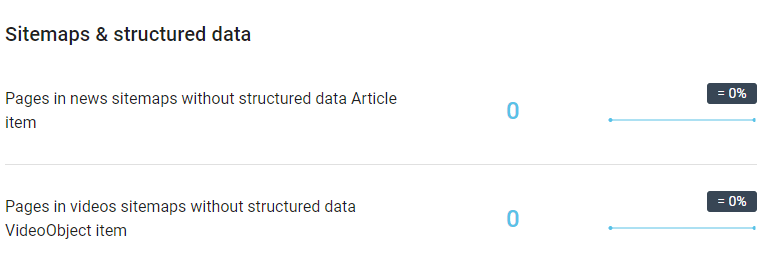

Sitemap and Structure Data

Structured Data is one of the best ways to tell a web page’s purpose and their segments’ purposes and contribution to the web page’s general situation. The URLs in the sitemap can be used with structured data to show their purpose in a better way. OnCrawl can detect these structured data features in the URLs in the sitemaps and can show them to you.

Structured Data and Sitemap URL Types
You can examine the URLs, their requirements, and sitemap types.

Since we don’t have any video sitemap or news sitemap, the numbers are 0.

Pages in Sitemaps

This section is also important. It shows the missing sections in the sitemaps. How many pages from which segment is missing from the sitemap. You may see the interactive visualization below.

We see that there are lots of web pages that are not indexable and even if it is indexable it is not in the sitemap.

We see that more than half of the website and their web pages are not in the sitemaps. You also can correlate this information with the log files and Google Search Console to see if there is any connection between the performance of the URLs in the sitemap or not.

Sitemaps orphan pages

This section shows the web pages that are in the sitemap but not in the internal website navigation. If you don’t create a proper internal link structure that shows the importance level of your site sections and webpages, the orphaned web pages that are in the sitemap may also be ignored by Google. “Signal Collection” is a process that is being performed to understand a website by a Search Engine and the Internal Link amount is one of them.

So, if you say Google that “index those pages” because they are in the sitemap but also if you don’t link them enough, Google will think that these pages are not important even if they are in the sitemap. And, we call this “Mixed-Signal”. Send Search Engine, always “meaningful” and “consistent” signals.

Thus, you may see the web pages that don’t have enough internal links to be crawled, evaluated, and explored by the Search Engine Crawlers.

Orphaned Page Distribution and their situation in the Sitemap according to the Site Categories.

Pages in sitemaps by state of indexation

This section shows the URLs’ indexability situation in the sitemap. If a URL is not indexable, it shouldn’t be in the sitemap. By clicking any of these bars, you may see the specified vertical and its URLs to clean and increase the effectiveness of the sitemap.

Pages in sitemaps and their indexation statuses.

Status Codes Report of the OnCrawl

Status Codes show the URLs’ responses to the crawler. If during the crawl process, a crawler encounters 301, 404, 410, 302, 307 status codes more than Response Codes with 200, it might be a problematic situation. Imagine you have a Search Engine, you want to crawl a website so that you can find useful content for some queries of users but to crawl that website you need to tolerate lots of unnecessary URLs and you need to waste your crawling resources. Would you try to continue to try to understand that website?

That’s why a clean status code structure is important in a website. Let’s examine our example website that lost the 6 May Core Algorithm update for its status codes.

Status Code Reports of OnCrawl for the SEO Crawl.

We see that it has more than non-200 URLs from the 200 URLs in its internal navigation. 179 4xx pages along with 1569 3xx pages. Such a response code distribution for a website will create problems for crawl efficiency.

OnCrawl also categorizes the 3xx URLs with the following criteria:

  • Pages with single 3xx redirect to final target
  • Pages in 3xx chains
  • Pages in 3xx chains with too many redirects
  • Pages inside a 3xx loop
  • Pages in crawl that are 3xx final targets

Googlebot doesn’t follow a 301 Redirect Loop after the 6th redirect chain. OnCrawl also gives a Number of Follow and No Follow link amount for these criteria. You may see them below.

Redirect Chains and Loops.
Redirects, Chains, and Loops for SEO Crawl.
  • We see that our example web site has 1279 single redirects but 17.191 times these URLs are being used in our web pages.
  • We have internal nofollow links for these redirect chains.
  • We have 10 Redirect Loops and 170 times we linked these loops.
  • We have 323 pages that are finalized via 301 Redirect with 48,784 internal links.
  • We have 280 redirect chain with 578 follow internal link
  • We didn’t have redirect chains with “too many” repetitive redirects.

By clicking any of these numbers, you may see the URLs with their own internal link structure and other SEO-related features.

Target status of 3xx pages

This section shows an interactive visualization of our 301 Redirection Chains and their targeted URLs.

3xx pages and redirect chains in SEO Crawl Report.

Status Codes Breakdown According to the Site Segmentation

This section shows the status code distribution for the website’s different segmentations. You may see an example below.

As you can see the status code breakdown is not even close to good for this example site.

In this example, we have completely redirected the category for the “press” section. We also have a 404 pages cluster in our “Car Accident Insurance” category. Most of the “health insurance” section is being redirected to somewhere else.

This tableau means that crawling of this website for some sections is harder according to the other sections and the crawl health varies for these…

Status Codes Breakdown According to the Distance from Homepage

This section shows the status code distribution according to the click depth. Thus, you may understand the problematic sections of a website in a better way.

Status Code Breakdown according to the Homepage Distance, again, it is not good for this site.

According to our depth, our website has more problematic source codes from the “second depth”. It is at the maximum level at the fifth level. Also, we know that from the 4th level on, Googlebot will crawl these pages 2x times less.

Link Flow and Internal Link Structure in OnCrawl’s Crawl Reports

This section is about the internal and external link profile of the crawled website and has the most unique and insightful graphs according to most of the industry. OnCrawl is using the InRank metric which is developed by themselves to show the popularity of a URL in the internal structure of the website.

Below, you will see the Average InRank distribution for a website according to the depth.

Internal Link Structure in OnCrawl Reports

We see that we have 286 Pages in the second depth. They share 2.86 Inrank. It means that we can use the second depth for more special pages with the organic revenue potential. Also, in the fourth rank, we have 329 pages and their InRank is 0.89. You may compare these values with your competitors to see their situation and correlate the Search Rankings to understand the best balance.

Page Groups by Depth

This section shows the internal page groups’ distribution according to the distance from the homepage, a.k.a click depth.

Page Groups by Depth, we see that the “other” section dominates everywhere.

We see that most of the second depth URLs are from the “other” section which consists of blog posts. Using the second depth of URLs with products and services which have actual conversion value can be better while collecting all of the informational content under the “blog” section. So that the InRank and page segmentation can be calculated easily between the transactional and informational pages.

InRank Distribution

In this section, we can see the InRank distribution from 0 to 10 for different page segments. Let’s start.

This graph shows that the InRank distribution for his site is not healthy.

We see that the “other” section has the same importance as much as the homepage. Also, the pages with the 9 Inrank consist solely of the Other URLs. This means that the page segmentation is not being done according to the web pages’ purpose, users’ visit intent and the URLs of the web pages are not being structured well enough along with their internal link structure. Also, the “other” segment can occur if you specify multiple Start URLs with fewer pages with lots of subfolders for your SEO Crawl. Since they won’t be enough for creating a segment with their own size, they will be grouped as “other” against other website segments.

InRank Flow

This chart is one of the best graphics that can show the Internal Link Popularity according to the links’ target direction.

InRank Flow is “neutral” which means that the InRank value is wasted between non-important blog posts.

It shows that most of our Internal Links are coming to the Other URL segment from the Other URL segment. It makes it harder to be understood.. Also, the most valuable pages in terms of conversion and organic traffic value don’t get enough links to be considered important by the search engine crawlers.

And, Dear Rebecca Berbel from OnCrawl taught me that another nice feature of the InRank Flow chart is that you can see how InRank Flow would dissipate if a particular segment of a website did not exist. So, with InRank and Internal Link Popularity metrics, you have the chance to better consolidate your website’s ranking power.

Average InRank by Depth

You may see InRank by Click Depth for different segments.

This section shows the average InRank values for the different page groups from the different click depths. In this example, we see that the most valuable pages in terms of transactional value are “Traffic Insurance” and “Health Insurance”. It might seem correct at the beginning of our analysis. But if you click one of these dots, you will see the information below.

Average InRank by Depth and URL Filtering.

We see that the pages with the most InRank value are actually the pages with blog content instead of the actual service pages with the real organic traffic value. We see that the “Traffic Penalties” content has more InRank value according to its parent “Traffic Insurance” web pages. To fix this situation, you can use OnCrawl’s Data Explorer as I did.

Average Link Facts for a Website in OnCrawl’s Reports

From the same section, we also can see the average values for Links in a website such as their status codes, average link per page, average external link per page, average followed a link by page segments, or click depths. This information may help you to optimize your website for better PageRank distribution, user-friendly navigation, and creating a more semantic, crawlable, and meaningful site tree.

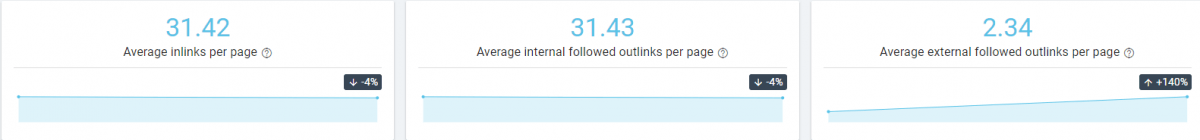

internal links report
Internal Links Report of OnCrawl.

We see that since our last crawl, our average external nofollow amount has increased by more than 140%. We have 2.34 external nofollow links per page. We also have 31 Internal Links per page. In some cases, Google said that between 100 and 150 Links on a web page can be acceptable, but also Google said that after a point, Googlebot stops crawling and evaluating links from web pages that have an excessive amount of links.

Thus, with Oncrawl you can see what are industry normals for Average Link Features for a website, and also you can optimize your website while auditing it with a more sensible internal link and external link structure.

Links Status Code Breakdown for a Web Site

With OnCrawl, we can have our Status Code Breakdown along with their target URLs status codes from the same report section.

You may see that the internal links’ status codes for this site are not close to even average in terms of SEO.

Links Insights

Complementing the previous section, we can see some sharp features of links on a website.

  • Pages with only 1 follow link
  • Pages with less than 10 follow links
  • Total number of follow links
  • And their interactive visualization
We see that the website’s internal link’s situation in terms of dofollow and nofollow are not optimized. When we click these options, we see that the URLs that are important spend their PageRank potential.

At the breakdown, we can see the external nofollow links, internal nofollow links, and more.

Links Flow

In this section, we can see the actual numbers of the links and their targeted URL segments. The previous example is for the InRank Flow. The link flow and the InRank flow shouldn’t be confused with each other.

Links Flow for URL Segments.

We see that most of the links are pointing to the “other” section from the minor product and service pages. Since the important sections of this website are actually the products and services, linking to the informational blog posts excessively can harm the website’s categorization and profiling process, it might be seen as an informational source more than an actual brand.

This might have led them to lose the 6th May Core Algorithm since mainly they lost traffic for their product and service pages, this fills the blanks in the SEO puzzle.

Average Followed Internal Links by Groups and Depth

This section shows the Average Internal Followed Links according to their web pages’ click depth and page groups.

Average Followed Links Per Page. You can see the problem…

We have 816.75 links for the homepage as average on every web page from this website while we have 66.37 pages on average for the “other” section. For the transactional and organic traffic pages, we have internal links between 6.81 and 12.12 on average. And most of these links are not targeting the actually important sections of these groups.

Don’t you think it clearly shows what the problem is?

Average Followed Outlinks for Every Web Page

This section shows the average external outgoing links for every web page group.

Another problematic Internal Link Structure.

We have the results below.

  • We have an average 94 outgoing internal following link for the homepage.
  • 32.50 average followed outgoing internal link for Traffic Accident Insurance
  • 25.34 average followed outgoing internal link for the Traffic Insurance
  • 14.91 average followed outgoing internal link for the Health Insurance
  • 25.34 average followed outgoing internal link for the Personal Pension
  • 25.21 average followed outgoing internal link for the Earthquake Insurance
  • 33.15 average followed outgoing internal link for the House Insurance
  • 67.15 average followed outgoing internal link for the Travel Insurance
  • 34.78 for the Other Group.

I will not write a single mathematical calculation here, but very simply, we see that the most important page groups get 5 or 6 links on average, while the less important ones get 30 to 67 links on average.

The “Other” section, which is less important and keeps the Click Depth Data away from being semantic for the Search Engine to a certain extent, receives 2 links for each link it sends to another website section. I leave both graphs below for a better understanding of the situation.

Internal Link Analysis SEO Crawl
The most important pages are the less-weighted pages in the internal link structure of this site.

It is even now more clear.

HTML Tags in the OnCrawl’s SEO Reports

HTML Tags Report is actually the report for the SEO Related code snippets in the web pages’ source codes. OnCrawl’s main focus on these reports is actually the deduplication, missing tags, and their distribution data for the website. It mainly can be a problematic situation for old blogs with thousands of posts or e-commerce sites with too similar products.

HTML Tags in SEO Crawl Report
HTML Tags in the SEO Crawl Report Analysis.

We can see the duplicate title tags, description tags, and H1 tags along with their change percentage according to the latest crawl. This section shows the duplication problems and also their types with interactive visuals for every vertical.

SEO Tags in the SEO Crawl Report.

“Managed with hreflangs”, “managed with canonicals”, “no management strategy”, “hreflang errors”, “all duplicate content” sections are the other options here. Seeing all the On-Page SEO Elements’ duplication problems according to their page segments is possible.

You may see the problematic SEO-related HTML Tags according to the website segments and click depth.

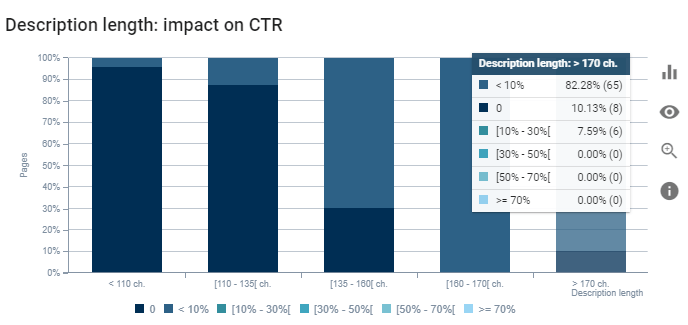

Also, we can see the distribution of the “too long”, “perfectly long”, “too short” meta tags’ distribution in an interactive way.

Most of the SEO Tags on the website are problematic.

The H1 and H2 numbers for pages can also be visualized. This information is important because it shows the web pages’ appropriateness to the HTML Rules along with their granularity for informing the users. We can see the average numbers for every Heading Tag for all of the websites in OnCrawl reports.

Heading Tags Amount
Average Heading Counts for the websites.

We see that we have three H2 Tag per page, you may use this information and methodology for understanding the industry normals.

Structured Data Reports in OnCrawl’s Reports

OnCrawl also extracts the Structured Data from the web pages and visualizes them according to their amount and type through page segments and click depth. We will have the metrics below for the Structured Data report.

  • Page Amount with Structured Data
  • Average Item per page
  • Structured Data Distribution by Type
  • Pages with Structured Data According to the Site Sections

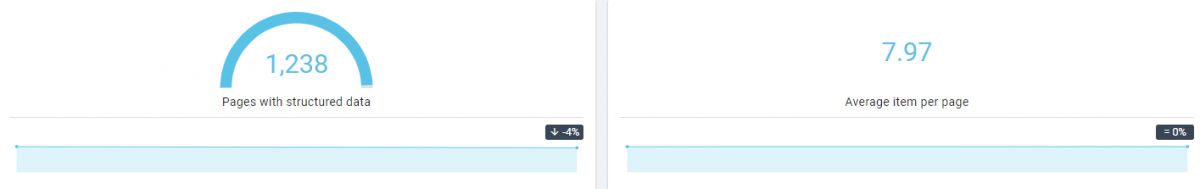

Structured Data Types and Amount
Structured Data Profile of the website.

We see that our web site’s most of the web pages with 200 Status Code have the Structured Data and have 7.97 items within the Structured Data average. Below, you will see the Structured Data Distribution by type.

Structured Data Distribution SEO Crawl
Again, we see Structured Data related Schema.org Types.

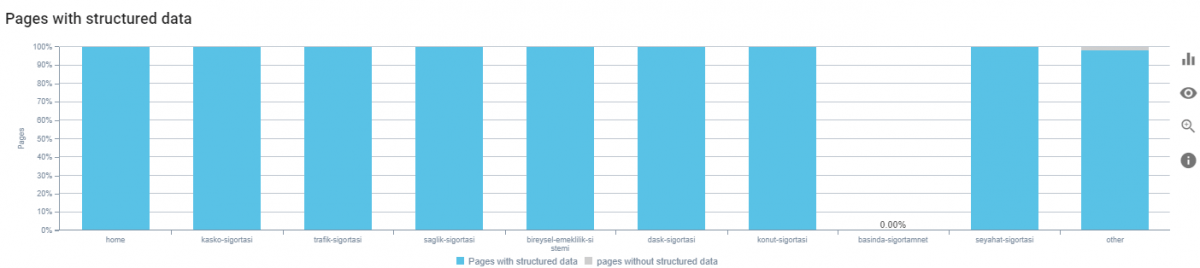

Also, we can see the Structured Data’s distribution by page segments.

Structured Data Types for Page Segments SEO Crawl
According to page segments, we see the same structured data type used repeatedly. And, it doesn’t create a clear signal for relevance and context for the website’s different types of pages.

You may use OnCrawl’s SEO Insights for determining the wrong structured data usage, examining the structured data profile per page and per website segment. We see that all of the web page segments have structured data with 100% except the “press” section which is completely redirected to the main category page.

Social Tags in OnCrawl Reports

OnCrawl also extracts data for Social Tags such as Open Graphs and Twitter Cards. These tags are being used by the Facebook Crawlers and Twitter crawlers so that the posts can be seen in the correct form on the social share platforms. Also, Googlebot checks this information to see whether the general information on the web page and the information on the social tags are consistent or not.

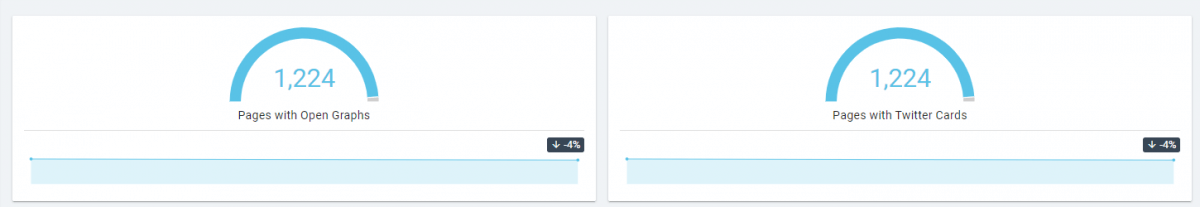

SEO Crawl For Social Tags
SEO Crawl for Social Tags

We see that all of the indexable pages have both Twitter cards and Open Graphs.

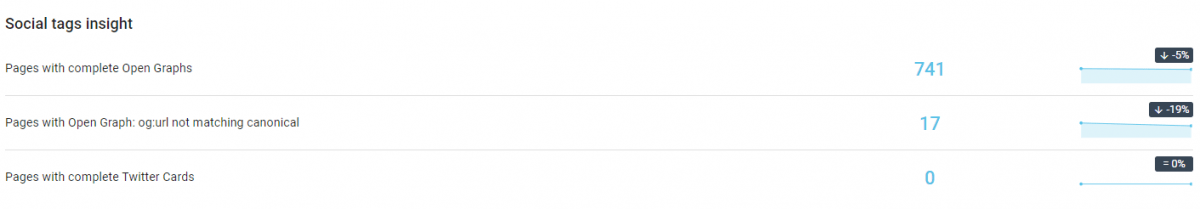

SEO Crawl Social Tags
You may see the inconsistency in social tags and structured data amounts for the website.

“Pages with Open Graph: og:URL not matching canonical” section is an important Technical SEO detail here as I know this might be a unique feature in the industry. You also can see which Open Graph objects are being missed or not as below.

Open Graph Examples and Numeric Inconsistency can be seen.

You also can check the Open Graph Types and optional metadata usage as below.

Open Graph properties and their distribution.

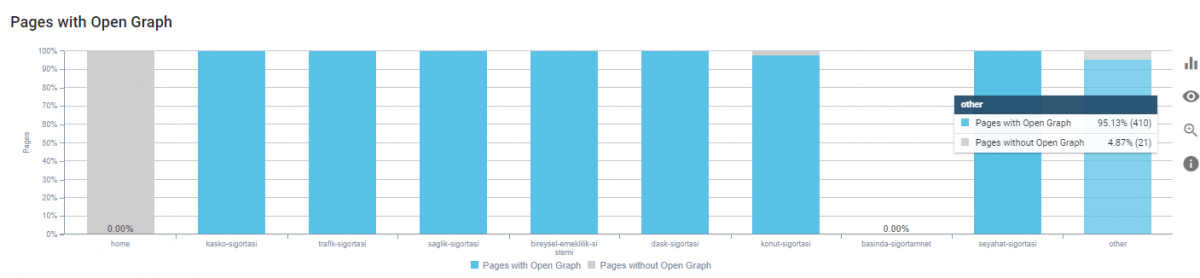

Checking the Open Graph Data Usage by page segments is also possible.

Open Graph Distribution
We see that the homepage doesn’t have an open graph along with some other page segments.

All of this information can be found also for the Twitter Cards and their own types via OnCrawl’s report methodology.

Twitter Cards for SEO Crawl. Again, we see the same numeric inconsistencies.

Content Audits with OnCrawl’s Crawl Systems

OnCrawl’s crawlers during the crawl process can extract the content of the web page for giving insights to the webmasters. It is a little bit surprising but I never saw an SEO Crawler before that can make N-Gram Analysis. OnCrawl also can make N-Gram Analysis…

N-Gram Analysis.
A unique feature for an SEO Crawler, N-Gram Analysis.

We can see the pages with thin content, average words per page, code/text ratio, pages at least one image, and pages with missing alt tags. Simply comparing this information with the main competitors like a Data Scientist, we can see the main differences between websites.

N-Gram Analysis
N-gram analysis example.

We also have the web page amount according to their content amount. For instance 73 of these web pages do not have enough content on them, they have less than 150 words. 154 of the web pages have a content-length between 300-500 words. You simply check these pages’ ranking and traffic performance against their competitors to see that the content detail level and content granularity can help. N-Gram Analysis also can help for detecting the keyword stuffing for an SEO so that he/she can fix the situation according to Google’s Quality Guidelines.

Also, remember that thanks to Data Explorer, you can mix all of this information in any way you want. It is completely up to you, imagine that OnCrawl is your Data Scientist, you just want to extract data to understand the users and Search Engine Algorithms.

Check the content length and word amount according to click depth.

Word Evaluation Example by Depth.

Check the content length and word amount according to the page segments.

Word Evaluation Example by Group.

In short, we see that most of our content is between 500-800 words, and also we see that some of our page segments have lesser content according to the others. I believe that in an industry such as Insurance, web pages should have more depth and detailed content with multi-layered granularity along with sensible internal links.

And we see that most of the content actually doesn’t satisfy the industry and user demands in both cases, page groups, and by depth.

One importance of being able to analyze the length and depth of content according to different segments of a website appears in industries with versatile needs. For example, a news site may need investigative journalism articles to be longer than 1200 words, while “Breaking News” stories may need less than 500 words. It is important to see the responses of Search Engine algorithms according to such differences in needs. The ability of OnCrawl to show the effect of the content length on the Organic Performance according to the website segments is one of the rare tasks that an SEO Crawler can perform.

Many thanks to Dear Rebecca Berberl from OnCrawl for making me remember this subtle and important detail.

N-Gram Analysis of the OnCrawl

N-Gram Analysis is the analysis of N-elements from a text according to their sequence in a text. N2 charts, n3 charts, or n4 charts can be used in different analyses. OnCrawl is performing N-Gram analysis until the 6 words are in sequence. And it is really a unique and cool feature for an SEO Crawler. You can also understand what is content talking about instead of just looking at the average numbers by click depth or page groups.

You can see that the Content of this site is very shallow and not an expert. With a cumulative N-Gram Analysis, you can see that they use “general template” words only.

You also can see which N-Words occur how many times site-wide. It helps you to understand the repetitive terms being used on the website and it is quite helpful to find unique terms by comparing the competitors.

We also see that there are repetitively used long-form sentences thousands of times without any optimized context. And, when you compare two different website segments or different websites for the same niche, you may see the expertise and detail differences that the publishers and service providers cover. If the content is not detailed, probably you will see more “stop words” in the N-Gram Analysis while you will see more “related concepts and details” in more informative content. Thus, N-Gram Analysis can be a sign of “expertise”. Don’t you agree? I recommend you to check at least the “Predicting Site Quality” Patent of Google which shows how they might use N-Gram Analysis for predicting the site quality.

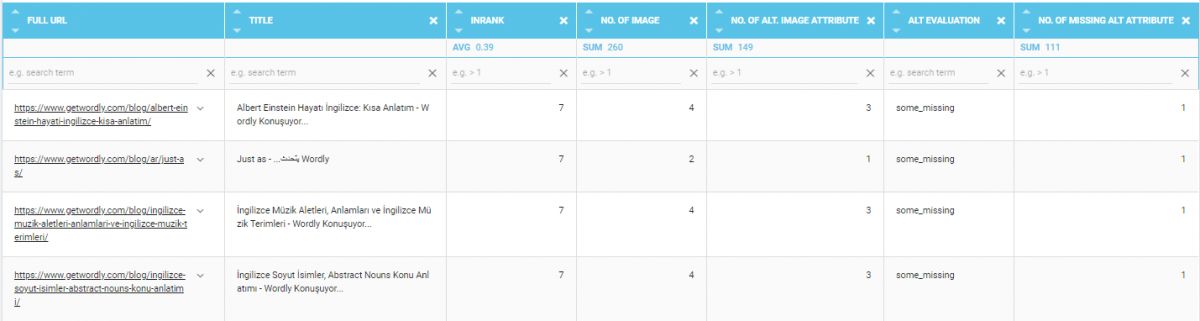

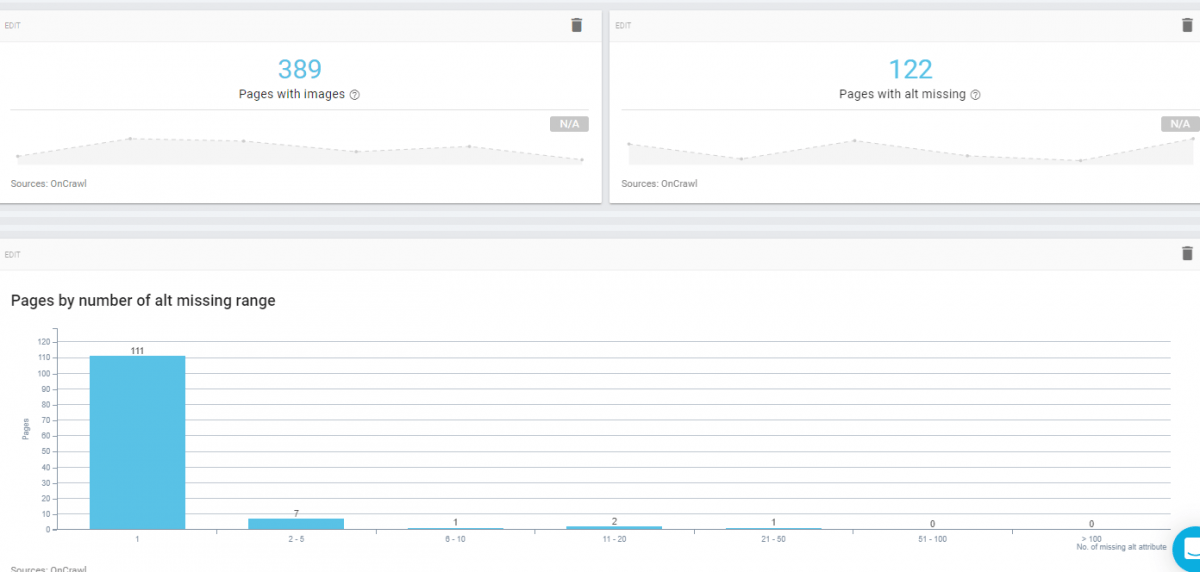

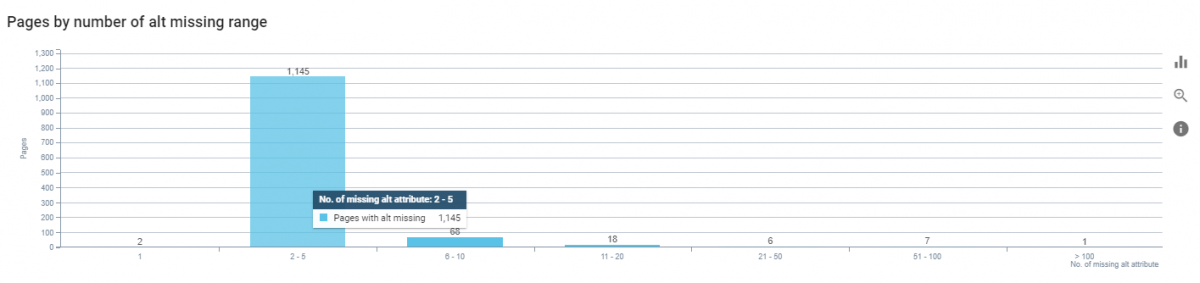

You also can check the missing alt tags amount for different occurrences.

Missing Alt Tags.
Missing alt tags amount by SEO Crawl.

Duplicate Content Reports on OnCrawl

In OnCrawl, you can also use duplicate content reports to see the problematic sections of the website. You can use the filter to see different sections of a website for duplication problems.

Website Segmentation SEO Crawl
Web Page Segmentation can be done via OnCrawl according to any custom metric.

You may see the quick statistics for duplication problems within a web page.

Duplication Problems
Duplication problems for the same site.

This section also has some similar report types with the “SEO Tags” section naturally. But I believe this section of OnCrawl reports fully focuses on the content instead of HTML Tags.

Duplication Distribution.

Also, in this section, we can see the duplication types on pages like above along with their occurrence level on the website. We also have duplicate content management reports that include “canonical conflict”, managed with canonicals” or “all duplicate content” metrics.

Canonicalization and Duplication.

It seems that we have 42 completely duplicate content and also 13 canonical conflicts along with 29 duplicate content managed with canonicals. You may see the duplicate and near-duplicate content distribution as below.

Near Duplicate Content
You can see that an important section of the website is near-duplicate.

We also have a similarity report for the duplicate contents.

Similarity Level and Duplicate Content Calculation are other metrics and methods that are unique for OnCrawl’s SEO Crawl Reports.

It shows the duplicate content similarity and also duplicates content distribution for page groups. You may check these pages to decrease the web page similarity by repurposing these pages.

Content Duplication, Similarity, and Content Clusters on OnCrawl Reports

Google clusters contents that are similar to each other to find representative content through the canonicalization signals. OnCrawl has a similar Content Management Report for Duplication Problems.

Content Duplication, Similarity Percentages according to the Content Clusters. This is one of the best unique sides of the OnCrawl.

You can change the cluster size and similarity percentage as you want to filter the duplicate contents. You may see how many URLs there are in the clusters. If you click one of these clusters, you will get the Data Explorer view below.

SEO Crawl with Data Science
You may see the most related custom and unique columns from the SEO Crawl Report of OnCrawl via Data Explorer.

You may see the near duplicate and duplicate content problems with OnCrawl easily, also from the Data Explorer section, you may go to the URL Details by clicking one of these results as we will show in the end section of this review.

PayLoad Report of OnCrawl Crawl Process

Like in other sections, you may filter the web pages as you want to see their web page performance metrics. Thanks to OnCrawl, you can see the slow pages, the average size of web pages, and the average load time of web pages.

Web Page Performance Metrics for SEO during the Crawl
Payload Report of SEO Crawl.

You may check the change trend and direction for the web page performance metrics with the Crawl over Crawl feature.

You can check the Load Time by page segments as below.

Load time by Website Segments.

You can check load time by page groups.

Load Timing and SEO Crawl
Load time distribution and Page Groups.

You can check the load time by click depth.

Load time by Page Depth and SEO Crawl
Load time by page depth. Homepage and the second click depth group are not good as you see.

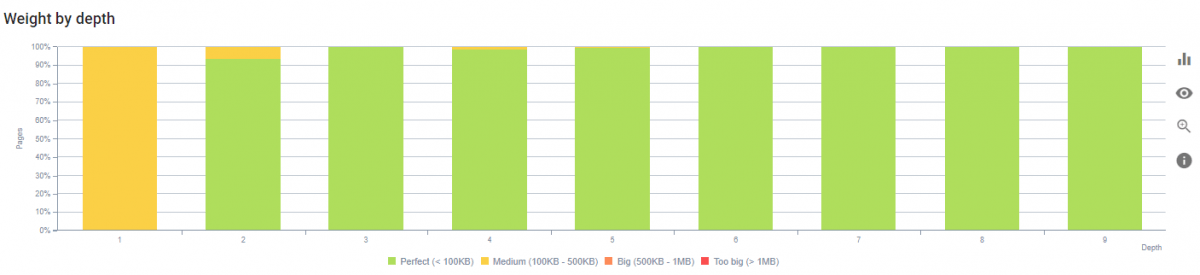

You can check page weight or source size by click depth.

Page Weight by Click Depth and SEO Crawl
Page weight by click depth.

You can use OnCrawl as your own Web Page Performance Calculator and Data Scientist at the same time. Checking the industry normals or top-performing websites will be helpful enough to understand the general situation. You may check the 6 May Core Algorithm Update winner sites for the same niche and geography to see the differences to put a performance budget with the IT Team.

And, using the Crawl Over Crawl feature, you can check the development while filtering the problematic sites with the help of the Data Explorer and URL Details section on the OnCrawl.

You may want to read our Page Speed Optimization Guidelines so that you can understand SEO Crawl Reports’ Web Page Loading Performance Metrics Better.

OnCrawl Ranking Report via Google Search Console Data

OnCrawl’s Ranking Report supports an SEO in the form of a Personal Data Scientist by combining unique charts and Google Search Console data. You can evaluate Google Search Console data by page groups, website sections, and click depth of a website. Thanks to URL Details and Data Explorer, you can directly see how many keywords a URL is ranked on, how these queries can be grouped, and related to Technical SEO issues, along with the log analysis of the URL.

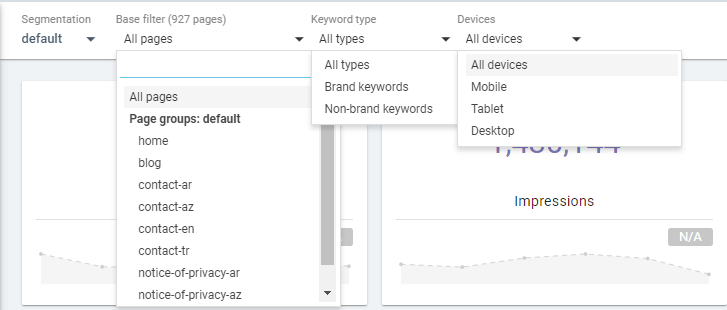

SEO Crawl and Google Search Console Data
You may see the filter options of the Ranking Report above. And, “brand”, “non-brand” query distinction is also another important feature.

In the Ranking Report section, I will use a brand-new domain for 3 months to protect the information of the company we have used so far for review. The limit of 100,000 Organic Traffic has been reached in 3 months by using Semantic SEO principles with content added in a proper hierarchical structure and with contextual links, without any off-page, branding work for this domain.

You may also want to read guidelines and articles below about the domains so that you can understand better what we mean while saying a “brand-new domain” or just “domain”.

Thus, the importance of Technical SEO and Quality content can be seen in a better way.

Google Search Console Data and SEO Crawl
You may see that most of our sites are not ranked well enough.

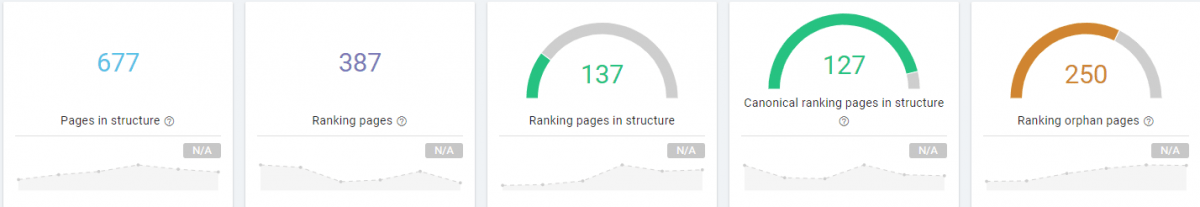

Since this is a new domain, we see that our 242 pages still exist in SERP without getting a click. This means that with OnCrawl we can see how there are differences between web pages that receive and do not receive traffic. We also can optimize these pages with our Data Scientist OnCrawl.

You may filter GSC Data simply with the URL Explorer and Quick Filters. Zero Click Pages and their Queries, Impression Trends with GSC Data.

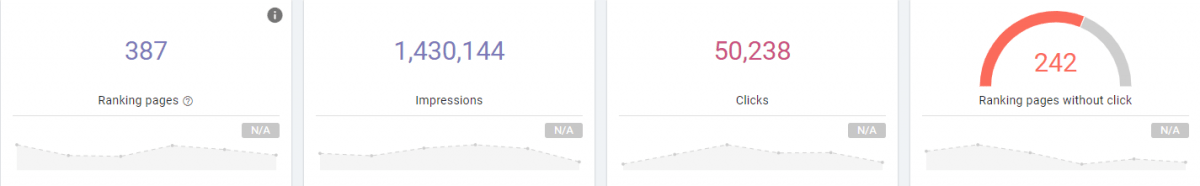

We see that our total of 387 pages that we’re able to rank in Google have 1,430,144 Impressions and 50,238 Clicks.

OnCrawl can analyze the Google Search Console data according to our web pages ‘position data along with the queries’ N-Gram Profile

The first one is called Position Impact.

Position Impact and other data columns are unique correlations for OnCrawl.

Position Impact categorizes the queries that the website has ranked according to their position and extracts the Click, Impression, CTR, and Amount of Keywords for us. We have 60 queries that we have the first rank but it generates only 20.000 Impressions. It means that most of them are “long-tail queries” with little competition.

We also can see that our main Impression Resource is coming from the queries at 4-10 rankings with over 1.000.000 Impression while the 2-3 ranking queries bring only the 114.897 impressions.

It means that our “Brand-new Domain” can be a new young active player in the market with a very efficient SEO Project but still it has ways to go and need more authority. When we check our Click Data, it also shows the potential.

Google Search Console Data and SEO Crawl
You may see the click data distribution to determine a better SEO Strategy and observe the valid situation.

We are getting more clicks with the 4-10 keywords than the Position 1 Queries. It means that if we boost our website a little bit more with better Topical Coverage and Semantic SEO Principles along with Technical SEO, it will show its real potential.

GSC Data and SEO Crawl

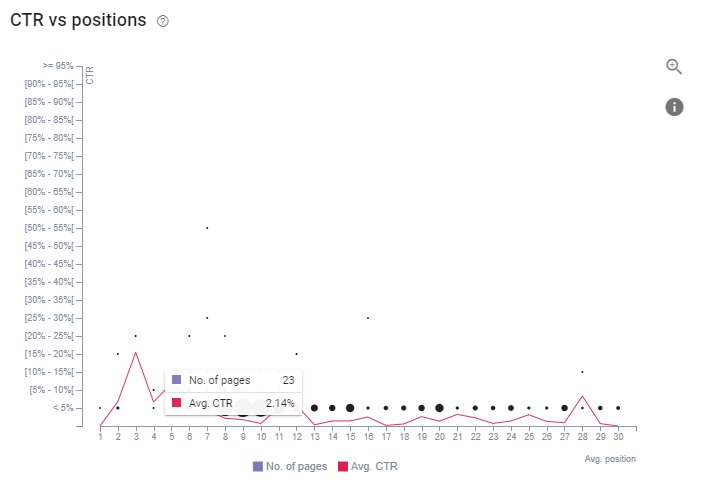

CTR Distribution for different position groups.

If we check our CTR Data, we can see that most of our web pages have a CTR of less than 10%. This shows a website where to focus on more and what to do for it. If you click any of these different colors on the bar plot, you will get the URLs behind this data.

CTR Data can be blended for other SEO-Related Columns.

You may see these URLs and their Positions easily. At the left of this screen, other verticals, columns also show complementary information.

Keyword Insights with N-Gram Analysis

Thanks to OnCrawl, you can combine Position Impact data with N-Gram Analysis and consolidate it with Google Search Console Data. Thus, you can see which types of queries bring more clicks, impressions, s and which types of queries you need to improve your website.

Also, you can unite N-Gram Analysis and Google Search Console Data Insights with the N-Gram Analysis of your website. Is there any correlation between site-wide N-Gram Analysis and GSC Performance? Or you can perform N-Gram Analysis with a site section to see whether there is a correlation between these terms and the performance on those words via GSC Data.

N-Gram Analysis
You may extract keyword insights with the N-Gram Analysis.

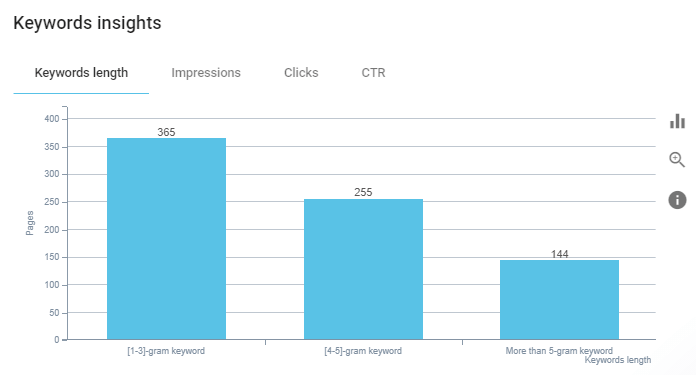

You may see the distribution of our queries according to their length and their N-Gram Analysis. This data shows that most of our queries are short-tail.

N-gram Analysis, Google Search Console Data and SEO Crawl

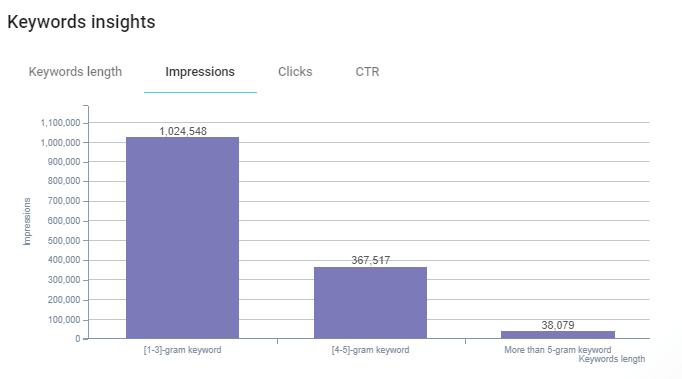

Impression distribution with N-Gram Analysis.

Also, our Impressions are coming from queries with 1-3 words mostly, queries with 4-5 words are following them. By clicking one of these bars, you also can check which URLs have which queries according to their length and what are their performance correlations with the length of queries.

Position Impact and Keyword Insights according to length and Google Search Console Data can be blended and all the related data can be seen with only one click after a comprehensive SEO Crawl.

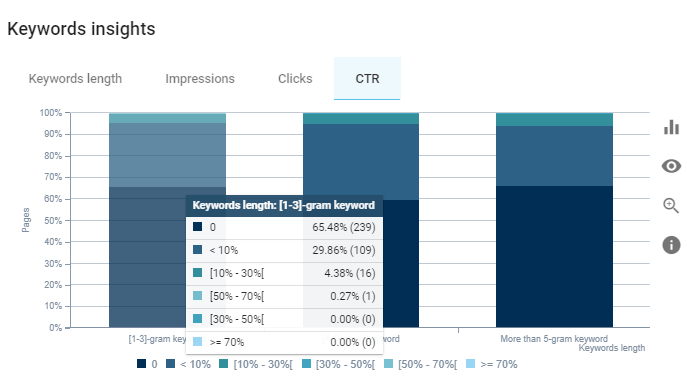

Click-Through Rate (CTR) data according to web site’s queries’ length can be found below.

Query Length and SEO Crawl
Keyword Insights, Query Length can be seen with also Click Through Rate (CTR) Data.

And we see that our web site doesn’t cover so many long-tail queries. Usually queries with 5 words and more are being satisfied by the forum content or Question & Answer content but also a website can satisfy these types of queries with its comment section and multi-granular content.

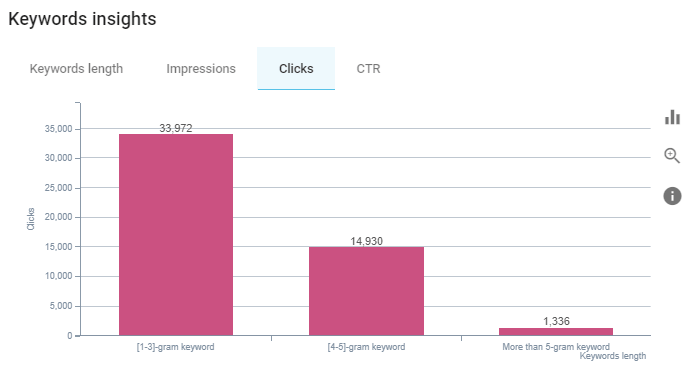

Click Data, N-Gram Analysis and SEO Crawl
Clicks and N-Gram Analysis

For this Brand-new Domain, we can say that it is definitely successful since it doesn’t have any authority and historical data compared to its competitors. Also, we can say that it can have a big potential. You can analyze the most used words in 5-gram Keywords and URLs with 0% CTR to make them more responsive to the Search Engine Results Page. OnCrawl’s Data Assistantship gives enough opportunity for this task.

Average Number of Impressions and Clicks

Average Number of Impression and Clicks Section shows the Organic Traffic Value per web page by generating a comparison between the web pages with high impression and click and the pages with low click and impression of a website.

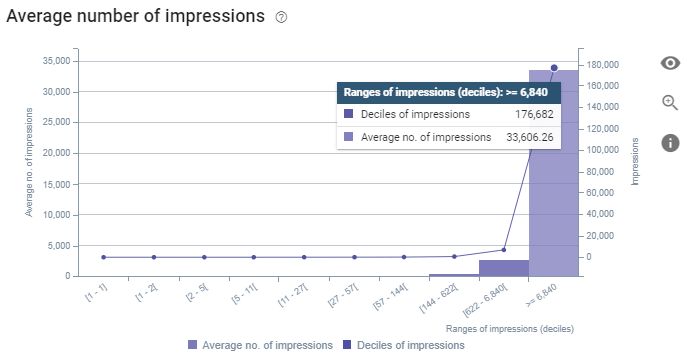

Impression Distribution and SEO Crawl Data
Average Number of Impression and distribution as “deciles” within the site.

We see that our average impression is 33.606 for the most successful pages in terms of impression. Below, you will see another example for the average clicks and deciles of impressions for the same segment.

In the graph here, each bar represents 10% of the total number of web pages. Grouping web pages by impression share rate is useful for seeing which part of the website gets more traffic.

For example, in the graphs here, we see that a very small part (30%) of the relevant website provides over 80% value for total impression and click. We find that the rest of the site is not as important. Thus, you might see the most productive section of your website, and also you can analyze these pages for finding patterns and differences.

Also, a healthy website and SEO Project should produce value with every segment of the website as much as possible. You might miss lots of SEO Potential in a graph such as this.

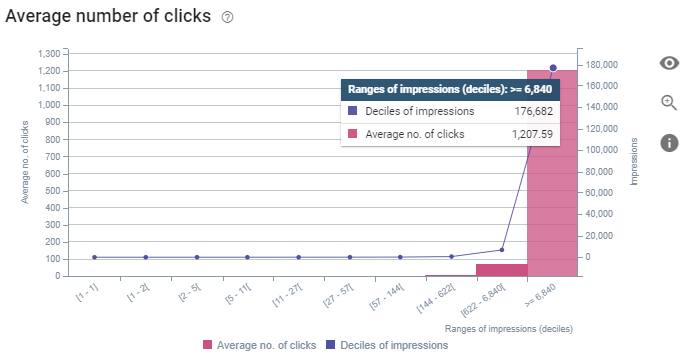

Average Number of Clicks
Average Number of Clicks as Deciles and their distribution.

CTR and Position Correlations

CTR and Positions Correlation graphics from OnCrawl’s reports are another insightful chart that can lead you to focus on different sections of the website?

CTR Distribution and Correlations within SEO Crawl Report
CTR Distribution and Correlations

For a more granular view within rows and columns, you may use the graph below.

CTR Distribution and SEO Crawl
You can filter the web pages according to their CTR Situation.

It shows the average CTR for the different URLs on different rankings along with below and above average CTR Pages. You may seek mutual points in terms of technical SEO and also CTR by filtering the URLs with a single click. Thus, you may see the difference between pages with efficient outcomes and inefficient outcomes.

Average Position Distribution for Different Page Segments

While the topic is to find the difference between successful and unsuccessful URLs, successful and failed URLs may also be aggregated into specific website segments with specific profiles and features. And OnCrawl, not surprisingly, has a solution for this as well.

Position Distribution for different web page segments. Since we have only a “blog” segment, this graph can be seen as a little bit shallow but you can enrich it with custom segmentation, easily.

If we would use the previous website as an example, we could see in more detail the difference between the successful and unsuccessful sections of the website according to various types of insurance. However, since we only have segments like “blog” and “homepage” in this example, the graph might look a little shallow.

In such cases, OnCrawl offers enough opportunity to divide the website into sections with its Custom Segmentation feature.

According to the position information, clustering can also be done with Impression and Click data.

Position Information and Clustering.

We see that we have more clicks from the pages 4-10 ranking range with the blog segment.

Ranking Indexation Report of OnCrawl

Ranking Indexation report is a section where GSC Data and Technical SEO Data are correlated to create insight together. How many of the URLs in the rankings have enough internal links or how many of them are canonical URLs or not, by appearing in this section, the potential of the website can be understood better.

indexation report oncrawl
An example of an indexation report for the SEO Crawl.

We have 677 pages on our website and only 387 of them have an impression.

250 ranking pages do not have enough internal links and 127 of them are canonical URLs.

By clicking these URLs, you may see the convenient internal link possibilities also.

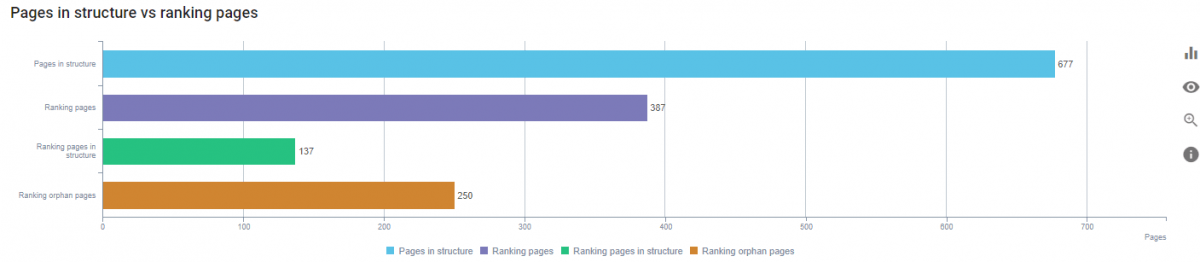

Internal Link Situation and SEO Crawl
Internal Link Situation for Ranking Sites.

You may see the same information with a more comparative visual as above.

Comperative Analysis
Ranking Pages and their Impression Share within Comparative Analysis.

Also, according to Impression and Click Data, you can segment the website by averaging this data with position data as in the previous example. We also see that some of our Non-indexable pages are being indexed, which means that our internal link structure, robots.txt file, or the canonicalization signals can be used in the wrong way.

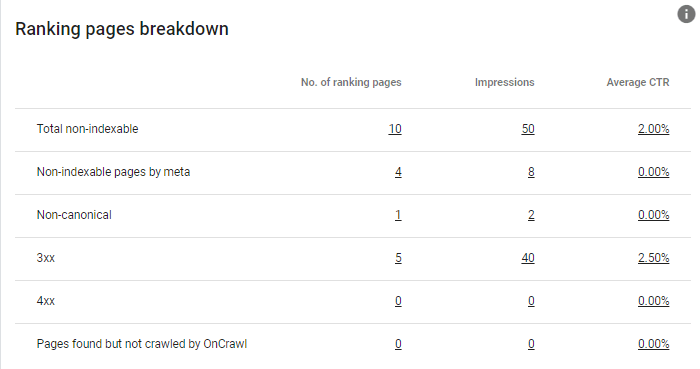

Ranking Pages Breakdown
You may see that we have pages with GSC Performance that can’t be indexable.

Also, we see that we have canonicalized URLs and Non-Canonical URLs in the SERP with impressions and clicks. Still, these can be fixed via Technical SEO. Like in the previous examples, we also may use this information by aggregating based on our website segments as below.

Pages in Structure, İndexbility Situation and SEO Crawl
You can see the web pages that are in the internal link structure and their situation in terms of indexability and website segments.

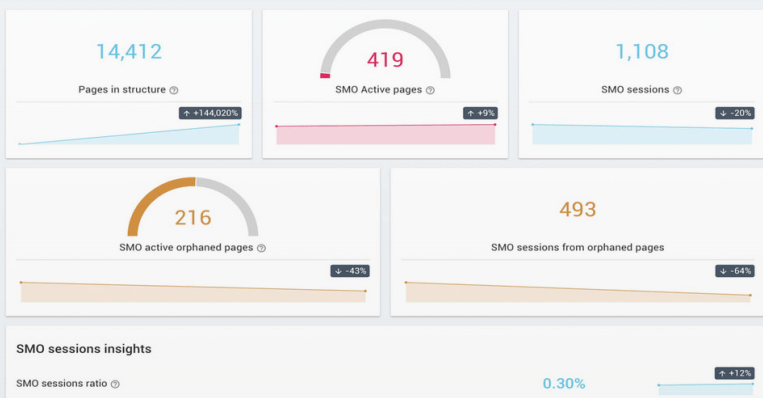

My favorite chart and data correlation about this section are actually the “Orphaned Pages” and their impression shared through the position data.

You may see the orphaned page distribution and situation for different segments and GSC Data Types.

The orange pages here are the orphaned pages while the blue pages are the pages in the structure. So, there is a clear distribution between successful and unsuccessful pages in terms of InRank and their position data as we see.

And, just linking these orphaned pages, you can increase your Organic Traffic as the “Data Shows”.

Characteristics of Ranking Pages based on GSC and SERP Data

OnCrawl has another awesome section about Ranking Factors. Imagine that by examining the web pages and their SERP Performance along with their position in the website, content, on-page SEO elements, and technical SEO situation, you may distribute a hand of ranking factors for creating insights.

Orphaned Pages and SEO Crawl
We see that most of the web pages that rank are orphaned.

Ranking Pages report consists of only the pages with 1 or more impressions. So, half of our URLs won’t be included in these report sections. Characteristics of Ranking Pages in Structure chart shows the web page amount according to different data columns as below:

  • Ranking Pages
  • Ranking Pages in Structure
  • Average Depth
  • Average InRank
  • Average Number of Inlinks
  • Average Load Time
  • Average Words
  • With an Optimized Title
Characteristics of Ranking Pages
Characteristics of Ranking Pages.
  • We see that our pages on page 3 are slower and also their content is shorter than others.
  • We see that 1-3 Position Pages have the highest InRank.
  • We see that Web Pages on the SERP’s 3th page do not have enough InRank.
  • We see that Web Pages between 4-10 are not close enough to homepage.

To make these correlations and data insights, OnCrawl also has individual charts for every intersection between columns and rows.

GSC Performance, Click Depth and SEO
One of the most unique charts for SEO Performance and Click Depth from OnCrawl.

Ranking pages and their distance from the Homepage correlation can be seen. InRank and their distribution in terms of impression data.

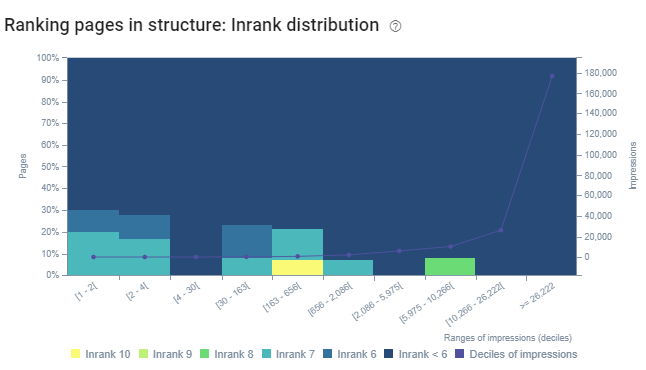

InRank Distribution Chart for SEO Crawl Report
InRank Distribution Chart for Pages in the Structure.

Load Time and Performance Distribution can be seen below.

Load Time Distribution for SEO Crawl Report
Ranking Pages in the Structure, Load Time Distribution.

We see that pages that are slow also have lesser impressions generally. So, improving web page performance can create a change in this chart, you may check the quick fixes for web page load timing and experience and then you can use the Crawl over Crawl feature to see differences.

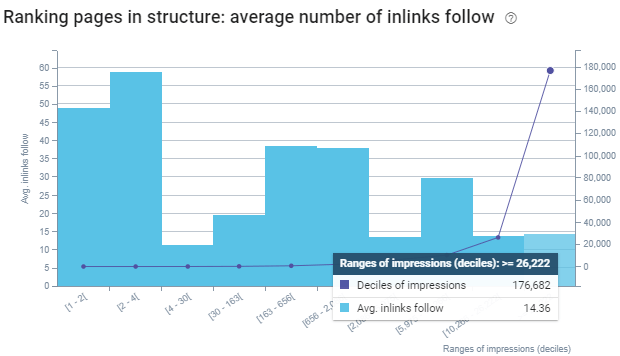

Average Number of InLinks
Average Number of InLinks as Dofollow.

In terms of Inlink amount, we see that pages with the highest impression have lesser internal links compared to the others. Examining the internal links’ character, position and types can help in this situation.

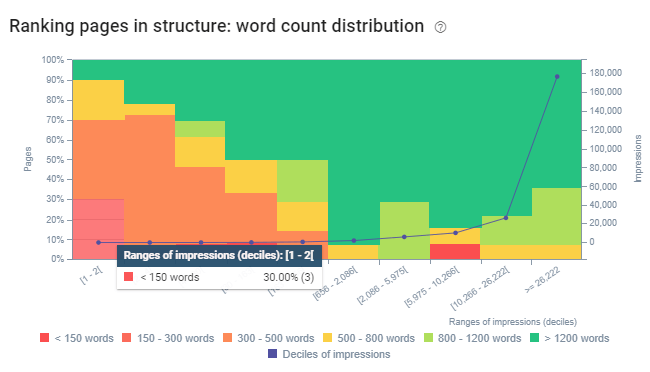

Word Count and SEO Crawl
You can see that word count is a strong signal for SEO Performance. Another unique Chart from OnCrawl’s SEO Crawl Reports.

I think “word count distribution” is one of the strongest signals until now. We know that content length is not a ranking signal or factor but there can be a correlation between content granularity, detail level, and word count.

And, I might open a small paragraph here. There is a difference between a factor and a signal. Word Count is not a ranking factor but it is a related and helper signal for ranking and quality algorithms to determine the quality. Because there is a strict correlation between the information amount and quality within the content and word count, usually. That’s why we have “Word Count”, in OnCrawl.

Impression Distribution

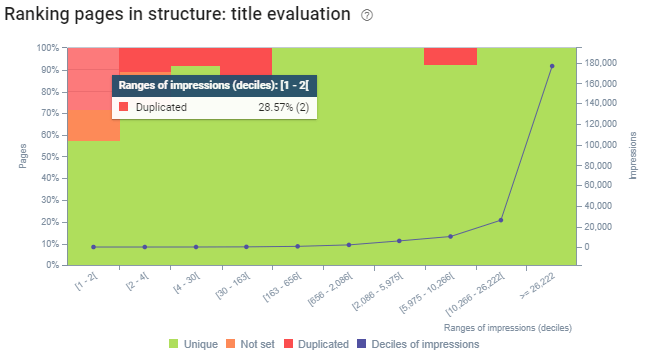

You may see that duplicate titles have a negative effect on SEO with a strong correlation.

We see that Optimized Meta Titles have better ranking performance. In OnCrawl, you can measure the correlation between Meta Tag Length and CTR with repeated crawls.

Description and CTR Correlation
CTR and Description Length Correlation.

We see that shorter Descriptions and their CTR Inefficiency can be related. By clicking these bars, you may check the characteristics of these URLs. You may check the CTR and Structured Data Correlation as below.

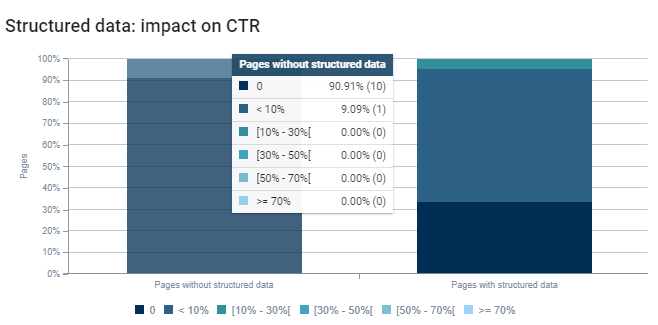

CTR and Structured Data Correlation
Structured Data and CTR Correlation

We see that pages without structured data have a lower CTR. We also can group the web pages with higher CTR without structured data and pages with higher CTR with structured data to make a deep comparison along with the Structured Data Type and Organic Traffic Performance charts as I showed before.

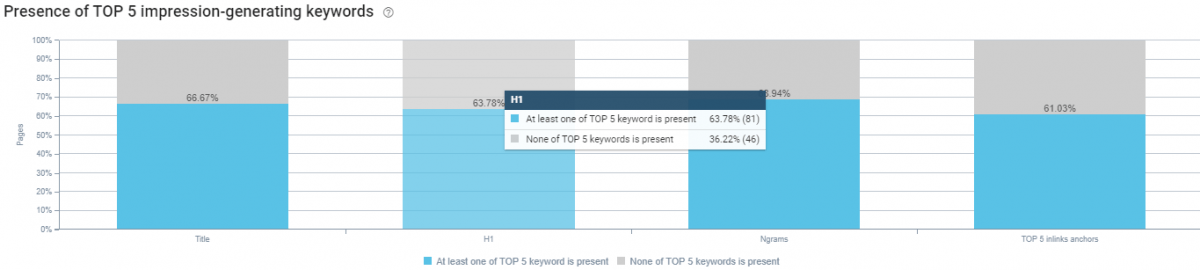

Most Important Queries
Impression Generating Queries and their existence within the N-Gram Analysis, Heading Tags and Titles, Anchor Texts.

Also, we can see the 5 Impression-generating queries in the anchor texts, title tags, h1 tags, and N-Gram analysis. So you may find more queries to acquire better visibility.

OnCrawl Data Explorer and Single URL Examination Attributes

All the reports I mentioned during OnCrawl Review are different types of crawl and correlation reports, which are divided into three, site-wide, segment-wide, and URL-based. It is a great advantage to see the fast transitions between all these variations with different columns, filters, and quick filters specific to On-page, Technical SEO, and GSC Data to individual URLs. In addition, OnCrawl allows filtering different types of URLs and data related to them with “and” and “or” logical operands.

And, there is also an important principle of OnCrawl for helping SEOs. “You need to have access to all the data for your crawl analysis”. In other words, via Data Explorer, you can export your data as CSV or spreadsheet with unlimited rows. And, with OnCrawl you can create probably more than 300 data columns for your analysis. I recommend you to check OnCrawl’s Data Explorer and “Export” option without any limitation for a Broad SEO Analysis.

Custom DashBoard Builder of OnCrawl

It is possible to create your own custom data extraction dashboard with OnCrawl. Thus, it is possible to get insight more clearly by combining different data taken from different points. Below you will see an example for Indexing and Crawling.

For instance, we have mentioned lots of terms from the SEO Discipline, we can collect all the “orphaned page”, “less crawled page” and “zero-click pages” together with every possible data correlation graph to profile them in a better way within a single report screen.

A View from the Custom Dashboard Builder of OnCrawl.

After you check the necessary data, you may clear the dashboard and you can select another section from the left sidebar. For instance, if you just want to see information about the Image Tags, you may see it clearly:

Images, Web Pages and SEO Crawl
You may see the web pages distribution in terms of image existence and alt tags.

In 111 of the pages we have at least one image without an alt tag, it might be the “author photo” or the featured image of the post, you can see it just click the bar of the bar plot. You will see an example below for the pages with images with one missing alt tag.

SEO Crawl and URL Filtering
You may filter all these pages with special columns.

If you click the SEO Tags from the sidebar, you will see another “Quick Diagnostic Dashboard” as below.

SEO Crawl Report and Quick Diagnostic Dashboard
Quick Diagnostic Dashboard of OnCrawl’s SEO Crawl Reports.

We see that we have 265 Duplicate H1 and 223 Duplicate Meta Description but only some of them are actually problematic.

You also can see the Dashboard Builder’s sidebar and option hierarchy to understand better what you can extract from here.

SEO Dashboard Builder View.

So, you can use Log Files, Google Search Console, Google Analytics, Majestic, and AT Internet for data blending. Every section has its own customizable sub-sections. Since I didn’t connect the Google Analytics or any other data sources except the Google Search Console for this crawl, I will show just an example from Google Search Console.

An example view of Dashboard Creation after an SEO Crawl.

As you can see I selected a minor sub-section from the GSC option of Dashboard Builder and I started to use it for Keyword Insights that I showed before.

How To Download a Report from OnCrawl?

To download a report from OnCrawl, simply click on the PDF Option in the upper right corner. If you want, you can download the sample you set up with the Dashboard Builder or you can download only a part of the crawl report, and downloading the whole report is an option. Depending on the data source you connect and the quality of the scan you perform, OnCrawl reports can exceed 120 pages.

I think it would be more accurate to download the reports in more customized pieces. Below, you will see a screenshot of my dashboard builder’s PDF Print process.

SEO Crawl Export View.
SEO Crawl Export View.

OnCrawl URL Details and Data Explorer

During the review, I showed you what can be done with the OnCrawl Data Explorer and URL Details options. Data Explorer is the area where you can access with a single click from any OnCrawl report section, where the URLs you target and filter are displayed with relevant metrics.

URL Details is the area where any of the URLs displayed with filtered and targeted metrics are selected, with deeper data and different data dimensions. OnCrawl’s Data Explorer has useful “Quickfilters” and also adds filters. As I can count, there are more than 20 additional filters that show the granularity and detail level of OnCrawl’s approach. And, you can save your special “query combinations for special SEO Tasks and Analysis.”

Quickfilters for SEO Crawl Report
URL Details and Quickfilters.

OnCrawl Query Language

OnCrawl Query Language is a data filtering system of various variations that can filter possibly more than 2000 separate information about a website. With the logical operands “and” and “or” commands, you can see the missing points and improvable points on your website in a much more special way.

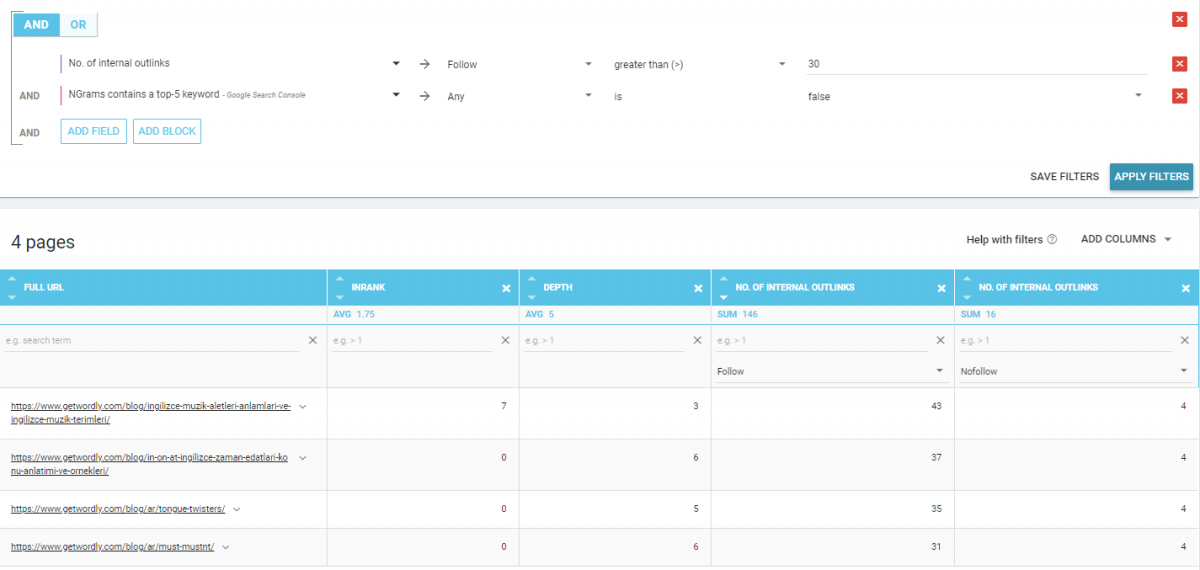

For example, below, I can filter URLs with more than 30 internal links that do not contain the 5 words that bring the most traffic in N-Gram analysis and see their outlink, internal link, InRank, and Depth values.

SEO Data Filtering and Query Language
Query Language Example.

If I click one of these URLs, I will be redirected to the URL Report of OnCrawl with a deep analysis.

OnCrawl URL Details Report System

The Oncrawl URL Details section is divided into three as Crawl Report, Ranking Report, and View Source.

The Crawl Report of URL Details Report of OnCrawl

The Crawl Report section shows the information of the URL’s Pagination, InLinks, Internal Popularity, Redirections, Hreflang, Canonical, Open Graph, Twitter Cards, Structured Data, Headings, Images regarding numerous data. Below you can see how all this data appears in OnCrawl reports for a URL.

A URL Examination and Details Example Screen.

You may see the Structured Data of the chosen URL below.

Structured Data for URL Details.
Structured Data Examples for the URL that I chose.

The Crawl Report section, which also has the Editorial Insights section, also contains information about the content of the relevant page.

Content Examination of the URL.
Editorial Insights for the chosen URL.

We see the Language, word count, and text/code ratio. Also, it has a URL-based N-Gram Analysis as below.

N-Gram Analysis for Single Video.

You may check every individual content’s N-Gram Analysis and their performance on these queries thanks to the Data Blending feature of OnCrawl. Also, you may compare your content’s N-Gram analysis with its symmetric competitors from the SERP.

It also shows the request’s size and loads time during the crawl in the Performance Section.

Single URL, Performance Section for SEO Crawl Report
A Single URL, Performance Section.

OnCrawl’s Ranking Report in URL Details

In the Ranking Report, we can see the individual URL’s performance according to the Google Search Console Data. You also can see the top-performing queries based on device types for the specific URL along with the Click, CTR, Impression, and Average Position data.

I have filtered a URL from the Data Explorer section as below.

Ranking Report for URL
Ranking Report Example for Single URL. You may customize the columns as you want.

Then, I have moved to the Ranking Report section of the URL Details as below.

URL-based Audit and All the Necessary Information exist here, including the “Page Belongs to following groups” or Source Code or Ranking Report…

You may see that it has all the necessary details for a URL in terms of Performance Audit based on Google Search Console Data. URL’s backlink data also can be seen via Majestic. It also checks the top-performing keywords for the specific URL and tries to see whether these words are in headings, title tags,s and anchor texts for you.

View Source Section of URL Details Report of OnCrawl

In this section, you may check the URL’s source code along with the Response Headers. It is easy to access for the Technical SEOs to see the source code for deeper audit via URL Details. If you see that the page has a conflicting canonical tag, you may check it or if it has a conflicting content type because of the response headers, again, you can check it easily.

View the Source Code of the URL Details Report.

OnCrawl Log Analysis and SEO Metric Correlations

OnCrawl can unify your logs with your SEO Crawl Report. Thus, you may extract even more insights from your website’s general SEO Performance. Log Analysis is actually a kind of “guessing” art based on “aggregation” and “correlation” of different data dimensions. Which Googlebot type crawled which page the most? After the crawling frequency of Googlebot increased, did you see a ranking performance increase or the contrary? There are lots of insights that you can understand from the Log Files of a website server.

SEO Crawl and Log File Analysis
Log File Analysis Options.

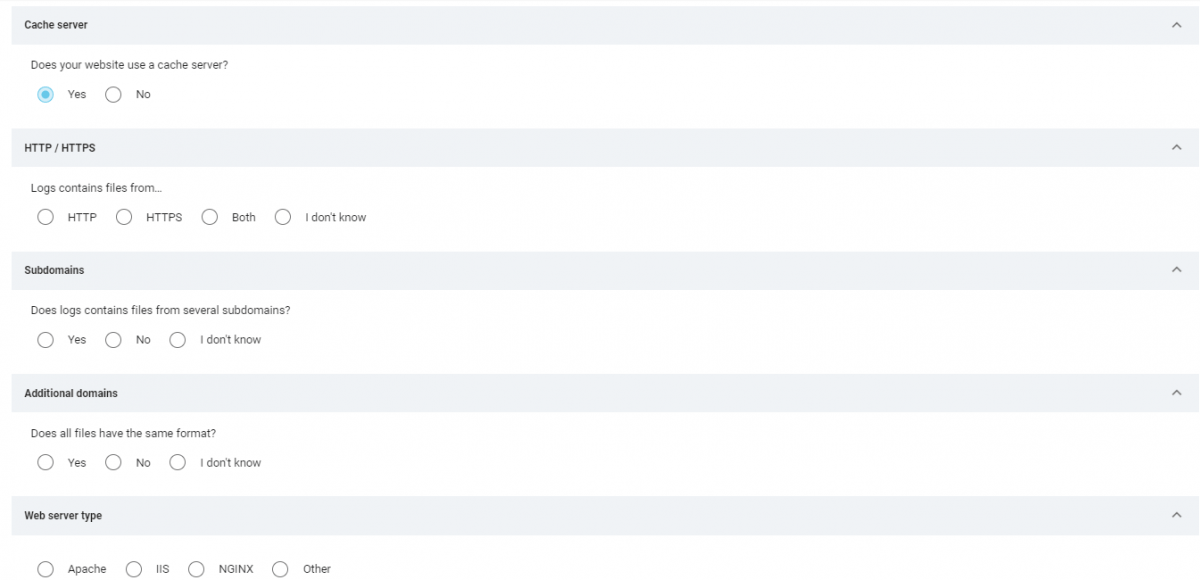

During the crawling process, you may configure your log file’s interpretation style according to whether you use a Cache Server, HTTPS, Subdomains, Additional Domains, and Web server type or not.

Additionally, OnCrawl asks your server type too, if you don’t know your server type, before trying to configure Log File Interpretation, consult your Dev. Team.

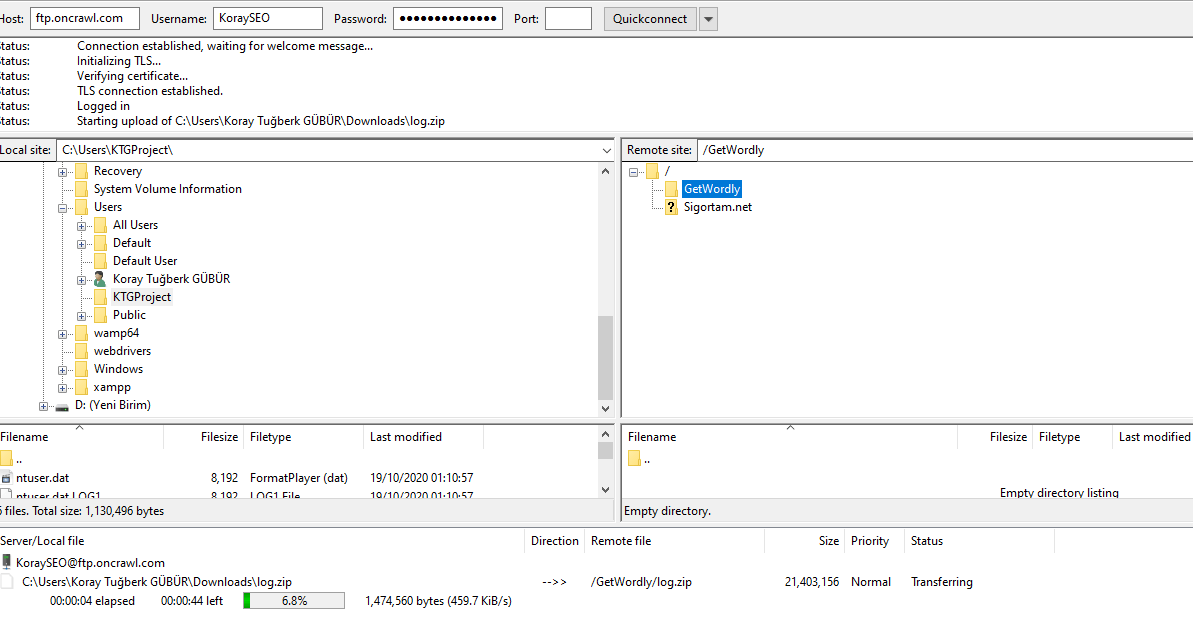

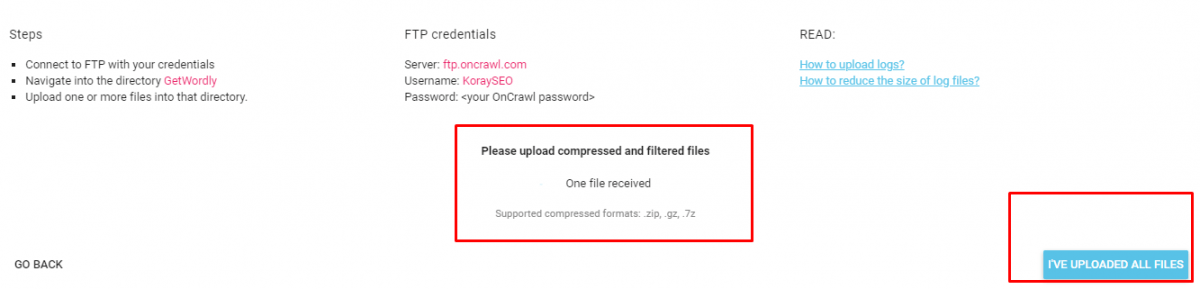

To load and use your log files during the SEO Crawl of OnCrawl, you need to upload your log file to the “ftp.oncrawl.com” address. It can be used via your OnCrawl credentials.

FTP Log File Analysis.
FTP Log File Analysis.

When you enter the “ftp.oncrawl.com” address, you will see your SEO Projects as folders. You need to load your log files into one of these folders to perform a LOG File Analysis.

Log File Section
The loaded log file has been noticed, as it can be seen.

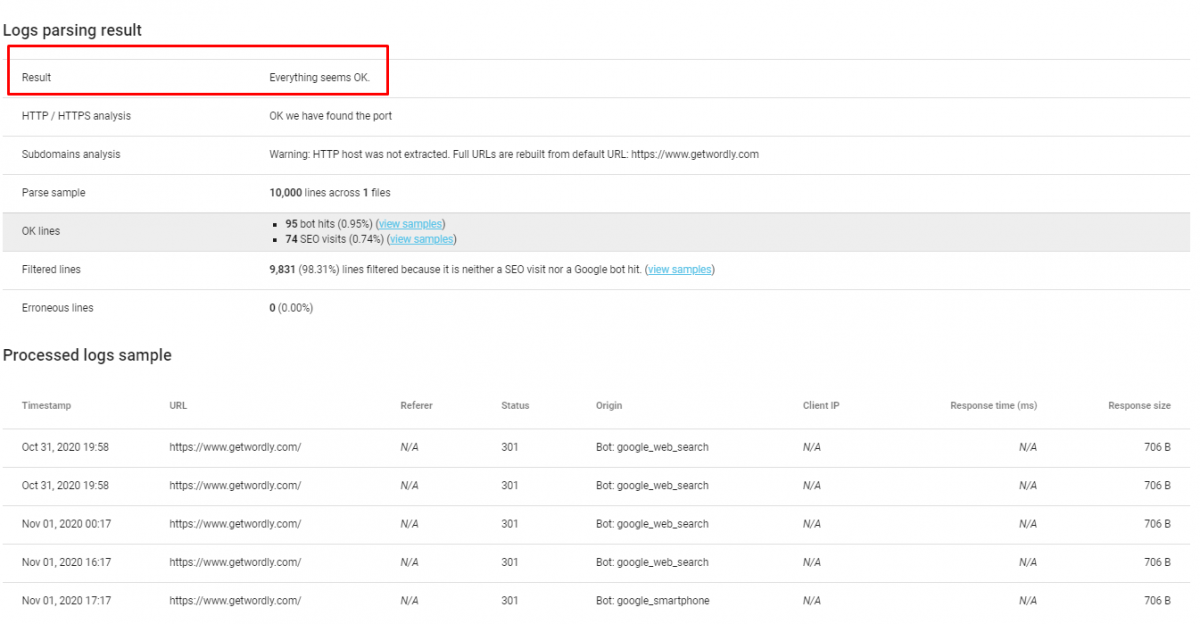

When you load your log files, you will see that OnCrawl detects your log file as “loaded”.

Log File View
You may see the view of the log files.

Then, you may see your log files on your screen as they are being extracted to the “.zip” file that includes all the server logs. OnCrawl can differentiate the Googlebot types and also client visits and Search Engine Crawlers’ visits.

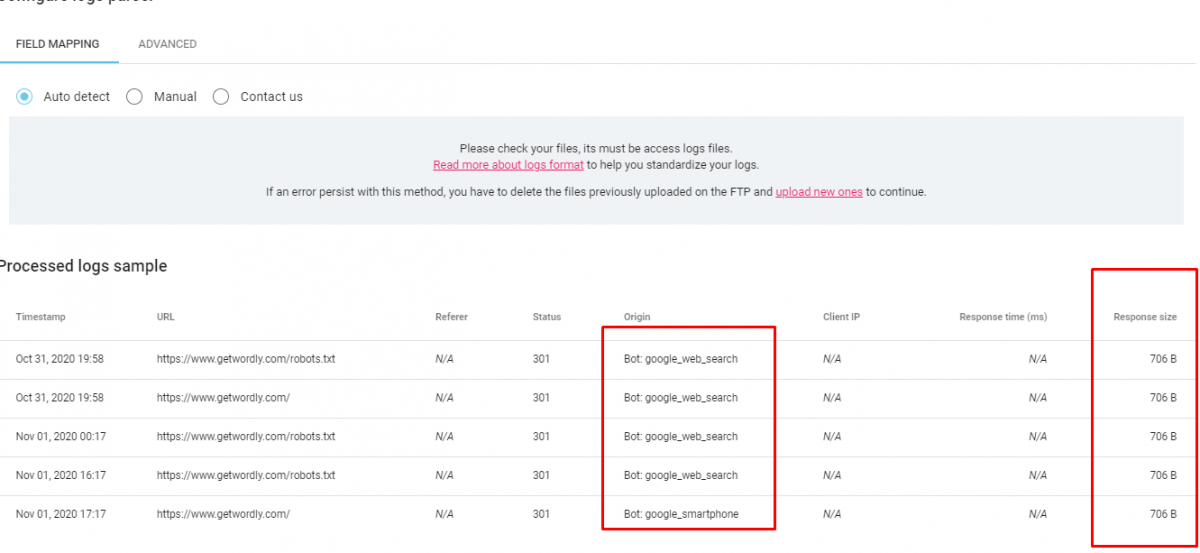

If your log file can’t be read properly, you can determine different column names to help OnCrawl to detect the correct version of the log files as below.

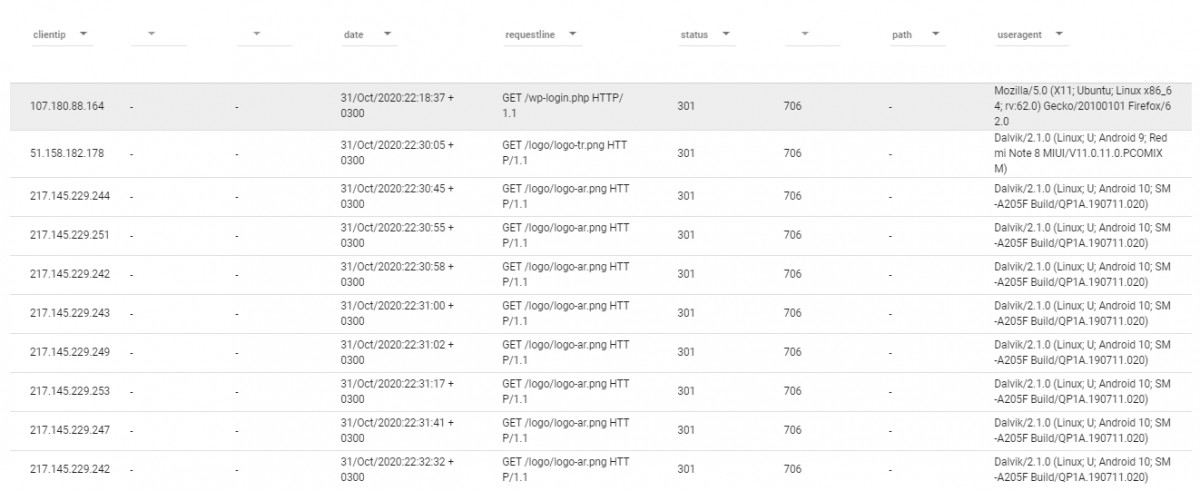

Log File Organization
You may change the column names for arranging the log file.

The most important section here is actually the “referrer”, if you do not specify a “referrer” you won’t get the “Everything seems Okay” signal from OnCrawl. When you perform everything as it should be, you will get the “Everything Seems OK.” signal.

Log File Information
Log File Information.

You may press the Configure the Log Files option to load your log files for SEO Analysis. During the SEO Crawl, you will see a dashboard as below.

log file examples
Log Monitoring view.

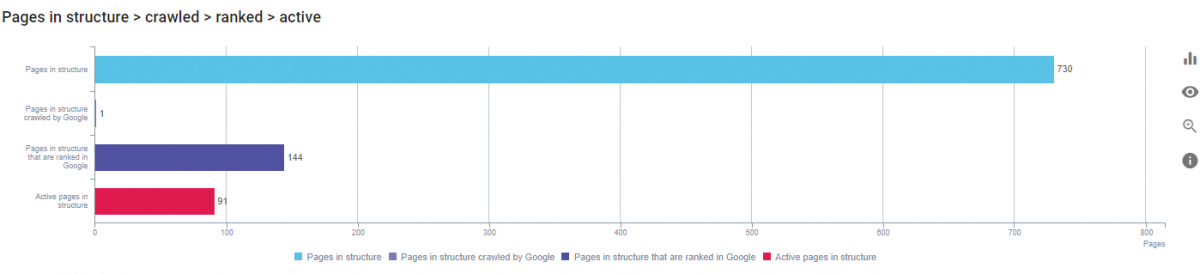

Below, you can see the situation of the web pages according to their general situation.

Log File Analysis
Log Analysis for different web page segments.

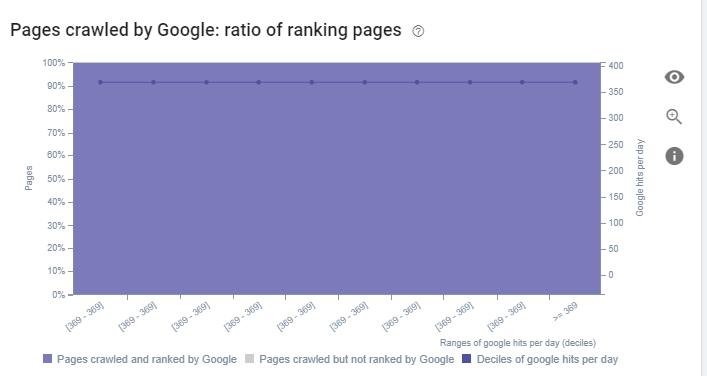

You also can see the relationship between “being crawled” and “being ranked” by Google. Thus, you may see which pages are problematic or when does Google usually ranks pages after crawling. Also, extracting some other insights such as crawl frequency and ranked query correlation can be possible.

Googlebot Hits and Ranking Correlation
Ratio of Ranking Pages and Googlebot Hits.

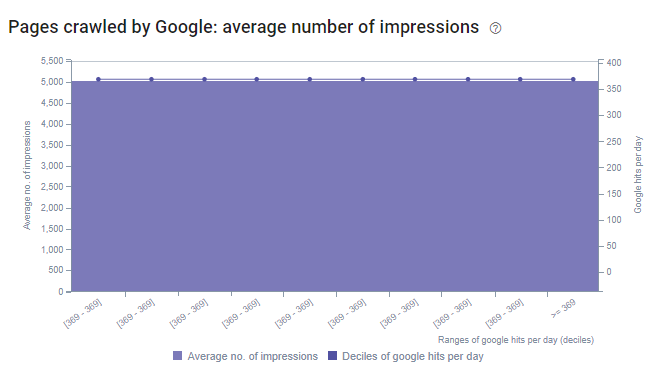

You may extract some other correlations between crawled web pages, crawl amount and impressions are being gotten from the SERP. You may see that whenever a web page is being crawled, it will take more attention from SERP. Crawl frequency and crawl demand is other aspects of “search demand”. If people search and find your web page, Google will give more weight to crawling that specific web page. Also, “backlink”, “internal link” and “crawl rate” are usually correlative to each other along with “page speed”.

Average Number of Impressions and Log Files.
Via OnCrawl, you can perform a detailed Log Analysis and correlate the data between different columns.

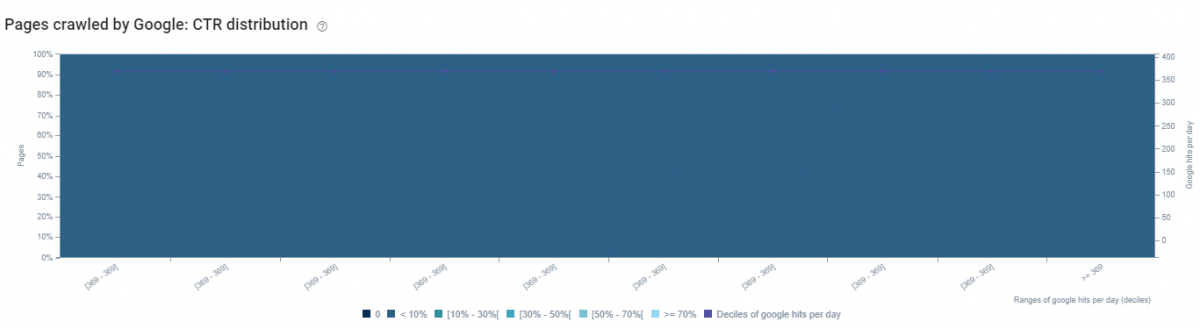

Crawled web pages and CTR Distribution can be seen below as another Crawling Data and Google Search Console Data correlation. Like in Impression and Crawling Correlation, CTR, Average Position, and Clicks can be related to crawling. And, also you may see why some pages are getting more crawled by Google but why not have enough CTR. Filter these pages and try to get some mutual points via OnCrawl’s Data Scientist vision.

CTR Distribution and Log Analysis
CTR Distribution and Log Analysis.

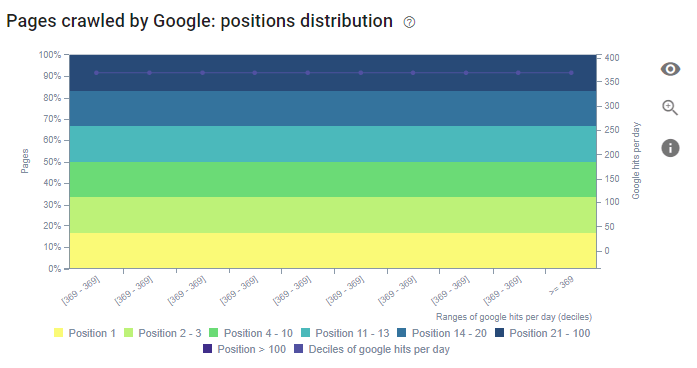

And, Crawled Web Page’s position distribution and their crawl rate can be seen here, can be compared to the different timelines after making some changes.

Log Files and Position Distribution
Log Files and Position Distribution.

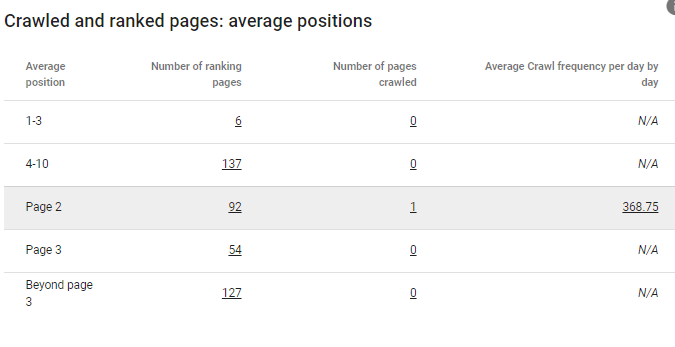

Below, you will see the average positions of web pages and their crawl frequency. According to the log files, web pages on the second page are being crawled most. This can be true because of the excessive organic traffic growth, our server has collapsed for three hours while I am writing this review this week. If the server can’t respond to the Googlebot in the necessary time span, Googlebot decreases its crawl rate and also tries to fetch the new content. And, we are publishing three articles in a day from 3 different languages on this site. So, Google might want to focus on other web pages more. Also, the logs that I am using only encapsulate the last 7 days that include a server failing.

Log Files and Importance
Crawled and Ranked Pages and their Average Positions.

You may also see some representative graphs to show that crawled page amount and page segmentation can be analyzed.

Crawled Pages and Ranking Situation
Crawled and Ranked Pages According to Web Page Segments.

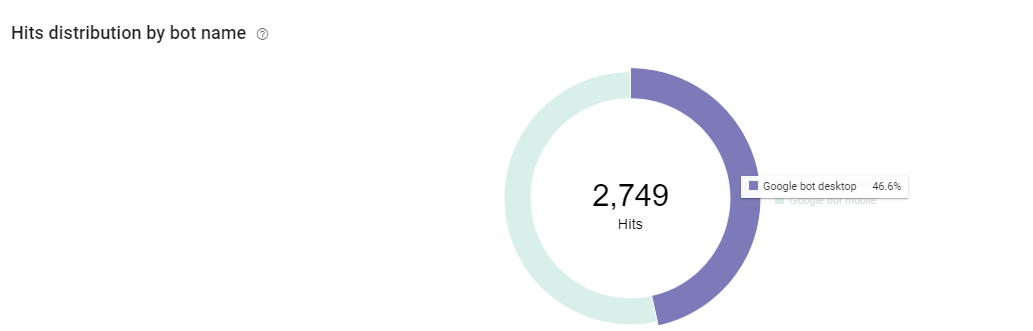

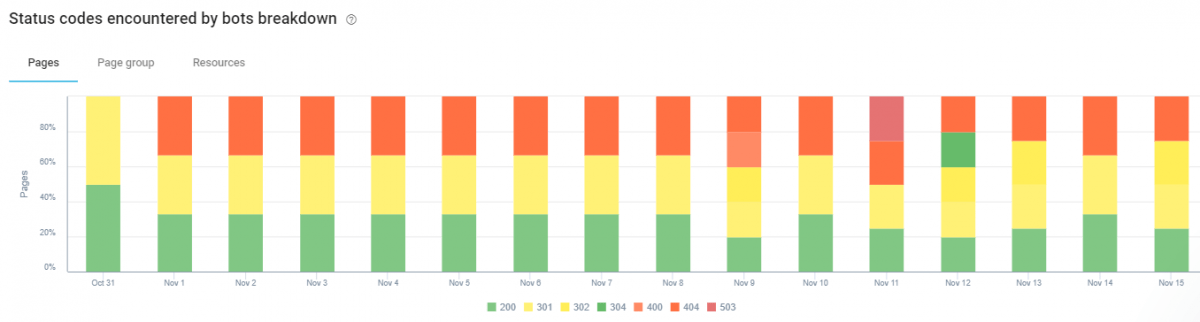

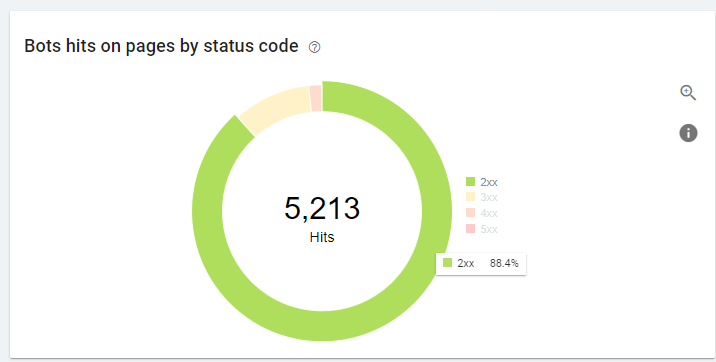

Also, you can check the status codes of Googlebot hits:

bot hits status codes
Bot Hits and Their Status Codes.

You also can check the status code distribution of Googlebot hits according to page depth and page segments, Below, you will see “SEO Visits” and their distribution in the timeline, after the server collapse, we had experienced a “Featured Snippet loss” as site-wide.

Bot Hits and SEO Visits
Bot Hits and SEO Visits

You also can check the status code distribution of Googlebot hits according to page depth and page segments, Below, you will see “SEO Visits” and their distribution in the timeline, after the server collapse, we had experienced a “Featured Snippet loss” as site-wide.

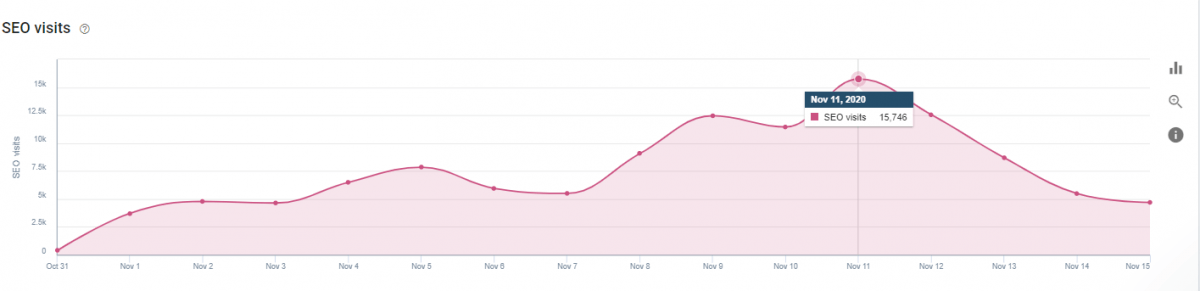

Below, you may see the SEO Visits amount and Mobile/Desktop Visit Comparison. Since log files include server problems, we see some empty slots here but the “Fresh Rank” term is a new term. It means the time difference between the first Googlebot hit for a web page and its first organic traffic visit.

seo visits
Bot Hits and the General SEO Metrics.

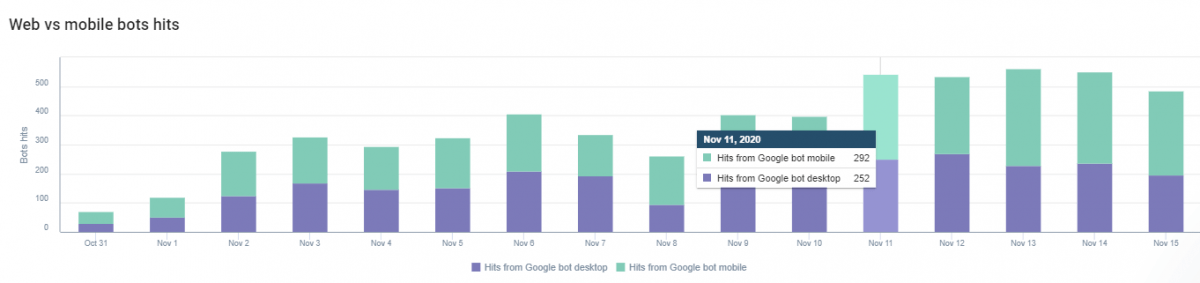

There is a correlation between the Mobile and Desktop Device usage on organic search visits and Googlebot hits and Googlebot Smartphone hits. Google adjusts its crawl preferences according to the target audience. You may see the targeted audience’s device profile on different days.

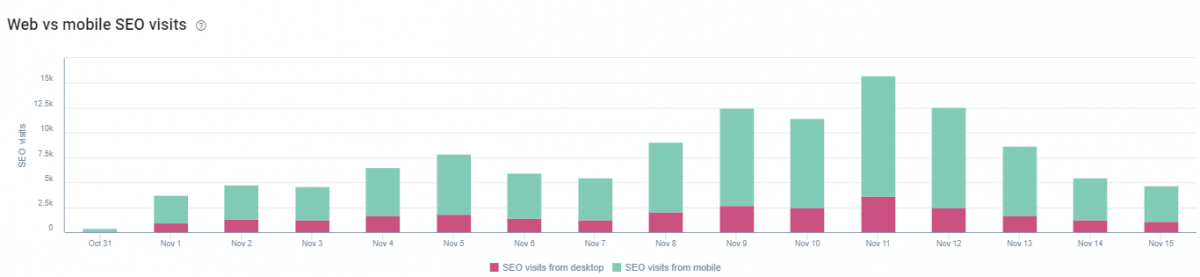

Desktop and Mobile SEO Visits
Desktop and Mobile SEO Visits.

There is a correlation between the Mobile and Desktop Device usage on organic search visits and Googlebot hits and Googlebot Smartphone hits. Google adjusts its crawl preferences according to the target audience. You may see the targeted audience’s device profile on different days.

And this is Google’s user-agent preference for device-type. After the traffic increase and server collapse, we see that Googlebot Smartphone is preferred more by Google. It might be related to the Search Engine’s reevaluation process of the website.

According to Google, if Google’s crawlers come to your website with mobile user-agent in 3/2 proportion, it means that your site might have been moved to the Mobile-first Indexing. And, I know some cases that Google might start to use “mobile-first indexing” for a website and then switch back. Also, before sending a notification message via Google Search Console, Google can change the main indexing crawler for your website. So, you might see these types of changes and situations and more from OnCrawl’s Log Analysis Reports.

User-agent Differences for Googlebot
Web vs Mobile Bot Hits.

According to Google, if Google’s crawlers come to your website with mobile user-agent in 3/2 proportion, it means that your site might have been moved to the Mobile-first Indexing. And, I know some cases that Google might start to use “mobile-first indexing” for a website and then switch back. Also, before sending a notification message via Google Search Console, Google can change the main indexing crawler for your website. So, you might see these types of changes and situations and more from OnCrawl’s Log Analysis Reports.

Below, you will see the Googlebot hit types.

Googlebot User-agent Comparison
Googlebot Hit Types Comparison.

Below, you will see the Googlebot hit types.

You also can see that not just Googlebot User-agent type, also Googlebot activity is correlative with SEO Visit Amount.

Crawl Frequency Per Day
Crawl Frequency per Day.

You also can see that not just Googlebot User-agent type, also Googlebot activity is correlative with SEO Visit Amount.

Below, you will see a Crawl Behavior Breakdown for only our Homepage.

Crawl Behavior for Googlebot.

Below, you will see a Crawl Behavior Breakdown for only our Homepage.

You also can see status code distribution per resource, page, and page group (segment).

Status Codes and Bots Breakdown
Status Codes and Bots Breakdown

You also can see status code distribution per resource, page, and page group (segment).

Search Engine Advertising and Google’s Ads-related Googlebot behaviors can be audited by OnCrawl too, thus, you may check your advertisements on the website’s crawl rate and be perceived by Google systems. Also, there might be similar correlations between Ads Crawl Rate and Ads Performance like in SEO.

OnCrawl Data Studio Connector

It is one of the rare SEO Crawlers with OnCrawl Data Studio Connector. Using the OnCrawl Data Studio Connector, it is possible to transfer all the data obtained as a result of the Crawl to Data Studio with live data with a single click.

OnCrawl will perform a presentation-ready DataStudio template by sequencing all required pages and data as follows.

To use OnCrawl’s Data Studio Connector, you need Google Analytics and Data Blending with OnCrawl’s connector.

OnCrawl Data Studio Connector
OnCrawl Data Studio Connector

To use OnCrawl’s Data Studio Connector, you need Google Analytics and Data Blending with OnCrawl’s connector.

In OnCrawl Data Sources, you will see OnCrawl Connector, when you choose it, you need to make a preference between your sub-folders (projects like in Log Analysis Section’s FTP Connector).

SEO Report and Data Studio
Data Studio Connector for OnCrawl’s SEO Crawl Report’s

In OnCrawl Data Sources, you will see OnCrawl Connector, when you choose it, you need to make a preference between your sub-folders (projects like in Log Analysis Section’s FTP Connector).

You should choose which project you want to project in Data Studio. Later, you need to connect your Google Analytics Account, and also, thanks to OnCrawl, you will learn how to create custom dimensions, simply. After adding Google Analytics as a data source, just click the “Add A Field” button.

Data Studio SEO and Custom Metric Creation
Custom Metric Creation for SEO Reports in Data Studio

You should choose which project you want to project in Data Studio. Later, you need to connect your Google Analytics Account, and also, thanks to OnCrawl, you will learn how to create custom dimensions, simply. After adding Google Analytics as a data source, just click the “Add A Field” button. You can create custom fields and metrics in this section, we are concentrating the Landing Page name and the full URL of the root domain name so that we can use URLs as our “join keys” in the data blending phase.

SEO Data Blending
SEO Data Blending

You can create custom fields and metrics in this section, we are concentrating the Landing Page name and the full URL of the root domain name so that we can use URLs as our “join keys” in the data blending phase. After this section, you will just need to use a data blending feature.

seo data blending data studio
SEO Data Blending and Crawl Data

In the Data Blending section match the Join Keys so that you can blend data from different sources for the “same column” which is the full URLs of the website in this example. After this section, you can continue to create your own custom dashboard as you want.

OnCrawl Custom Segmentation

If you don’t use breakdowns in your URL, you can change your “website segmentation” methodology via Custom Segmentation so that the data that will be extracted from your website can be more accurate in terms of SEO Insights.

SEO Crawl and Custom Web Page Segmentation
You can use custom segmentation with the most creative ways for a better SEO Analysis via SEO Crawls.

You may use different filters, conditions, and rules for website segmentation, but I always recommend people to use contextual hierarchy in their URLs that comply with the breadcrumb structure. So, the URL Path option as default for website segmentation can be the best option here.

OnCrawl’s Custom Segmentation system provides a great data-driven opportunity for SEO Analysis with its limitlessness. First, the unique thing about OnCrawl at this point is that you can reinterpret your past SEO Crawl Reports with any custom website segmentation you create.

With Custom Segmentation, you can separate web pages by “Scraping” as those containing “short intro sentences” and “long intro sentences”. Or, you can use it to filter transactional pages that receive traffic from informative queries in Google Search Console. You can filter the most lucrative web pages and see if they have enough Internal Link Popularity. While doing the Technical SEO Audit of your most important pages, you can segment your website according to speed differences. Or, by segmenting a category according to the brands of the products they contain, you can find the chance to examine all SEO Performance Metrics, Signals, and Factors based on another creative and unique custom segmentation. In other words, the Custom Segmentation feature of OnCrawl is a zoom that enables all Data-Driven SEO Analysis methods to be used.

Social Media and Backlink Audits of OnCrawl

OnCrawl also has Social Media and Backlink Audits for websites. Social Media Posts, Links and Engagement can affect your website’s brand authority, power, and also brand search demand. Also, you may see that social media activity can affect your Brand SERP along with the crawl rate from search engine crawlers. We know that Google has used Social Media Accounts, Links, and Engagement as a ranking factor in the past. For the last 5 years, Google spokespersons said that they do not use Social Media related metrics for ranking signals but still we know that these affect rankings indirectly, and also they might be direct effects secretly. Nevertheless, Social Media traffic and engagement are an important part of marketing.

OnCrawl can extract your Social Media Rankings, Activities, and more, a webmaster can need this information for social media projects along with their competitors:

  • Post amount
  • Post timing
  • Post hashtags
  • Post engagement rate
  • Post reach amount
  • Audience Amount
  • Audience Personas
  • Most shared web pages
  • Brand mentions
  • Sentiment Analysis
  • All of these information and correlation, aggregation, causation insights with other SEO Metrics including Log Analysis and Crawl, Ranking, Indexing Reports.

At the moment, I don’t have access to OnCrawl’s Social Media Report, but I believe OnCrawl has a system to extract this information from different social media platforms. Below, you will see an example of a screenshot from OnCrawl’s documentation for the Social Media Report. As I learned from Dear Rebecca Berbel, OnCrawl can extract Social Media Traffic information via Google Analytics or other types of Analytics Tools if you have connected them to the OnCrawl.

Social Media, Backlink Audits during SEO Crawls
Social Media and Backlink Audits

Backlink Reports of OnCrawl

During the review, you might see different types of backlink mentions from OnCrawl reports. OnCrawl report has an important place for the “internal links”, it would be awkward to exclude external links from this type of SEO Vision. To use OnCrawl Backlink Report, you need a Majestic Account and API Token, since I don’t have these, I can’t show you a report example. But, I believe related to the off-page profile of a brand entity, the information below is required:

  • Most linked web pages
  • Referrer domains
  • Referrer domain IP
  • Referrer domain SEO Metrics
  • Linking frequency
  • Anchor texts
  • Linking web page’s situation in that domain
  • Linking web page’s SEO Performance
  • Linking web page’s content
  • Links’ position, style and clickability possibility
  • Links and their causation, aggregation, correlation insights with other SEO related metrics.

Below, you will see an example Backlink Report Screenshot from OnCrawl.

SEO Crawl and Backlinks by Depth
SEO Crawls and Backlinks by Depth.

Basically, it is the same graphs, metrics, and visualizations with internal links except it are being calculated as external links with the possibilities below.

In OnCrawl’s Backlink Reports, you also can see Majestic’s Trustflow and Citationflow Values. If you enable the “Log Monitoring” option with OnCrawl’s Crawl Configuration system, you can see the distribution of backlinks for each URL, each website segment and their correlation to the Googlebot hits and organic traffic. With multiple crawls over time, you may see the Backlinks Effects in a better way by blending the site-related data and external link data.

seo crawl backlinks
SEO Crawl and Backlink Information

Lastly, thanks to OnCrawl’s Data Ingestion Module, you can import any kind of off-page SEO Information and Data to the OnCrawl’s System so that you can correlate different SEO Related Metrics and the Off-page Data of the website.

OnCrawl Pricing

OnCrawl is one of the most detailed, advanced, and prestigious SEO Crawlers on the planet. Despite this truth, I can’t say that their prices are too expensive but also I can’t say that OnCrawl has the best prices. It depends on your project and your aim. Below, you will see OnCrawl’s prices.

Pricing for SEO Crawls
Pricing for SEO Crawls.

OnCrawl has different prices for different SEO Projects according to their sizes or website amount. But, if you are a beginner and you want to learn more about OnCrawl, whenever you want, you can “book a demo” for free. The best thing is whichever package you chose, you have some unlimited advantages as below:

  • Unlimited Analysis
  • No Limitation for Data Upload
  • Data Scraping
  • Custom Dashboards
  • Proxy Server Usage
  • Project Sharing
  • CSV Integration
  • Crawl over Crawl Comparison Chance
  • Google Search Console, Google Analytics Integrations
  • Log File Analysis
  • API and BI Connectors
  • Javascript Crawling

Also, 49 Euro for a month for this kind of level SEO Analysis is a really generous offer. If you have a small agency, still you can crawl 500.000 URLs for a month for two different projects. Also, if you have a big agency, you can own OnCrawl for 4800 Euro for a year. Also, the OnCrawl team has strong support for customers, and also they have rich documentation. I believe that they will be your guide while using OnCrawl. And, their documentation can help you to understand advanced Technical SEO and Data Science for SEO.

Last Thoughts on OnCrawl and HolisticSEO

OnCrawl is actually a Holistic SEO tool. It monitors logs, integrates Google Search Console, Google Analytics, and more, segmentation a website according to its different features, uses N-Gram Analysis, hundreds of different variations of graphs, charts, and data blending methods to create SEO Insights.

OnCrawl also has an advanced SEO Report Visualizer and Automatizer. You can use Data Studio Exporter, PDF Report Exporter, and Custom Data Dashboard tool.

OnCrawl is also a Data Scientist for your SEO Projects and a Data Visualise. You can filter any kind of data for a website with just one click, you also can examine every URL for the same custom SEO Metrics.

Aggregation, Correlation, and Causation are connected to each other in terms of “understanding things”. OnCrawl has this type of understanding. And its prices are understandably convenient. So, I recommend you check this guideline, their documentation and give yourself a chance for seeing a different kind of SEO Vision.

Koray Tuğberk GÜBÜR

Leave a Comment

OnCrawl: The Most Prestigious Advanced Technical SEO Crawler

by Koray Tuğberk GÜBÜR time to read: 73 min
